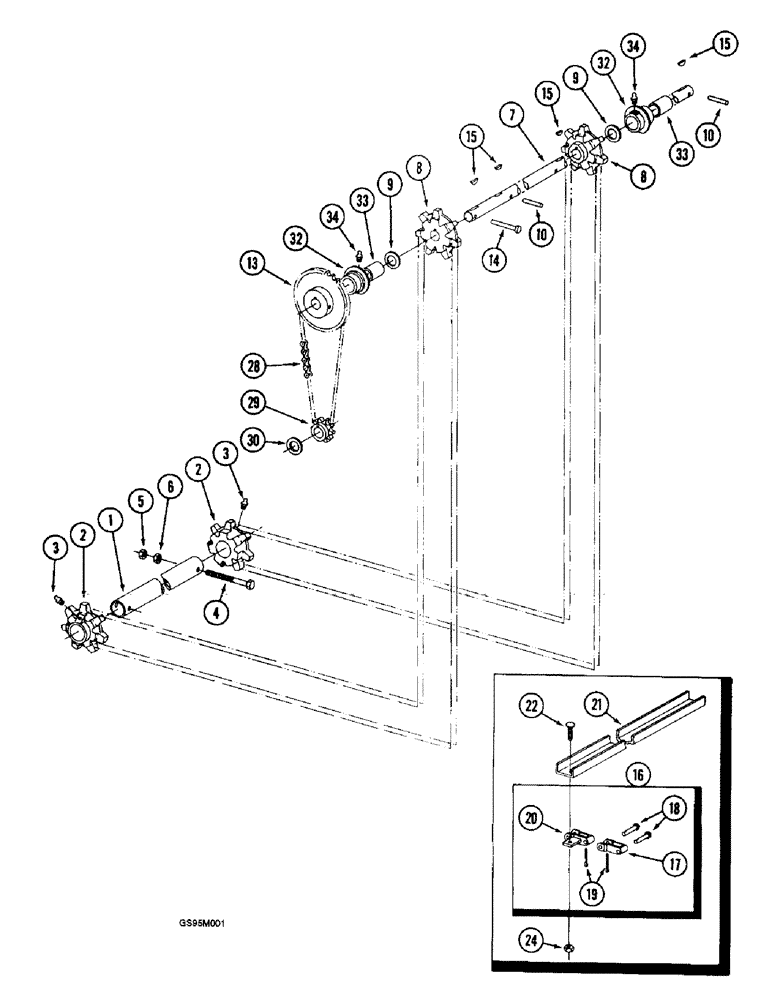

Запчасти Case IH 2055 (9C-32) - UNLOADING CONVEYOR AND DRIVE (15) - HANDLING SYSTEM

1

1260354C2

TUBE,48.26 mm OD, 1628 mm Length

PIPE - idler adjustment (replaces pipe 1260354C1)

1шт.

2

1270109C1

SPROCKET ASSY.

SPROCKET - idler, 7 teeth

4шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

4

1262728C2

BOLT,Hex, 3/8" x 6"

BOLT - hex, 3/8 NC x 6 inch

4шт.

5

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC, if used

4шт.

6

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

7

1260366C2

SHAFT

- conveyor drive

1шт.

8

1269910C2

SPROCKET ASSY.

SPROCKET - drive, 7 teeth

4шт.

9

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 3/64 inch

8шт.

10

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

headed (replaces pin 441015R1) 5/16" x 2 1/4", Coiled

4шт.

13

1260365C3

PINION

SPROCKET - drive, 12 teeth (replaces sprocket 1260365C2)

1шт.

14

38-12048

LOCK PIN,5/16" x 3", Slotted

Pin, (replaces pin 455184R1) 5/16" x 3", Slotted

1шт.

15

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

5шт.

16

1263072C93

CHAIN (AG)

CHAIN - conveyor, 1/2 length, replaces 1263072C92 chain, prior to P.I.N. JJC155091

8шт.

For complete chain order (2) 1263072C93; or 40 links of 821017C2 and 20 attaching links 821016C1.

1шт.

16

127910A1

CHAIN (AG),80 Links x 58.75mm = 4700mm

CHAIN - conveyor, 1/2 length, P.I.N. JJC155091 and after, 4 row wide and 5 row narrow

8шт.

For complete chain order (2) 127910A1; or 41 links of 821017C2 and 20 attaching links 821016C1.

1шт.

16

140154A1

CHAIN,88 Links x 58.75mm = 5170mm

- conveyor, 1/2 length, 5 row wide

8шт.

For complete chain order (2) 140154A1; or 55 links of 821017C2 and 22 attaching links 821016C1.

1шт.

17

821017C2

LINK,Chain

LINK ASSEMBLY - chain

1шт.

18

821369C1

PIN,7.79mm OD x 47.93mm L

- connecting

1шт.

19

432-88

COTTER PIN,1/8" x 1/2"

PIN, SPLIT (COTTER), , Used with 1263072C93 chain 1/8" x 1/2"

1шт.

19

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , Used with 127910A1 or 140154A1 chain 1/8" x 3/4"

1шт.

20

821016C1

LINK,Chain

LINK - attaching

1шт.

21

1263020C1

CONDUIT

CHANNEL - conveyor slat, 4 row wide and 5 row narrow use quantity of 40, 5 row wide uses quantity of 44 (40-44)

1шт.

22

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch, 2 used per channel

1шт.

24

231-1435

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC, 2 used per channel

1шт.

28

NSS

NOT SOLD SEPARAT

CHAIN - conveyor drive, models prior to P.I.N. JJC0155439 order 69 links of no. 60H chain, 1 offset link 1318D and connecting link 1786D; on models P.I.N. JJC0155439 and after, order 71 links of 141494A1, and 1 connecting link, 141493A1, from bulk rolls

1шт.

29

1260364C1

SPROCKET ASSY.

SPROCKET - drive, 10 teeth

1шт.

30

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch

1шт.

32

1278954C91

BEARING ASSY

ASSEMBLY - drive shaft

4шт.

33

1278956C1

BUSHING,34.95mm ID x 39.7mm OD x 63.75mm L

- bearing

1шт.

34

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.
