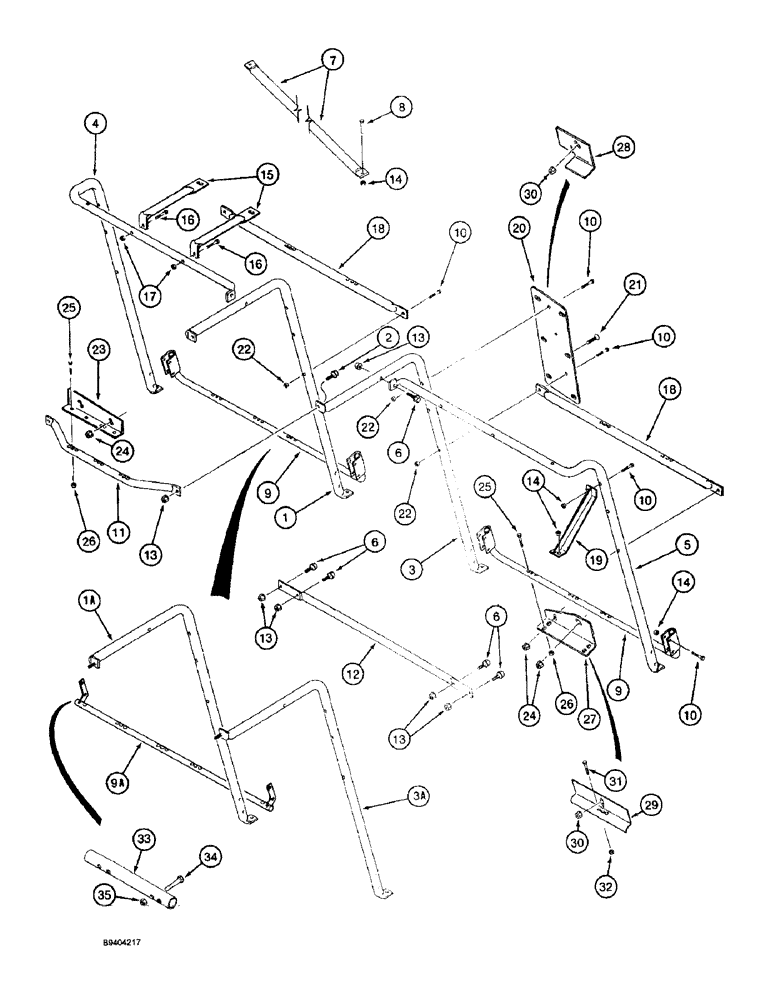

Запчасти Case IH 2055 (9C-26) - CONVEYOR CHUTE SUPPORTS (15) - HANDLING SYSTEM

1

1546360C2

SUPPORT TUBE

SUPPORT - tube, left-hand, if used, prior to P.I.N. JJC0155439 (replaces tube 1546360C1)

1шт.

1a

124361A1

TUBE

- support, left-hand, with stud at upper mounting hole, if used

1шт.

2

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Used with item 3 Hex Flg, 3/8"-16 x 1", Serr

1шт.

3

1546359C2

SUPPORT TUBE

SUPPORT - tube, right-hand, if used, prior to P.I.N. JJC0155439 (replaces support 1546359C1)

1шт.

3a

124362A1

TUBE

- support, right-hand, with stud at upper mounting hole, if used

1шт.

4

1546362C2

SUPPORT TUBE,1335, 850 mm Length

SUPPORT - left-hand tube, outer (replaces support 1546362C1)

1шт.

5

1546357C2

SUPPORT TUBE

TUBE - support, right-hand, outer (replaces tube 1546357C1)

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

6шт.

7

1546356C1

TUBE,31.75 mm OD, 1066 mm Length

- brace

1шт.

8

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

9

1984387C1

SUPPORT

- lower outer assembly bent, conveyor chute, if used

2шт.

9a

119618A2

SUPPORT

- lower outer assembly straight, conveyor chute

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

11

1546355C1

TUBE

- center pipe, upper

1шт.

12

1984388C1

SUPPORT TUBE,1180 mm Length

TUBE - pipe support

1шт.

13

231-5146

FLANGE NUT,3/8"-16

1шт.

14

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

15

1546358C1

SUPPORT TUBE,31.75 mm OD, 529 mm Length

TUBE - ladder support

2шт.

16

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

17

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

18

1546361C1

TUBE

- side pipe

2шт.

19

108341A1

GUSSET

- chute

1шт.

20

110991A1

PLATE

- conveyor pipe support, if used ADDITIONAL 4 ROW PARTS - P. I. N. JJC0139015 - JJC0155438

1шт.

21

440-13840

SCREW,Cross Pan Hd, 3/8"-16 x 2 1/2"

- machine, pan Phillips, 3/8 NC x 2-1/2 inch ADDITIONAL 4 ROW PARTS - P. I. N. JJC0139015 - JJC0155438

1шт.

22

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC ADDITIONAL 4 ROW PARTS - P. I. N. JJC0139015 - JJC0155438

2шт.

23

111004A1

ANGLE

- conveyor pipe support, center, if used ADDITIONAL 4 ROW PARTS - P. I. N. JJC0139015 - JJC0155438

1шт.

24

231-5146

FLANGE NUT,3/8"-16

Additional 4 row parts - P. I. N. JJC0139015 - JJC0155438 Flg, USR, 3/8"-16

4шт.

25

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Additional 4 row parts - P. I. N. JJC0139015 - JJC0155438 Hex, 1/4"-20 x 2", G5

4шт.

26

230-4114

NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC ADDITIONAL 4 ROW PARTS - P. I. N. JJC0139015 - JJC0155438

4шт.

27

110992A1

ANGLE

- conveyor pipe support, outer, if used ADDITIONAL 4 ROW PARTS - P. I. N. JJC0139015 - JJC0155438

1шт.

28

144286A1

ANGLE

- support, outer, conveyer pipe, if used ADDITIONAL 4 ROW PARTS - P. I. N. JJC0155439 AND AFTER

1шт.

29

127588A1

CLAMP

- chute, conveyer pipe, if used ADDITIONAL 4 ROW PARTS - P. I. N. JJC0155439 AND AFTER

2шт.

30

231-5146

FLANGE NUT,3/8"-16

Additional 4 row parts - P. I. N. JJC0155439 and after Flg, USR, 3/8"-16

3шт.

31

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Additional 4 row parts - P. I. N. JJC0155439 and after Hex, 1/4"-20 x 2", G5

2шт.

32

230-4114

NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC ADDITIONAL 4 ROW PARTS - P. I. N. JJC0155439 AND AFTER

2шт.

33

120376A1

TUBE,25.4 mm OD, 255 mm Length

- skip row extension AND 5 ROW WIDE

2шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Skip and 5 row wide Hex, 3/8"-16 x 2", G5

2шт.

35

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC SKIP AND 5 ROW WIDE

2шт.
