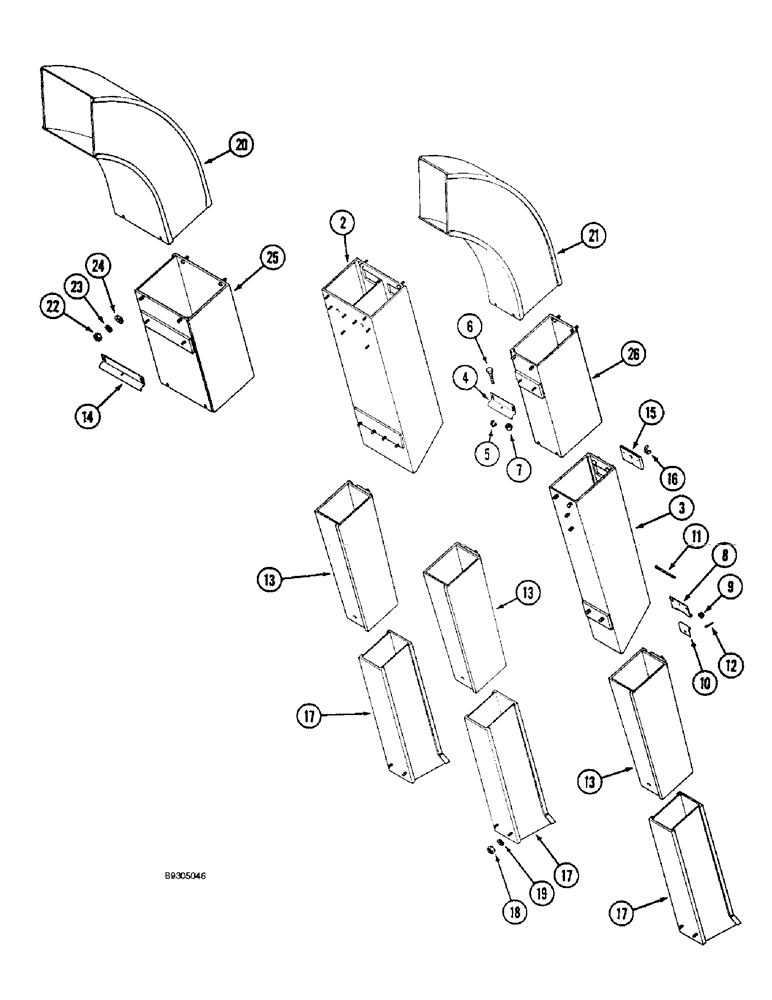

Запчасти Case IH 2055 (9C-24) - CONVEYOR CHUTES, CENTER, PRIOR TO P.I.N. JJC0155439 (15) - HANDLING SYSTEM

2

1349945C2

CHUTE ASSY.

CHUTE - conveyor, double

1шт.

3

1990240C2

CHUTE ASSY.

CHUTE - upper single, center, 5 row narrow only

2шт.

4

1990253C1

CLAMP

- hinge, single, 5 row narrow only

4шт.

5

231-5146

FLANGE NUT,3/8"-16

5 row narrow only Flg, USR, 3/8"-16

8шт.

6

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

5 row narrow only Hex, 1/4"-20 x 2", G5

4шт.

7

230-4114

NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC, 5 row narrow only

4шт.

8

1349843C1

HINGE

- female, upper, 5 row narrow only

2шт.

9

231-5146

FLANGE NUT,3/8"-16

5 row narrow only Flg, USR, 3/8"-16

4шт.

10

1270014C1

HINGE

- short, male, 4 used on 4 row wide

8шт.

11

1349860C1

PIN,7.94mm OD x 129mm L

- hinge, 4 used on 4 row wide

8шт.

12

432-816

COTTER PIN,1/8" x 1"

4 used on 4 row wide 1/8" x 1"

8шт.

13

1349938C1

CHUTE

- conveyor, female, 2 used on 4 row wide

4шт.

14

1990354C1

FASTENER

CLAMP - double pipe

2шт.

15

1983180C1

COVER

- duct access, 8 used on 4 row wide

10шт.

16

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC, 8 used on 4 row wide

10шт.

17

1349934C1

CHUTE (DOWNWARD)

CHUTE - conveyor, male, 2 used on 4 row wide

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4 used on 4 row wide 3/8"-16, G5

8шт.

19

492-11038

LOCK WASHER,3/8"

4 used on 4 row wide 3/8"

8шт.

20

1349832C2

SPOUT, DISCHARGE

HOOD - chute, double center (replaces hood 1349832C1)

1шт.

21

1990234C2

SPOUT, DISCHARGE

HOOD - single center, 5 row narrow (replaces hood 1990234C1)

2шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, 4 used on 4 row wide

12шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , 4 used on 4 row wide 5/16"

12шт.

24

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch, 4 used on 4 row wide

12шт.

25

1349867C1

CHUTE ASSY.

CHUTE - extension, long double, 26 inch

1шт.

25a

1984176C2

CHUTE ASSY.

CHUTE - extension, short double, 15-1/4 inch, not shown

2шт.

26

1990237C1

CHUTE ASSY.

CHUTE - extension, long single, 26 inch

2шт.

26a

1546245C2

CHUTE (DOWNWARD)

CHUTE - extension, short single, 15-1/4 inch, not shown

2шт.
