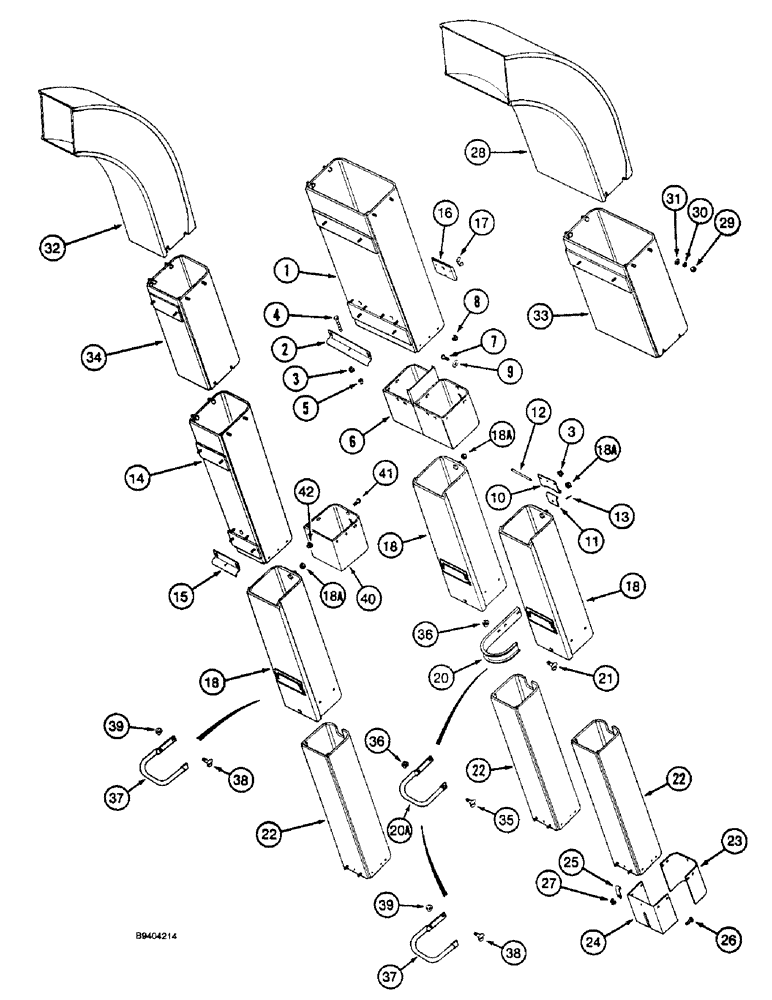

Запчасти Case IH 2055 (9C-22) - CONVEYOR CHUTES, OUTER, PRIOR TO P.I.N. JJC0155439 (15) - HANDLING SYSTEM

1

1349847C2

CHUTE ASSY.

CHUTE - outer, upper double, no longer available, order 127871A1 chute, 127588A1 clamp, and 127589A1 clamp, see page 9C-23A

2шт.

2

1990354C1

FASTENER

CLAMP - double pipe

4шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

12шт.

5

230-4114

NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

12шт.

6

1349872C1

HOUSING

DIVIDER - double chute, outer

2шт.

re it no. 6 - 1349872c1 - RIVETS USED IN THIS PART IS 1990251C1 & WASHER IS 495-21031. ph 9/23/97

1шт.

7

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

9

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

1шт.

10

1349843C1

HINGE

- female, upper, 16 used on 4 row wide

12шт.

11

1270014C1

HINGE

- short, male

12шт.

12

1349860C1

PIN,7.94mm OD x 129mm L

- hinge

12шт.

13

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

12шт.

14

1349844C2

CHUTE ASSY.

CHUTE - upper single, outer

2шт.

15

1984393C1

CLAMP

- hinge, single pipe

4шт.

16

1983180C1

COVER

- duct access, 8 used on 4 row wide

10шт.

17

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC, 8 used on 4 row wide

10шт.

18

1984139C3

CHUTE

- female, outer (replaces chutes 1984139C1 and 1984139C2)

6шт.

18a

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

6шт.

20

1984138C1

BRACKET

- air hose, no longer available, order (4) of 123567A1, item 20A and (2) of 123569A1, item 37

6шт.

20a

123567A1

SUPPORT

BRACKET - air hose, outer, three mounting holes

4шт.

21

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

12шт.

22

1349803C1

CHUTE

- male, outer

6шт.

23

131427A1

GUARD

TRANSITION - conveyor chute, lower front (replaces transition 1546042C1)

6шт.

24

131428A1

GUARD

TRANSITION - conveyor chute, lower rear (replaces transition 1546043C1)

6шт.

25

1984343C1

HOOK

- air pipe, 8 used in 4 row wide

10шт.

26

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

- slotted truss head, 5/16 NC x 1-1/4 inch

10шт.

27

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC, 8 used in 4 row wide

10шт.

28

1349829C1

SPOUT, DISCHARGE

HOOD - chute, double outer

2шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

16шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

31

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

16шт.

32

1349825C1

SPOUT, DISCHARGE

HOOD - chute, single outer

2шт.

33

1349821C2

CHUTE ASSY.

CHUTE - extension, long double, 24-3/4 inch, outer (replaces chute 1349821C1)

2шт.

33a

1984170C2

CHUTE ASSY.

CHUTE - extension, short double, 15-1/4 inch, outer, not shown

2шт.

34

1349818C2

CHUTE ASSY.

CHUTE - extension, long single, 24-3/4 inch, outer

2шт.

34a

1984173C2

CHUTE ASSY.

CHUTE - extension, short single, 15-1/4 inch, outer, not shown

2шт.

35

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

12шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

37

123569A1

SUPPORT

BRACKET - air hose, lower, two mounting holes

2шт.

38

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

40

1990351C1

HOUSING

TRANSITION - upper

2шт.

41

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

14шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

14шт.
