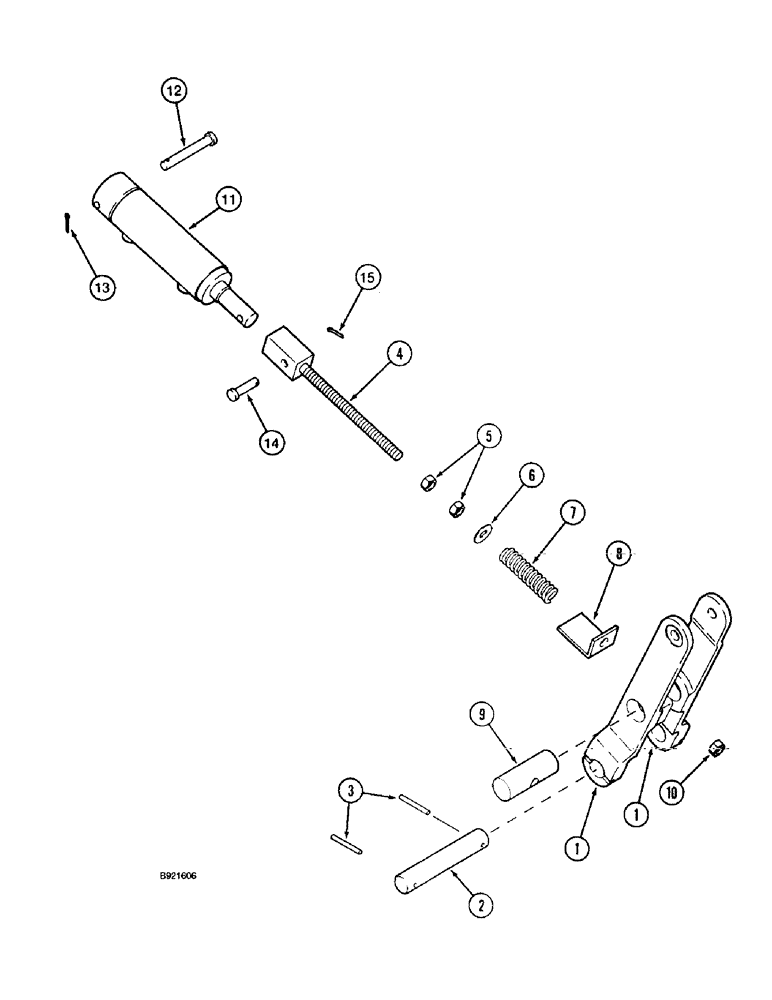

Запчасти Case IH 2055 (9C-20) - REAR FAN PULLEY LINKAGE (15) - HANDLING SYSTEM

1

1990156C1

ARM

- fan pulley idler

1шт.

2

1990151C1

SHAFT,25.4mm OD x 135mm L

- fan idler pivot

1шт.

Ref. 2 - This is incorrectly illustrated. The pin has only one (1) hole in it (11/22/99 Tech).

1шт.

3

438-11232

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

2шт.

4

1990059C1

STEM

ROD - fan idler

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

7

1990062C1

SPRING

- fan idler

1шт.

8

1990058C1

ANGLE

- spring gauge

1шт.

9

1990152C1

PIN,31.75mm OD x 90mm L

- pivot rod

1шт.

10

231-5348

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC, if used

1шт.

10

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, , If used Flg, 1/2"-13

1шт.

11

133405C92

CYLINDER

ASSEMBLY - fan engagement, 2 (51) ID x 2-1/2 inch (63.5 mm) stroke, parts list page 8-46

1шт.

11

87337239R

REMAN-HYD CYLINDER

2055 CASE IH COTTON EXPRESS COTTON PICKER, Assembly fan engagement, 2 (51) ID x 2-1/2 inch (63.5 mm) stroke (4/93-), Reman for New PN 133405C92

1шт.

11

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

12

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

1шт.

13

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

14

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

PIN, CLEVIS, , Hardened (Replaces pin 23304R1) 3/8" x 1 9/16"

1шт.

15

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.
