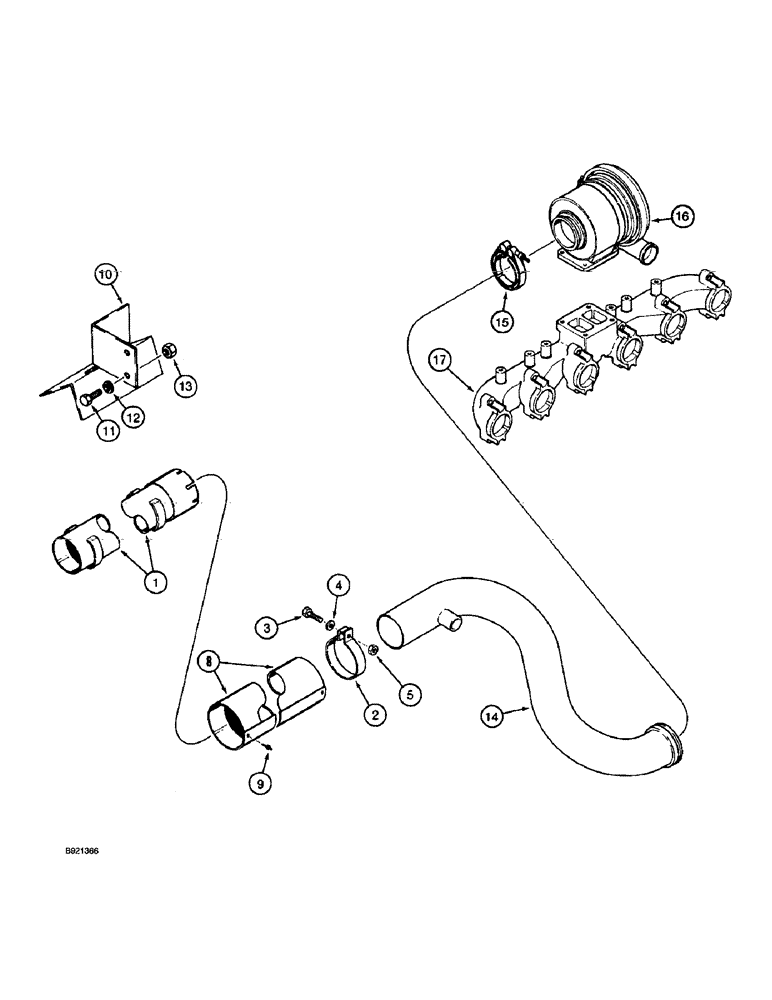

Запчасти Case IH 2055 (2-16) - EXHAUST SYSTEM (01) - ENGINE

1

1988786C3

EXHAUST SYSTEM PIPE

PIPE - exhaust (Replaces pipe 1988786C2)

1шт.

2

1321280C2

CLAMP,92mm

- exhaust pipe (Replaces clamp 1321280C1)

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, if used

1шт.

3

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex, 3/8 NC x 1-1/2 inch, if used

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

1шт.

5

231-5146

FLANGE NUT,3/8"-16

If used Flg, USR, 3/8"-16

1шт.

8

1988788C1

GUARD

SHIELD - tube, exhaust

1шт.

9

201946C1

RIVET,Pop, 3/16" x .325"

- mandrel, steel, 3/16 dia x 1/4 inch

7шт.

10

86978C1

GUARD

SHIELD - pipe, exhaust

1шт.

11

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

14

1998872C1

TUBE,88.9 mm OD

- exhaust

1шт.

15

A170807

CLAMP,102mm ID

exhaust tube retaining, T bolt

1шт.

16

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, parts list page 2-22

1шт.

17

J906741

MANIFOLD

- exhaust, see page 2-18

1шт.
