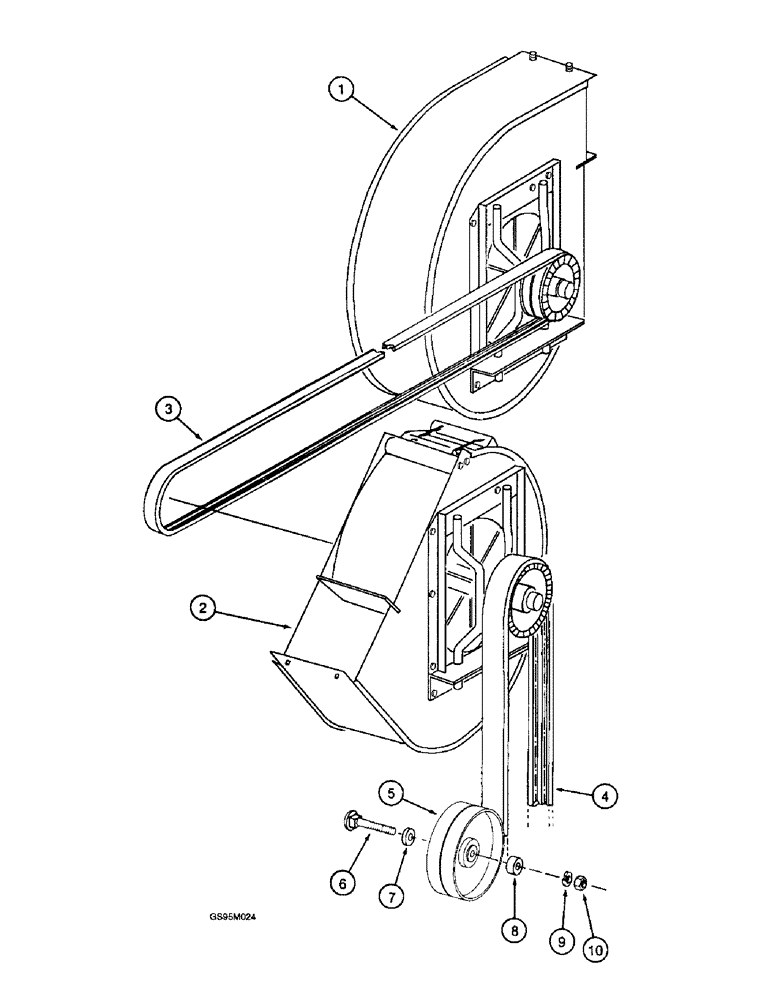

Запчасти Case IH 2055 (9C-10) - FAN DRIVE (15) - HANDLING SYSTEM

1

1345030C1

FAN

ASSEMBLY - front, parts list pages 9C-11A - 9C-12

1шт.

2

1345031C1

FAN

ASSEMBLY - rear, parts list page 9C-14

1шт.

3

1338328C1

V-BELT,12.45 mm W x 1223.87 mm L

Fan Drive, Front 12.45 mm W x 1223.87 mm L

1шт.

4

1546117C2

V-BELT,1.97" W x 76.50" L, 3 Ribs

Drive, Replaces 1546117C1 1.97" W x 76.50" L, 3 Ribs

1шт.

5

1990198C1

PULLEY

- fan engage idler, 10 inch diameter

1шт.

6

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

7

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

- pipe, 1/2 ID x 1/2 inch (replaces spacer 622535R1)

1шт.

8

25847D

SPACER,1/2" X-Strng Pipe x 11/16"

- 1/2 x 11/16 inch

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
