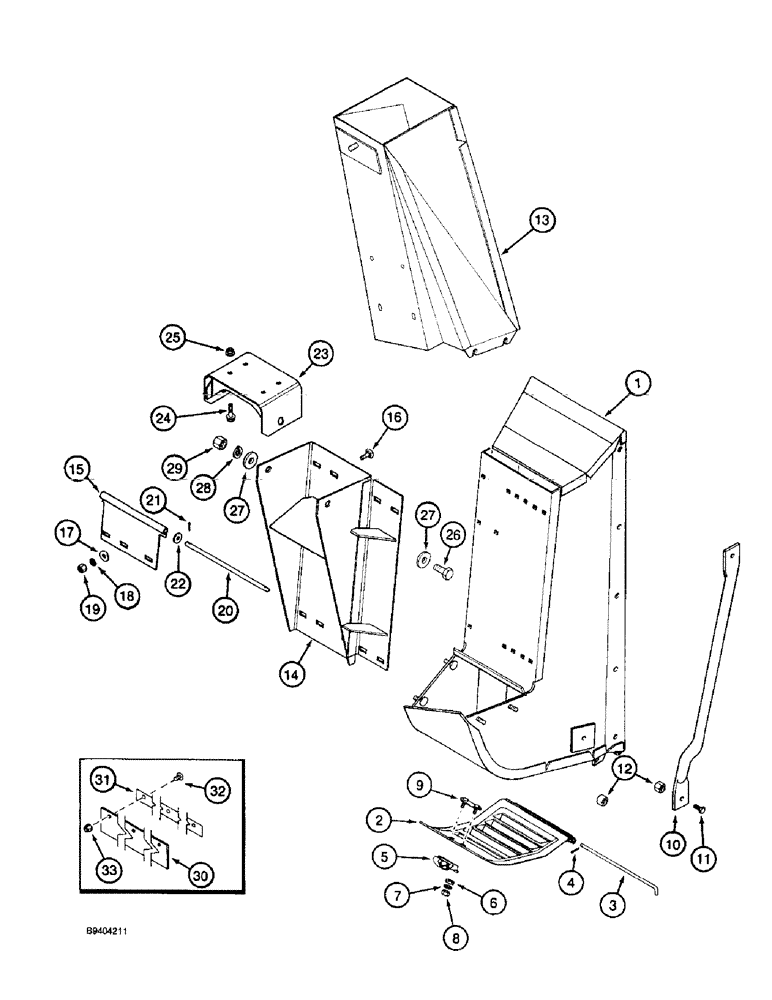

Запчасти Case IH 2055 (9C-09A) - REAR DRUM OUTLET, DRUM NUMBER 4, 5 ROW WIDE (15) - HANDLING SYSTEM

1

131715A1

HOUSING

OUTLET - drum, rear, no. 4

1шт.

2

132926A1

TRAP DOOR

DOOR - outlet access, rear

1шт.

3

1984110C2

PIN,6.25mm OD

- hinge

1шт.

4

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

5

1333780C1

LATCH

- access door

1шт.

5a

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, no. 10 NF x 1/2 inch

2шт.

6

495-31022

WASHER,#10

2шт.

7

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

8

225-14210

NUT,#10-32

2шт.

9

119069A1

PLATE

- latch, access door

1шт.

Part # 119069a1 - see Update 98-20 for Kit information

1шт.

10

133722A1

SUPPORT

BRACE - door support

1шт.

11

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

13

1984090C2

EXTENSION

- outlet, rear drum, no. 4

1шт.

14

1984168C1

CHANNEL

- outlet support, rear

1шт.

15

1984151C1

FIXED HINGE

HINGE - rear door support

1шт.

16

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

6шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

20

1984153C1

STEM

ROD - outlet support

1шт.

21

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

23

1990466C2

SUPPORT

- rear outlet adjustment

1шт.

24

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

4шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

26

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

2шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

28

392-21050

LOCK WASHER,1/2"

1/2"

2шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

30

133017A1

SEALING STRIP

SEAL - outlet, no. 4

1шт.

31

133018A1

LARGE PLATE

PLATE - backup, outlet seal

1шт.

32

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

5шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.
