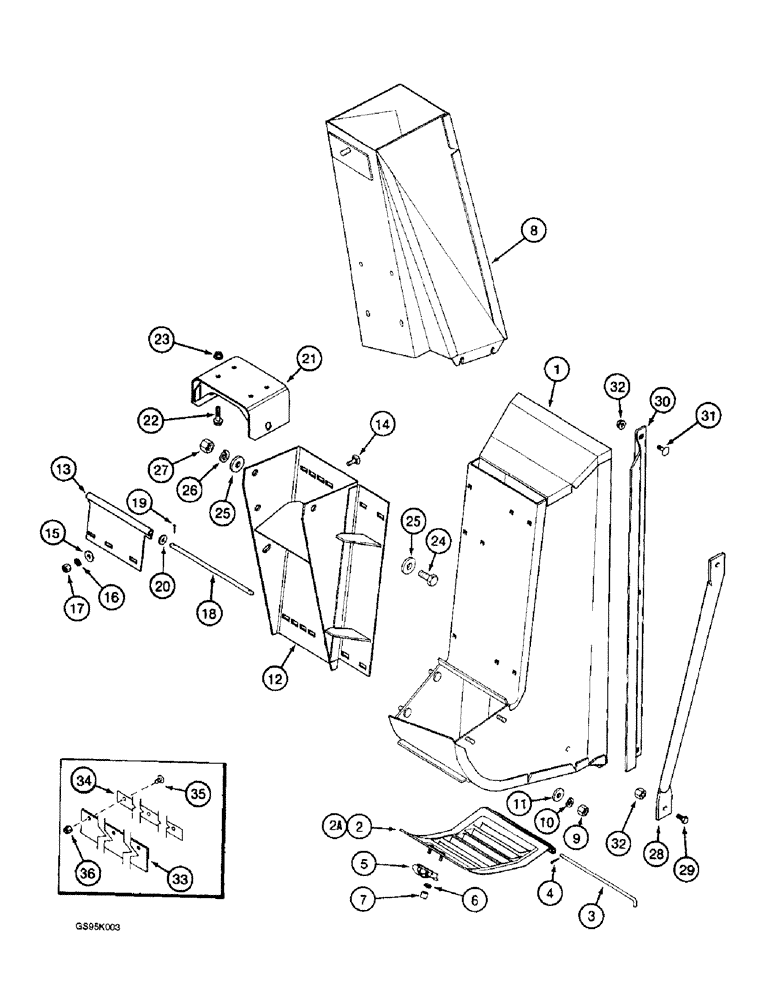

Запчасти Case IH 2055 (9C-08) - REAR DRUM OUTLET, DRUM NUMBER 4, 5 ROW NARROW (15) - HANDLING SYSTEM

1

1984083C4

OUTLET

- rear drum, no. 4 (replaces outlet 1984083C3)

1шт.

2

1984118C3

INSPECTION DOOR

DOOR - rear outlet access, 5 louvers, if used

1шт.

2a

119753A1

TRAP DOOR

DOOR - access, rear outlet, 4 louvers, if used

1шт.

3

1984110C2

PIN,6.25mm OD

- hinge

1шт.

4

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

5

1333780C1

LATCH

- access door

1шт.

5a

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, no. 10 NF x 1/2 inch

2шт.

6

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6a

495-31022

WASHER,#10

4шт.

7

225-14210

NUT,#10-32

2шт.

8

1984090C2

EXTENSION

- rear drum outlet, no. 4

1шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

12

1984168C3

SUPPORT

CHANNEL - outlet support, rear (replaces channel 1984168C1)

1шт.

13

1984151C2

HINGE

- rear door support (replaces 1984151C1 hinge)

1шт.

14

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

6шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

18

1984153C1

STEM

ROD - outlet support

1шт.

19

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

20

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

21

1990466C2

SUPPORT

- rear outlet adjustment

1шт.

22

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

24

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex 1/2 NC x 3/4 inch

2шт.

25

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

26

392-21050

LOCK WASHER,1/2"

1/2"

2шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

28

1984349C1

SUPPORT

BRACE - door support

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

30

1984212C1

DEFLECTOR

- trash post

1шт.

31

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

3шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

33

1546051C2

SEALING STRIP

SEAL - outlet, no. 4

1шт.

34

1546224C1

LARGE PLATE

PLATE - backup, outlet seal

1шт.

35

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

5шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.
