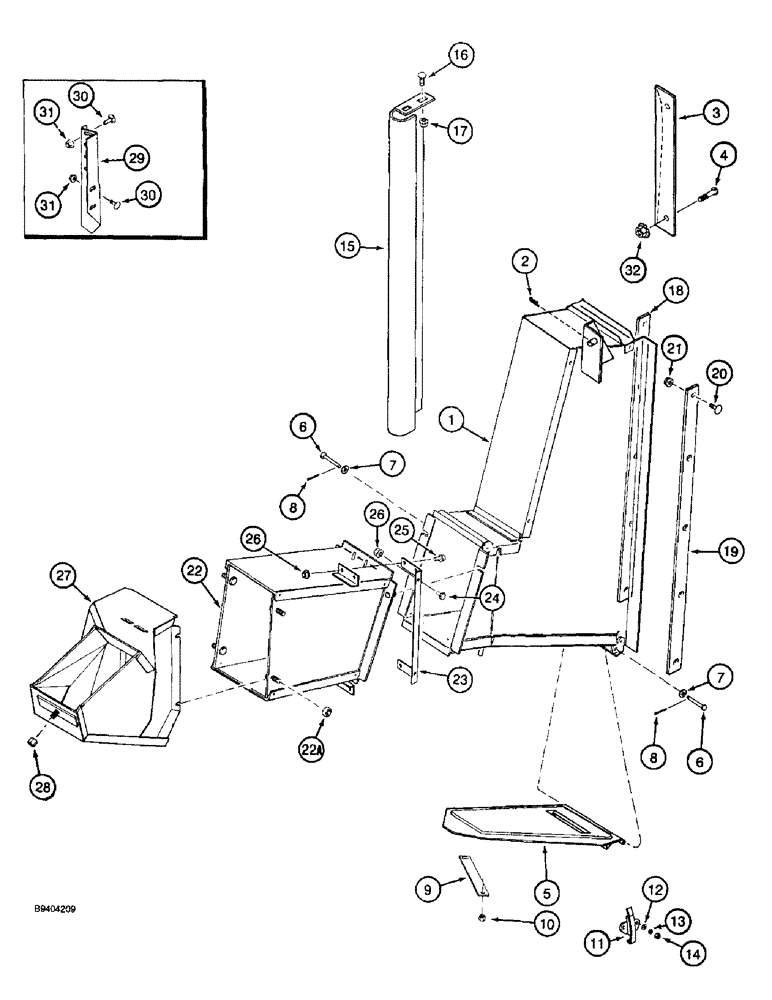

Запчасти Case IH 2055 (9C-07A) - FRONT DRUM OUTLET, 5 ROW WIDE, DRUM NO. 2 OR 3 (15) - HANDLING SYSTEM

1

131070A1

SHEET

OUTLET - no. 2, front

1шт.

2

586591R1

COTTER PIN

PIN - hair, 1/8 inch

1шт.

3

114925A1

LARGE PLATE

ANGLE - outlet latch

1шт.

4

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

2шт.

5

132940A1

TRAP DOOR

DOOR - access

1шт.

6

439-1440

HEADED PIN,1/4" x 2 1/2"

PIN - headed, 1/4 x 2-1/2 inch, grade 2

2шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

8

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

9

1349890C1

LATCH

- outlet door

1шт.

10

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

11

1333780C1

LATCH

- access door

1шт.

12

495-31022

WASHER,#10

2шт.

13

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

225-14210

NUT,#10-32

2шт.

15

131616A1

SHEET

SHIELD - doffer post, no. 2

1шт.

16

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

18

1546051C2

SEALING STRIP

SEAL - outlet, no. 3

1шт.

19

1546224C1

LARGE PLATE

PLATE - backup, outlet seal, no. 3

1шт.

20

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

10шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

22

129595A2

EXTENSION

- outlet

1шт.

22a

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

23

118909A1

SUPPORT

BRACKET - extension

1шт.

24

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

25

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

27

1984042C2

HOUSING

DUCT - rear section

1шт.

28

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

29

1546006C2

SUPPORT

- duct, no. 3

1шт.

30

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

4шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.
