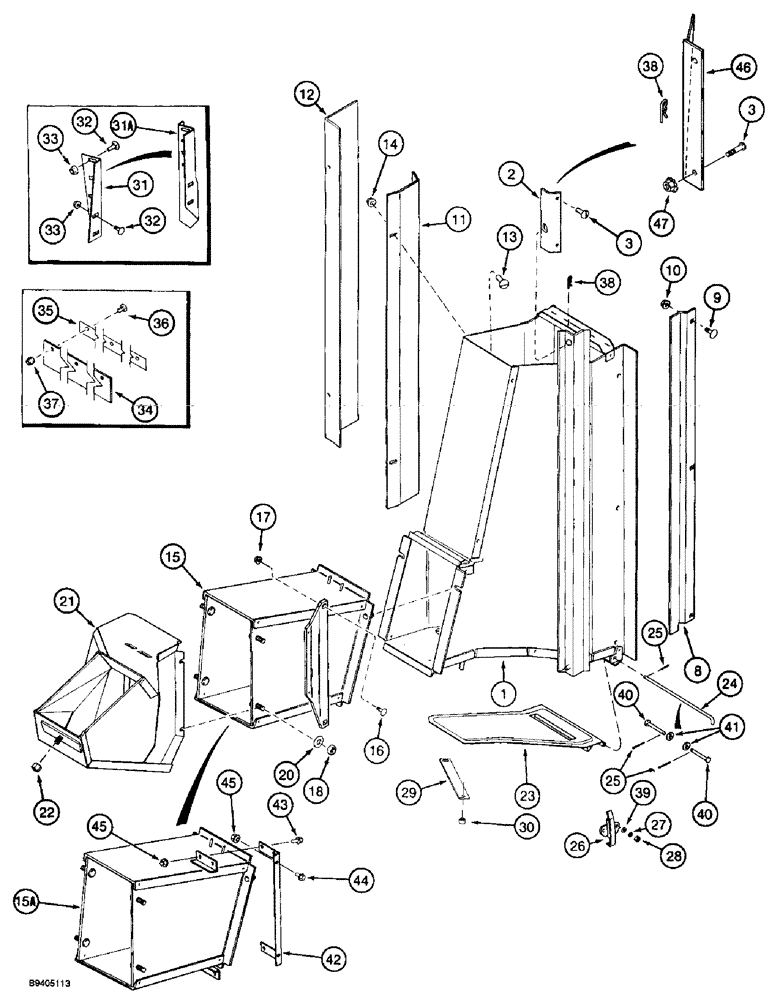

Запчасти Case IH 2055 (9C-06) - FRONT DRUM OUTLET, 5 ROW NARROW, DRUM NO. 2 OR 3 (15) - HANDLING SYSTEM

1

1984446C6

HOUSING

OUTLET - drum, no. 2, front (replaces 1984446C5 outlet)

1шт.

2

1984461C2

ANGLE

- outlet latch, if used

1шт.

3

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

2шт.

8

1984471C1

DEFLECTOR

- trash post, no. 2

1шт.

9

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

3шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

11

1984455C2

ANGLE

- trash opening

1шт.

12

1984470C2

ANGLE

- trash opening, inner, no. 2

1шт.

13

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

15

1984465C2

EXTENSION

- outlet, includes welded-on side bracket, no longer available, order 129595A2 extension, item 15A and 118909A1 bracket, item 42

1шт.

15a

129595A2

EXTENSION

- outlet, without welded-on side bracket (replaces extension 1984465C3)

1шт.

16

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

4шт.

17

231-5146

FLANGE NUT,3/8"-16

4шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

21

1984042C2

HOUSING

DUCT - rear section (replaces duct 1984042C1)

1шт.

22

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

23

1349891C4

TRAP DOOR

DOOR - access (replaces door 1349891C3)

1шт.

24

1984110C2

PIN,6.25mm OD

- hinge, door, used with 1349891C3 door

1шт.

25

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1-2шт.

26

1333780C1

LATCH

- access door

1шт.

27

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

28

225-14210

NUT,#10-32

2шт.

29

1349890C1

LATCH

- outlet door

1шт.

30

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

31

1546006C1

ANGLE

SUPPORT - duct, 5 row narrow, no. 2, if used

1шт.

31a

1546006C2

SUPPORT

- duct, 5 row narrow, no. 3, if used

1шт.

32

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

4шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

34

1546051C2

SEALING STRIP

SEAL - outlet, no. 3

1шт.

35

1546224C1

LARGE PLATE

PLATE - backup, outlet seal, no. 3

1шт.

36

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

5шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

38

586591R1

COTTER PIN

PIN - hair, 1/8 inch

1шт.

39

495-31022

WASHER,#10

2шт.

40

439-1440

HEADED PIN,1/4" x 2 1/2"

PIN - headed, 1/4 x 2-1/2 inch, grade 2, used with 1349891C4 door, item 23, if used

2шт.

41

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), If used 1/4", SAE

1шт.

42

118909A1

SUPPORT

BRACKET - extension, used with 129595A2 or 1984465C3 extension, item 15A, if used

1шт.

43

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, if used

4шт.

44

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, if used

2шт.

44

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch, If used

2шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, if used

6шт.

46

1546254C1

ANGLE BAR

ANGLE - access cover, outlet latch, if used

1шт.

47

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

If used Flg, USR, 1/4"-20

2шт.
