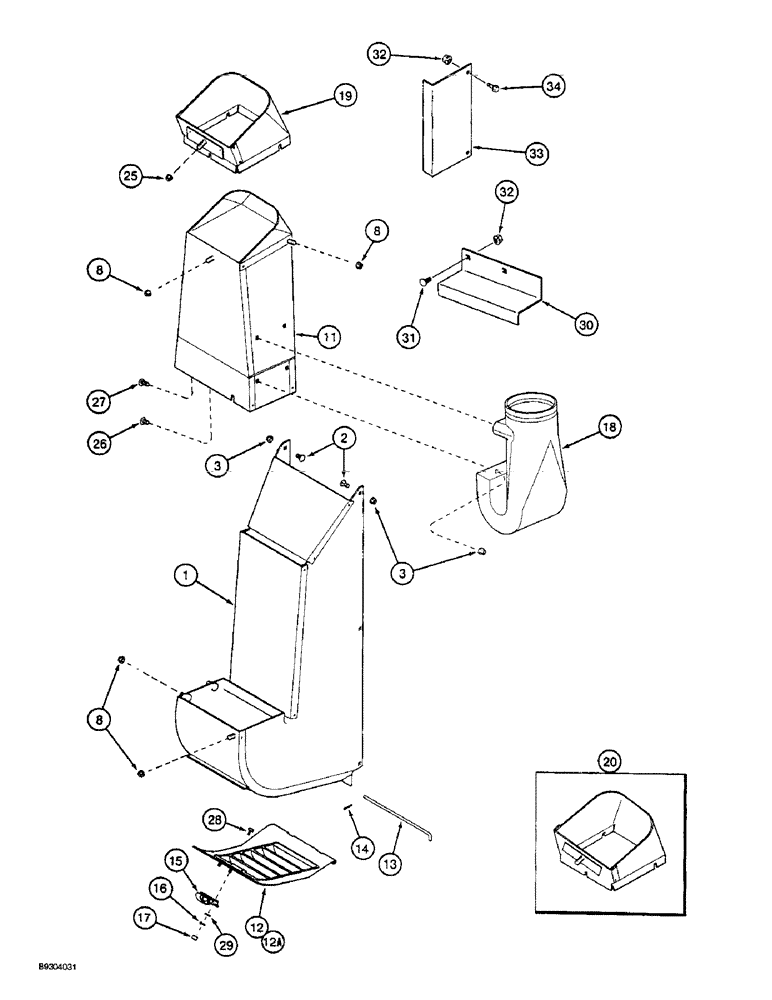

Запчасти Case IH 2055 (9C-04) - REAR DRUM OUTLETS (15) - HANDLING SYSTEM

1

182305A1

HOUSING

OUTLET - rear drum, standard, shown (replaces outlet 1349896C2)

1шт.

1

1984076C4

HOUSING

OUTLET - rear drum, 4 row wide and 5 row narrow, no. 3 (replaces 1984076C2 and 1984076C3)

1шт.

2

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

5шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

11

1349969C1

CHUTE ASSY.

EXTENSION - rear drum outlet, 5 row narrow or 5 row wide, no. 2

1шт.

11

1988640C1

HOUSING

EXTENSION - rear drum outlet, 4 row wide, no. 2

1шт.

11

118747A2

HOUSING

EXTENSION - outlet, rear drum, 4 row, no. 1 and no. 4, 5 row, no. 1 and no. 5

1шт.

11

1988655C1

CHUTE ASSY.

EXTENSION - rear drum outlet, 4 row wide, no. 3

1шт.

11

1984095C1

HOUSING

EXTENSION - rear drum outlet, 5 row narrow or 5 row wide, no. 3

1шт.

12

1984118C3

INSPECTION DOOR

DOOR - rear outlet access, 5 louvers, replaces 1984118C1 and 1984118C2 door, if used

1шт.

REF#12 & 12A BOTH ARE NOW WELDED ASSY,FORMERLY WERE PLASTIC.

1шт.

12a

119753A1

TRAP DOOR

DOOR - access, rear outlet, 4 louvers, if used

1шт.

13

1984110C2

PIN,6.25mm OD

- hinge, replaces 1984110C1

1шт.

14

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

15

1333780C1

LATCH

- access door

1шт.

16

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

17

225-14210

NUT,#10-32

2шт.

18

1349941C2

NOZZLE INJECTION

NOZZLE - drum outlet, rear, short

1шт.

19

1990497C1

HOUSING

TRANSITION - straight, drum outlet, 4 row wide, no. 2 and no. 4, 5 row narrow, no. 2 and no. 5, shown

1шт.

IF LOOKING FOR RUBBER BOOT THAT GOES TO REF #19 - PART NUMBER IS 1990351C1. HW.

1шт.

20

1545953C1

HOUSING

TRANSITION - angles, drum outlet, 4 row wide, no. 1, 5 row narrow, no. 1

1шт.

25

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

27

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

28

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, no. 10 NF x 1/2 inch

2шт.

29

495-31022

WASHER,#10

2шт.

30

119057A1

SUPPORT

BRACKET - extension support, 4 row, no. 3, if used

1шт.

31

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, , If used Short NK, 5/16"-18 x 1/2", G5, Full Thd

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, if used

4шт.

33

119058A1

SUPPORT

ANGLE - extension support, 5 row, no. 4, if used

1шт.

34

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, if used

2шт.
