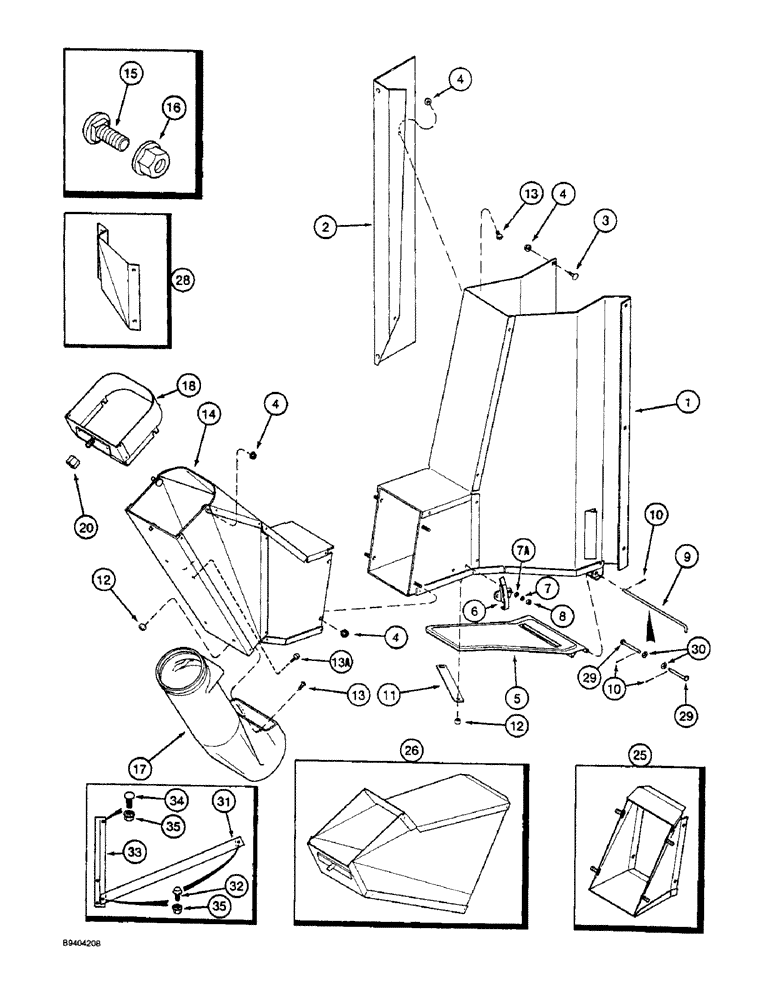

Запчасти Case IH 2055 (9C-02) - FRONT DRUM OUTLETS (15) - HANDLING SYSTEM

1

1349886C3

HOUSING

OUTLET ASSEMBLY - front drum, used on all except 5 row narrow, no. 2

1шт.

2

NSS

NOT SOLD SEPARAT

ANGLE - trash, front outlet, used on all except 5 row narrow, no. 2

1шт.

3

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

6шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

5

1349891C4

TRAP DOOR

DOOR - access, outlet, with two short pin retainers (replaces 1349891C3 door, with one long pin retainer)

1шт.

6

1333780C1

LATCH

- access door

1шт.

7

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

7a

495-31022

WASHER,#10

2шт.

8

225-14210

NUT,#10-32

2шт.

9

1984110C2

PIN,6.25mm OD

- hinge, used with 1349891C3 door, if used

1шт.

10

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1-2шт.

11

1349890C1

LATCH

- outlet door

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, nozzle, if used

1шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 NC, if used

1шт.

13

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

13a

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

14

1349927C2

HOUSING

DUCT - front outlet, 4 row wide, no. 1 and 4, 5 row narrow, no. 1, 4 and 5, shown

1шт.

14

1349962C2

HOUSING

DUCT - front outlet, 5 row narrow, no. 3

1шт.

15

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

17

1984189C2

NOZZLE

- front outlet, long, not used on no. 2 drum, 5 row

1-2шт.

18

1546036C1

ADAPTER

- front outlet extension, 4 row wide, no. 1 and 3, 5 row narrow, no. 1 and 4, shown

1шт.

18a

1546039C1

HOUSING

ADAPTER - front outlet extension, 4 row wide, no. 4, 5 row narrow, no. 5, not shown

1шт.

20

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

25

1988707C2

GUARD

CONNECTOR - front outlet, 4 row wide, no. 2 and 3

1шт.

26

1988802C2

GUARD

EXTENSION - front outlet, 4 row wide, no. 2, shown

1шт.

26

1988712C2

EXTENSION

EXTENSION - dront outlet, 4 row wide, no. 3

1шт.

28

1988717C1

SUPPORT

BRACKET - outlet mounting, 4 row wide, no. 2 and 3

1шт.

29

439-1440

HEADED PIN,1/4" x 2 1/2"

PIN - headed, 1/4 x 2-1/2 inch, grade 2, used with 1349891C4 door, item 5, which has a shorter pin retainer, if used

2шт.

30

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), If used 1/4", SAE

1шт.

31

1546257C1

SUPPORT

STRAP - Outlet, No. 2, 4 Row, Front, if used

1шт.

31

1546259C1

SUPPORT

STRAP - Outlet, No. 3, 4 Row, Front, if used

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, if used

2шт.

33

1546255C3

ANGLE BAR

ANGLE - outlet support, no. 2, 4 row, front, if used

1шт.

33

1546258C1

ANGLE BAR

ANGLE - outlet support, no. 3, 4 row, front, if used

1шт.

34

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, , If used Short NK, 5/16"-18 x 1/2", G5, Full Thd

4шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, if used

6шт.
