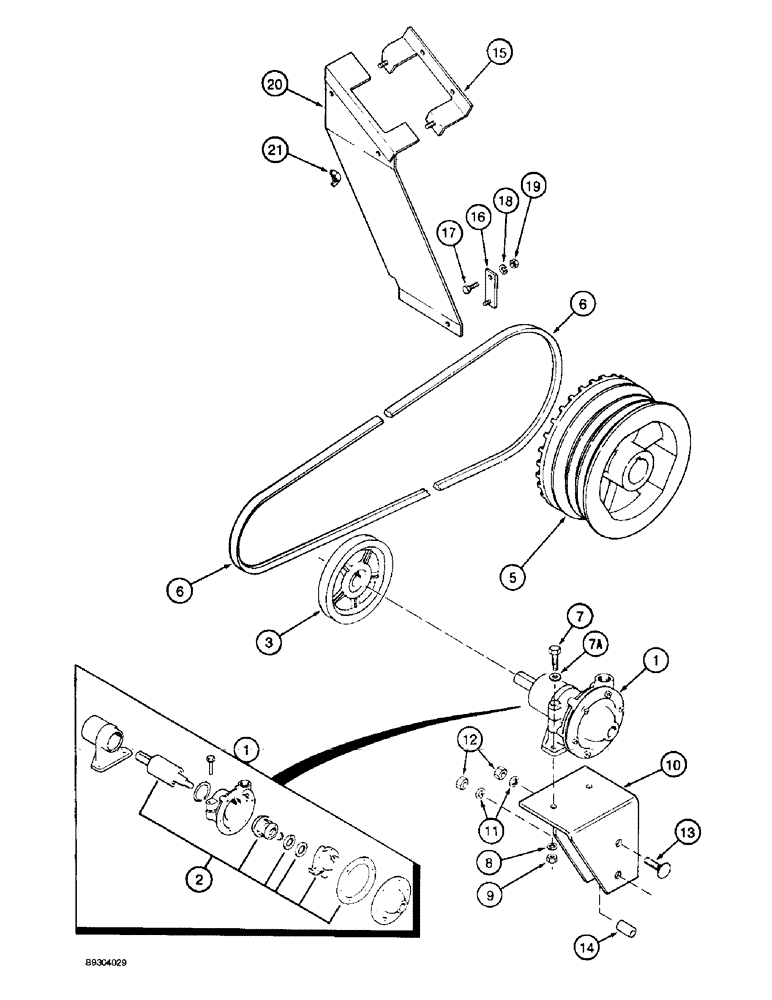

Запчасти Case IH 2055 (9B-14) - WATER PUMP, PULLEY AND BELT (14) - WATER SYSTEM

1

87030C1

PUMP, WATER

PUMP ASSEMBLY - water

1шт.

2

87463C1

SEAL PACKAGE

KIT - service, water pump

1шт.

3

87013C2

PULLEY

- water pump

1шт.

4

485-13112

SET SCREW,Sq Hd, 5/16"-18 x 3/4"

SCREW - set, square head, 5/16 NC x 3/4 inch, cup point, not shown

1шт.

5

87012C2

PULLEY

- fan, 7-5/8 inch (194 mm) diameter

1шт.

6

106465C1

V-BELT,51.94" L

-Pump Pulley to Fan Pulley 51.94" L

1шт.

7

326-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

2шт.

7a

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

25402R1

NUT

- hex, 1/4 inch NC, inch grade 8

2шт.

10

1339083C1

ANGLE BAR

BRACKET - pump mounting

1шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - carriage, 3/8 NC x 2-1/2 inch

2шт.

14

612233R1

SPACER,5/8" Tube x 1 1/8"

- pump mounting, 13/32 x 5/8 x 1-3/16 inch

2шт.

15

1339192C1

ANGLE BAR

BRACKET - cover, mounting

1шт.

16

1339194C1

LARGE PLATE

PLATE - valve cover

1шт.

17

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

20

1339189C1

COVER

- water valve

1шт.

21

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

3шт.
