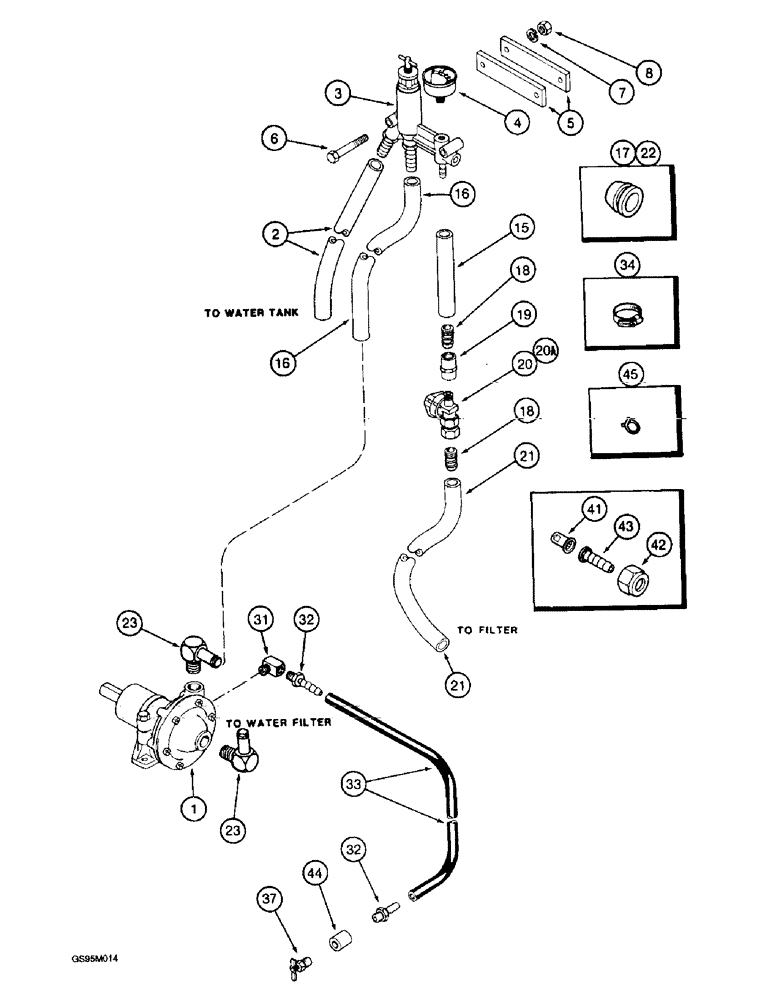

Запчасти Case IH 2055 (9B-12) - WATER VALVE SYSTEM, WITH WATER LINES SERVICE CENTER (14) - WATER SYSTEM

1

87030C1

PUMP, WATER

PUMP ASSEMBLY - water, see page 9B-14

1шт.

2

1345181C1

HOSE,0.50" ID x 112.00"

- regulator valve to water tank, 112 inch (2845 mm) long, cut from 665181R1 bulk hose, see below

1шт.

NOTE: For water lines service center, see page 9B-8. For water lines, see page 9B-6.

1шт.

3

87202C1

SHUT-OFF VALVE

VALVE - water regulator

1шт.

4

87203C1

GAUGE

- water pressure

1шт.

5

87210C1

LARGE PLATE

BAR - spacer valve

2шт.

6

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

15

1338167C1

HOSE

- water regulator valve to check valve, 12 inch (305 mm) long, cut from 1982352CX bulk hose, see below

1шт.

NOTE: For water lines service center, see page 9B-8. For water lines, see page 9B-6.

1шт.

16

1546375C1

HOSE

- water pump to regulator valve, 160 inch (4064) mm long, cut from 665181R1 bulk hose, see below

1шт.

NOTE: For water lines service center, see page 9B-8. For water lines, see page 9B-6.

1шт.

17

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hose, 3/4 inch ID

4шт.

18

1338695C1

FITTING

- stem, 1/4 inch

1шт.

19

217-96

COUPLING,1/4"-18, Brass

- pipe, 1/4 inch

1шт.

20

1339011C1

CHECK VALVE

VALVE - check, 10 psi, or use item 20A, valve 1338341C1

1шт.

20a

1338341C1

VALVE

- check, or use item 20, valve 1339011C1

1шт.

21

1546021C1

HOSE

- regulator valve to water line tee, 180 inch (4572 mm) long, cut from 1338159CX bulk hose, see below

1шт.

NOTE: For water lines service center, see page 9B-8. For water lines, see page 9B-6.

1шт.

22

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- hose, 5/8 inch ID

3шт.

23

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

(Elbow) 90º, 1/2" Hose x 3/8" NPTF, Barbed

2шт.

31

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street (Replaces elbow 9409931) 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

32

217-114

FITTING,3/8" Hose x 1/8" NPTF, Barbed

ADAPTER - straight, 3/8 barb end x 1/8 inch PT

2шт.

33

1338160C2

HOSE

- water drain, 33 (838 mm) long, cut from 1338159CX bulk hose, see below

1шт.

NOTE: For water lines service center, see page 9B-8. For water lines, see page 9B-6.

1шт.

34

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia (14-16)

1шт.

37

217-81

VALVE

- drain, 1/8 inch PT

1шт.

41

1339108C1

VALVE POPPET

VALVE - check

1шт.

42

1339129C1

NUT

CAP - nozzle

1шт.

43

1339130C1

FITTING

- stem, straight, special

1шт.

44

105408

COUPLING,1/8" NPT

- pipe, 1/8 inch (replaces coupling 187394)

1шт.

45

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose, spring type, 3/4 inch, if used

8шт.

45

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

CLAMP - adj, 1/2-29/32 inch dia, if used

8шт.

665181R1

HOSE,0.50" ID

Cut from Bulk 0.50" ID

1шт.

NOTE: For water lines service center, see page 9B-8. For water lines, see page 9B-6.

1шт.

1982352CX

HOSE,6.35mm ID x 30480mm L, SAE 30R7

Bulk 6.50 mm ID x 30480.00 mm

1шт.

NOTE: For water lines service center, see page 9B-8. For water lines, see page 9B-6.

1шт.

1338159CX

HOSE

- bulk, 3/8 (10) ID x 1200 inch (30480 mm) long

1шт.

NOTE: For water lines service center, see page 9B-8. For water lines, see page 9B-6.

1шт.
