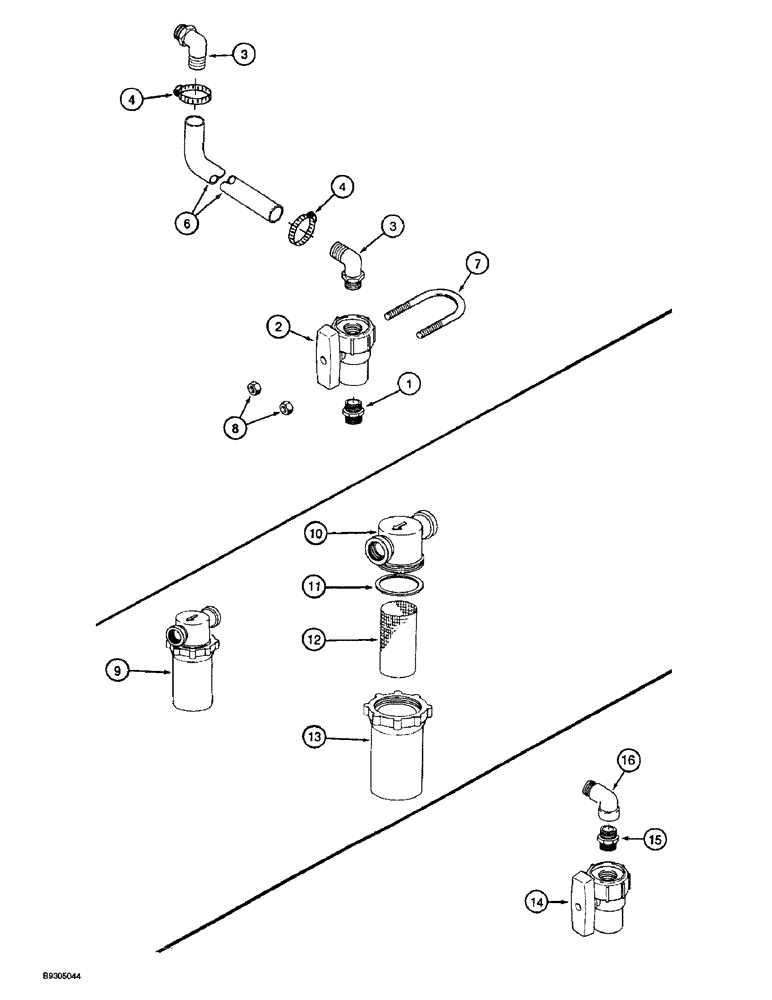

Запчасти Case IH 2055 (9B-10) - QUICK FILL ATTACHMENT & WATER FILTER QUICK FILL ATTACHMENT (14) - WATER SYSTEM

1

1264070C1

FITTING

NIPPLE - straight, special, 1-1/4 PT x 2 inch

1шт.

2

1980002C1

VALVE,1-1/4" Single Union Poly Valve

- water shutoff

1шт.

3

1345169C1

FITTING

ELBOW - 90 degree, 1-1/4 PT x 1-1/2 inch stem

2шт.

4

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose, spring type, 3/4 inch, if used

2шт.

4

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

CLAMP - adj, 1/2-29/32 inch dia, if used

2шт.

6

87704C2

HOSE,1.50" ID

- water, 78 inch (1980 mm) long

1шт.

7

1979995C1

U-BOLT,5/16" - 18 x 3 3/4"

- water valve, 5/16 inch NC

1шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

9

87006C92

FILTER

ASSEMBLY - water

1шт.

10

NSS

NOT SOLD SEPARAT

BASE - water filter

1шт.

11

87225C1

GASKET

- line strainer WATER FILTER

1шт.

12

87260C1

FILTER SCREEN

SCREEN - filter WATER

1шт.

13

NSS

NOT SOLD SEPARAT

BOWL - water filter

1шт.

14

1980002C1

VALVE,1-1/4" Single Union Poly Valve

- shutoff QUICK FILL *USED WITH 121402A1 WATER TANK

1шт.

15

1264070C1

FITTING

NIPPLE - straight, special, 1-1/4 PT x 2 inch long QUICK FILL *USED WITH 121402A1 WATER TANK

1шт.

16

1264068C1

ELBOW

- 90 degree, special, 1-1/4 inch PT QUICK FILL *USED WITH 121402A1 WATER TANK

1шт.
