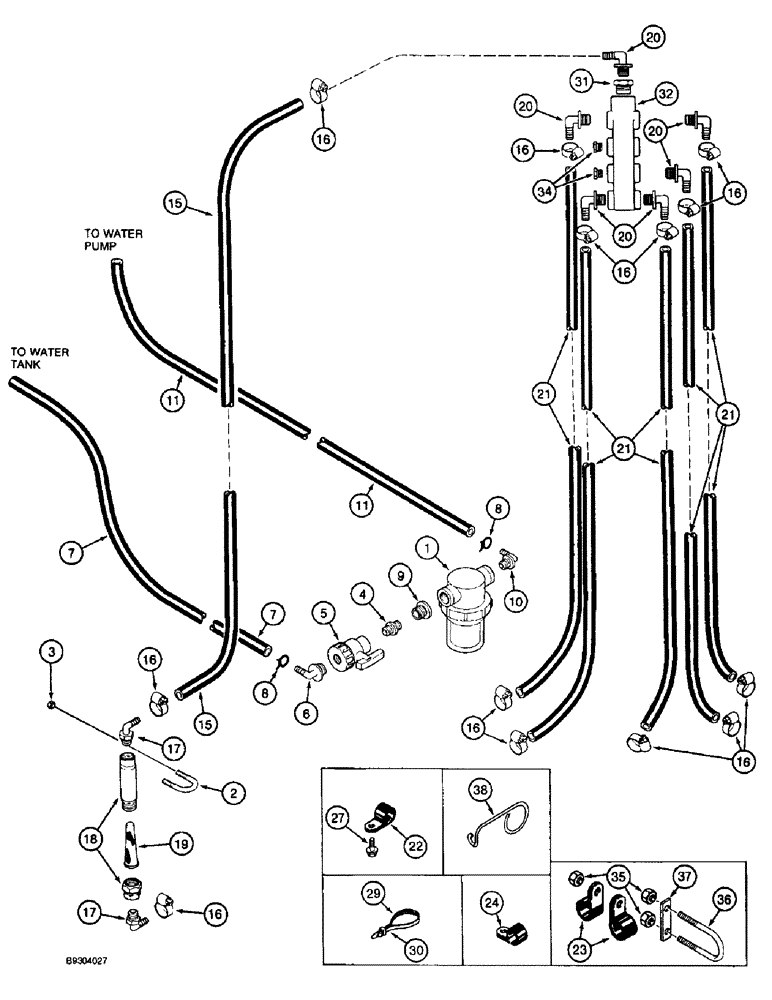

Запчасти Case IH 2055 (9B-07A) - WATER LINES, WITHOUT WATER LINES SERVICE CENTER (14) - WATER SYSTEM

1

87006C92

FILTER

ASSEMBLY - water, parts list page 9B-10

1шт.

2

1338145C1

U-BOLT,3/8" - 16 x 41.15mm W x 41.30mm L

- bracket retaining, special, 3/8 inch NC

1шт.

3

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

4

1345155C1

ADAPTER

NIPPLE - straight, 3/4 PT x 3/4 inch

1шт.

5

1345067C1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

VALVE - shutoff

1шт.

6

1329210C1

ELBOW

- 90 degree, 1/2 stem end x 3/4-16 inch

1шт.

7

132265C3

HOSE

- water tank to shutoff valve, 100 inch (2540 mm) long, cut from 665181R1 bulk hose, see below

1шт.

NOTE: For water valve system, see page 9B-13A

1шт.

8

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose, spring type, 3/4 inch, if used

8шт.

8

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

CLAMP - adj, 1/2-29/32 inch dia, if used

8шт.

9

1345154C1

FITTING

BUSHING - 1 x 3/4 inch

1шт.

10

1345153C1

90 ELBOW

- 90 degree, special, 1 x 1/2 inch

1шт.

11

201763C2

HOSE,12.70 mm ID x 1371.60 mm

Shutoff Filter to Water Pump, Cut from 665181R1 bulk hose, See below 12.70 mm ID x 1371.60 mm

1шт.

NOTE: For water valve system, see page 9B-13A

1шт.

15

1338768C1

HOSE

- in-line filter to manifold valve, 23 inch (584 mm) long, cut from 1338159CX bulk hose, see below

1шт.

NOTE: For water valve system, see page 9B-13A

1шт.

16

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable (14-16) #4, 0.25/0.62 Type M Worm

1шт.

17

1339135C1

ELBOW

FITTING - stem, 90 degree, special, hose

2шт.

18

1339134C1

FILTER

- water inline

1шт.

19

1339256C1

FILTER STRAINER

SCREEN - filter

1шт.

20

1546018C1

ELBOW

- 90 degree, 1/4 PT x 3/8 inch stem

5-6шт.

21

1546022C1

HOSE

- manifold valve to drum, 200 inch (5080 mm) long, cut from 1338159CX bulk hose, see below

4-5шт.

NOTE: For water valve system, see page 9B-13A

1шт.

22

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type 1 1/2", Insul, 1/2" Bolt

2-3шт.

23

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type (8-10) 1 1/2", Insul, 3/8" Bolt

1шт.

24

1301387C2

CLIP

CLAMP - square, 2 inch ID

1шт.

27

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

- hex serrated flange, 1/2 NC x 3/4 inch

2-3шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 10 inch, nylon (replaces strap 533959R1)

4шт.

30

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Retaining

6шт.

31

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

32

1546015C1

MANIFOLD

- water

1шт.

33

1546371C1

PROTECTOR

GUARD - hose conduit, used to cover water and lube hoses to individual drums, not shown

4-5шт.

34

111491A1

PLUG

- hex, 1/4 inch PT

3-4шт.

35

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC, jam

14шт.

36

1546030C1

U-BOLT,3/8" - 16 x 47.60mm W x 44.50mm L

- 3/8 inch NC, clamp and hose retaining

4шт.

37

1546029C1

LARGE PLATE

STRAP - clamp, u-bolt

4шт.

38

120903A1

SUPPORT

BRACKET - clamp, hose

6шт.

665181R1

HOSE,0.50" ID

Cut from Bulk 0.50" ID

1шт.

NOTE: For water valve system, see page 9B-13A

1шт.

1338159CX

HOSE

- bulk, 3/8 (10) ID x 1200 inch (30480 mm) long

1шт.

NOTE: For water valve system, see page 9B-13A

1шт.
