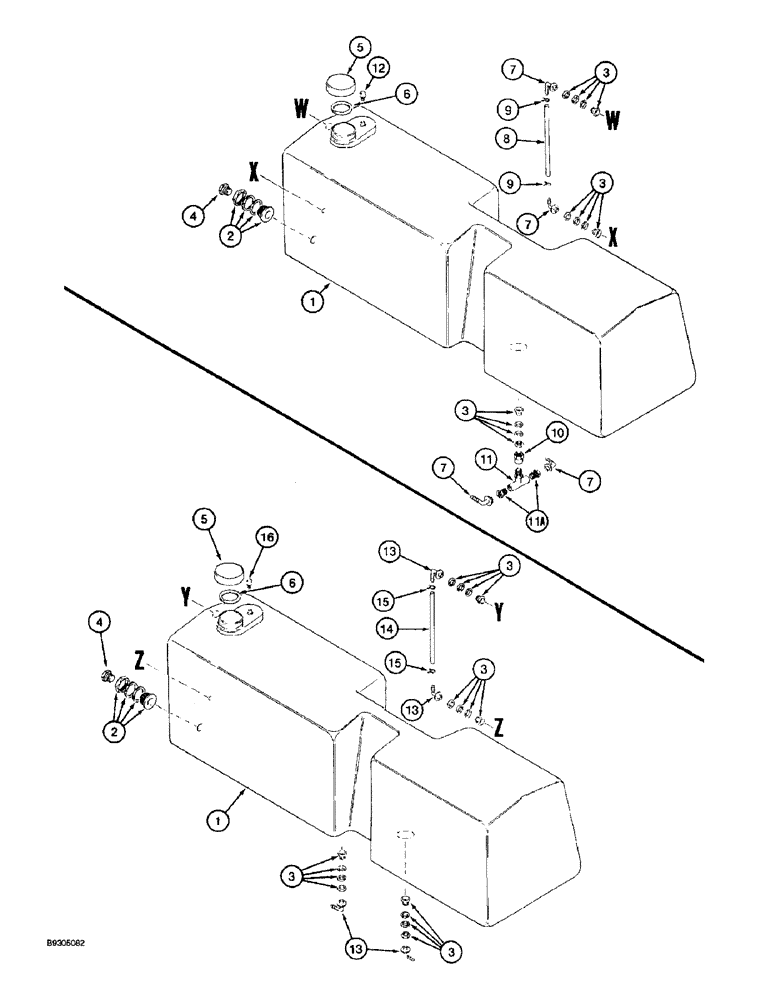

Запчасти Case IH 2055 (9B-03A) - WATER TANK W/ 3 PORTS ON LEFT-HAND SIDE (14) - WATER SYSTEM

1

121402A1

TANK

ASSEMBLY - water, 385 gallon, may have one or two lower ports

1шт.

2

1254377C1

FITTING

- hopper, nylon 4 piece, special, 1-1/4 inch PT

1шт.

3

1345186C1

FITTING

- hopper, nylon 4 piece, 3/4 inch PT, three used on tank with one lower port, four used on tank with two lower ports

3-4шт.

4

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

- hex, special, 1-1/4 inch PT

1шт.

5

1345185C1

CAP

ASSEMBLY - water tank

1шт.

6

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

- tank cap

1шт.

7

1329210C1

ELBOW

- 90 degree, 1/2 stem end x 3/4-16 inch PARTS USED ON TANK WITH ONE LOWER PORT

4шт.

8

1545978C3

HOSE

- sight gauge, 27 inch (686 mm) long, cut from 665181R1 bulk hose, see below PARTS USED ON TANK WITH ONE LOWER PORT

1шт.

NOTE: See page 9B-10 for quick fill attachment.

1шт.

9

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - spring type, 3/4 inch, if used PARTS ON TANK WITH ONE LOWER PORT

2шт.

9

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

CLAMP - adj, 1/2-29/32 inch dia, if used PARTS ON TANK WITH ONE LOWER PORT

2шт.

10

117402A1

LUBE NIPPLE

REDUCER - pipe, 3/4 male x 1/2 inch female PARTS USED ON TANK WITH ONE LOWER PORT

1шт.

11

117401A1

TEE

- 1/2 PT branch x 1/2 inch barb end x barb end PARTS USED ON TANK WITH ONE LOWER PORT

1шт.

11a

1329209C1

BUSHING

REDUCER - 1-1/4 female x 3/4 inch male PARTS USED ON TANK WITH ONE LOWER PORT

2шт.

12

1971726C1

BREATHER,1/4" - 18

- tank PARTS USED ON WITH ONE LOWER PORT

1шт.

13

1329210C1

ELBOW

- 90 degree, 1/2 stem end x 3/4-16 inch PARTS USED ON TANK WITH TWO LOWER PORTS

4шт.

14

1545978C3

HOSE

- sight gauge, 27 inch (686 mm) long, cut from 665181R1 bulk hose, see below PARTS USED ON TANK WITH TWO LOWER PORTS

1шт.

NOTE: See page 9B-10 for quick fill attachment.

1шт.

15

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose, spring, type, 3/4 inch, if used PARTS ON TANK WITH TWO LOWER PORTS

2шт.

15

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

CLAMP - adj, 1/2-29/32 inch dia, if used PARTS ON TANK WITH TWO LOWER PORTS

2шт.

16

1971726C1

BREATHER,1/4" - 18

- tank PARTS USED ON WITH TWO LOWER PORTS

1шт.

665181R1

HOSE,0.50" ID

Cut from Bulk, Parts Used on Tank with Two Lower Ports 0.50" ID

1шт.

NOTE: See page 9B-10 for quick fill attachment.

1шт.
