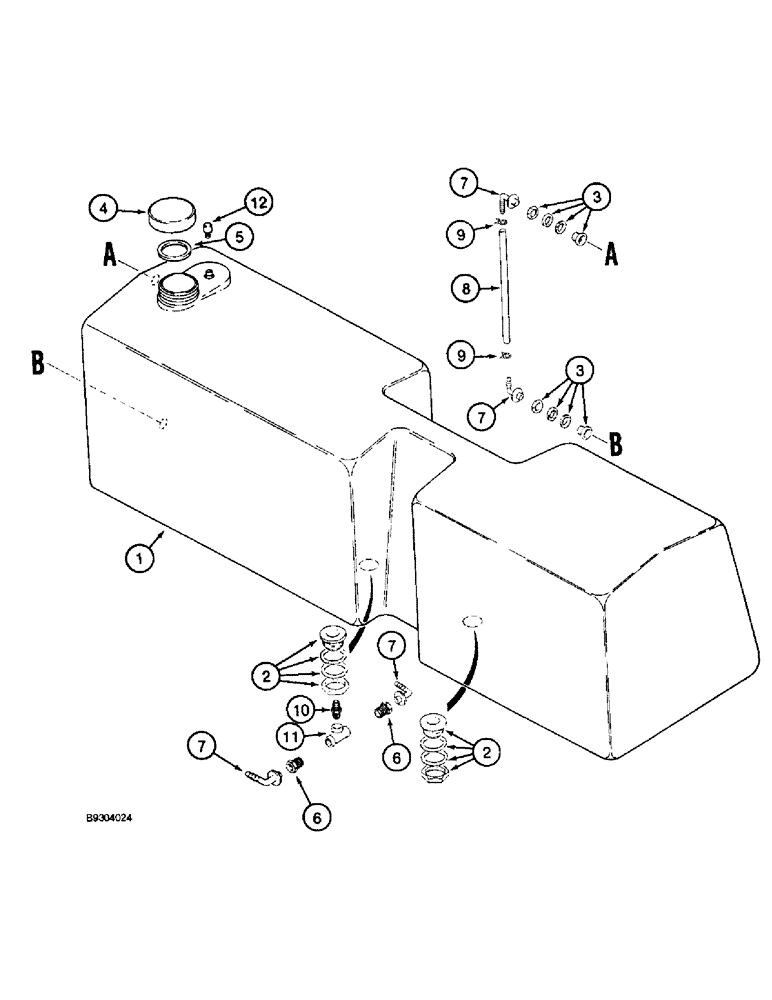

Запчасти Case IH 2055 (9B-02) - WATER TANK, WITH TWO PORTS ON LEFT-HAND SIDE (14) - WATER SYSTEM

1

1984321C1

TANK

ASSEMBLY - water, 400 gallon, two lower ports, two left-hand side ports, no longer available, order item 1, 121402A1 tank on page 9B-3A and items 20 and 21, 120528A1 and 120527A1 covers on page 9B-4

1шт.

2

1254377C1

FITTING

- hopper, nylon, 4 piece, special, 1-1/4 inch PT

2шт.

3

1345186C1

FITTING

- hopper, nylon, 4 piece, 3/4 inch PT

2шт.

4

1345185C1

CAP

ASSEMBLY - water tank

1шт.

5

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

- tank cap

1шт.

6

1329209C1

BUSHING

REDUCER - 1-1/4 female x 3/4 inch male

2шт.

7

1329210C1

ELBOW

- 90 degree, 1/2 stem end x 3/4-16 inch

4шт.

8

1545978C3

HOSE

- sight gauge, 27 inch (686 mm) long, cut from 665181R1 bulk hose, see below

1шт.

NOTE: See page 9B-10 for quick fill attachment.

1шт.

9

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - spring type, 3/4 inch, if used

2шт.

9

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

CLAMP - adj, 1/2-29/32 inch dia, if used

2шт.

10

1264070C1

FITTING

NIPPLE - straight, special, 1-1/4 PT x 2 inch long

1шт.

11

1264067C1

FITTING

TEE - female, special, 1-1/4 inch

1шт.

12

1971726C1

BREATHER,1/4" - 18

- tank

1шт.

665181R1

HOSE,0.50" ID

Cut from Bulk 0.50" ID

1шт.

NOTE: See page 9B-10 for quick fill attachment.

1шт.
