Запчасти Case IH 2055 (9A-80) - DRUM COVERS (13) - PICKING SYSTEM

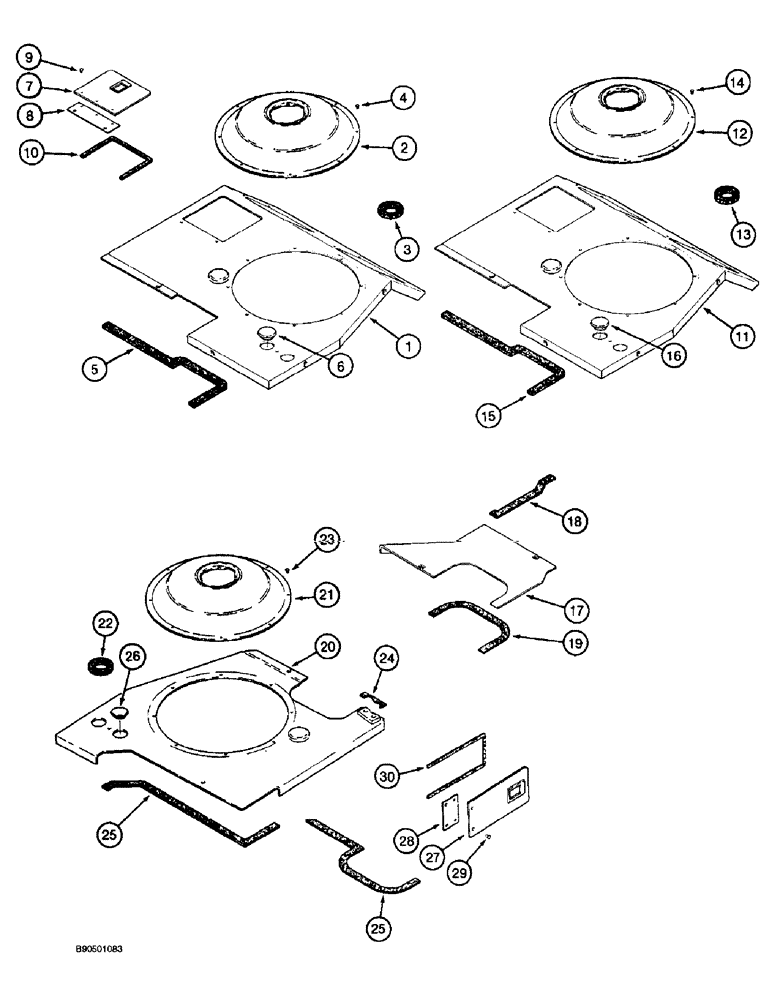

Схема запчастей Case IH 2055 - (9A-80) - DRUM COVERS (13) - PICKING SYSTEM
24
19
13
23
20
14
25
2
12
7
4
28
10
9
18
15
25
21
17
16
11
6
29
1
30
5
22
27
26
3
8

Артикул

Название

Примечание

Количество

1982724C1

COVER ASSY

COVER ASSEMBLY - upper, front, with opening for operator presence system

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - top front, order 1982724C1 cover assembly

1шт.

2

1982649C1

COVER

- drum rotor

1шт.

3

1990287C1

GASKET

GASKET - doffer, foam

1шт.

4

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

5

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 540 mm, cut from 195917C1 bulk seal below

1шт.

6

353-414

PLUG,Dome, 1.375" Hole, Nylon

top cover Dome, 1.375" hole, Nylon

1шт.

1982665C2

COVER ASSY

COVER ASSEMBLY - access

1шт.

7

1982666C2

COVER

- access, large

1шт.

8

1982668C1

HINGE

- access cover

1шт.

9

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

3шт.

10

1994969C1

SEALING STRIP

- foam, 17-3/4 inch (450 mm) long, cut from 199468C1 bulk seal below

1шт.

1982627C1

COVER ASSY

COVER ASSEMBLY - upper, front, right-hand

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - top front, order 1982627C1 cover assembly

1шт.

12

1982649C1

COVER

- drum rotor

1шт.

13

1990287C1

GASKET

GASKET - doffer, foam

1шт.

14

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

15

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 540 mm long, cut from 195917C1 bulk seal below

1шт.

16

353-414

PLUG,Dome, 1.375" Hole, Nylon

top cover Dome, 1.375" hole, Nylon

1шт.

REF#16 PLUG .625 IS 353-406 PLUG THAT IS .406 IS 223796C2

1шт.

1990261C2

COVER ASSY

COVER ASSEMBLY - top, center

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - top, center

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 262 mm long, cut from 195917C1 bulk seal below

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 390 mm long, cut from 195917C1 bulk seal below

1шт.

1982764C2

COVER ASSY

COVER ASSEMBLY - top, rear

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - top rear, order 1982764C2 cover assembly

1шт.

21

1982649C1

COVER

- drum rotor

1шт.

22

1990287C1

GASKET

GASKET - doffer, foam

1шт.

23

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

24

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 80 mm long, cut from 187874C1 bulk seal below

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 600 mm long, cut from 195917C1 bulk seal below

2шт.

26

353-414

PLUG,Dome, 1.375" Hole, Nylon

top cover Dome, 1.375" hole, Nylon

1шт.

1982669C2

COVER ASSY

COVER ASSEMBLY - access, replaces 1982669C1 cover

1шт.

Latch for # 1982669c2 is a 1982673c1

1шт.

27

1982670C2

COVER

- access, small

1шт.

28

1982672C1

HINGE

- access cover

1шт.

29

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

2шт.

30

1994970C1

SEALING STRIP

- foam, 20-1/8 inch (512 mm) long, cut from 1994968C1 bulk seal below

1шт.

187874C1

GASKET

SEAL - bulk sheet, 3/8 (10) wide x 600 (15240) long x 1/8 inch (3 mm) thick

1шт.

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

1994968C1

FOAM INSULATION

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

1262469C1

SEAL

SEAL - drum caulk, air dry, bulk, 11 ounces (325 ml)

1шт.

Выбрано товаров: 42
