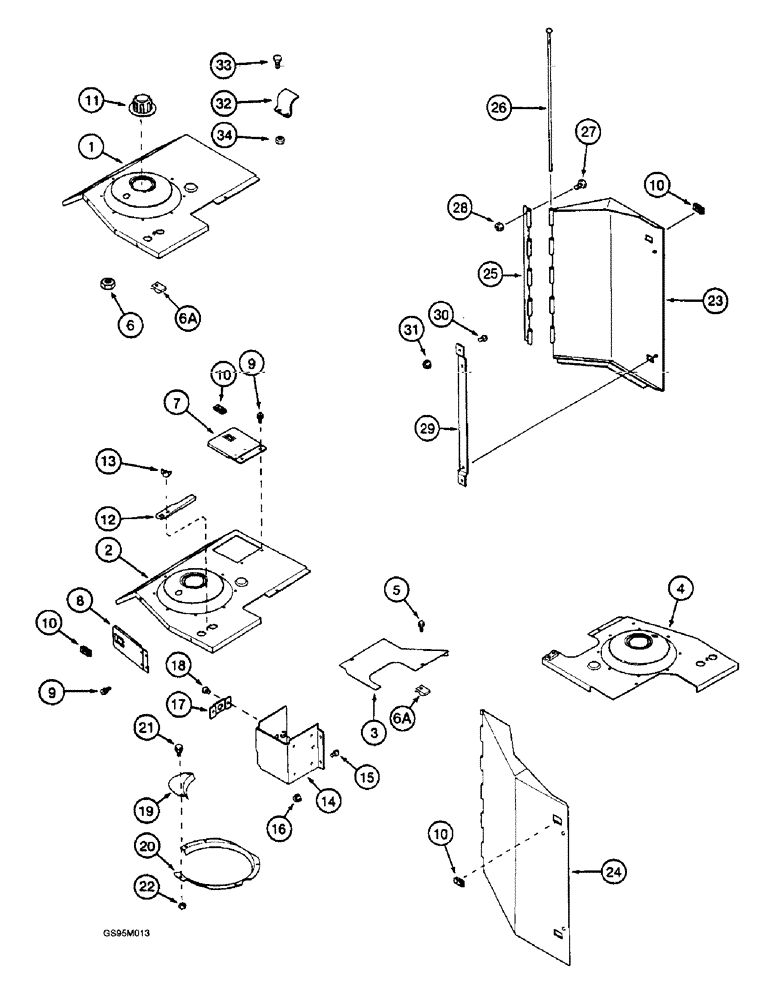

Запчасти Case IH 2055 (9A-76) - COVERS AND DOORS (13) - PICKING SYSTEM

1

1982627C1

COVER ASSY

COVER ASSEMBLY - upper, front, parts list page 9A-80

1шт.

See Figure 9A-80 for serviceable components.

1шт.

2

1982724C1

COVER ASSY

COVER ASSEMBLY - upper, front, operator presence system, parts list page 9A-80

1шт.

See Figure 9A-80 for serviceable components.

1шт.

3

1990261C2

COVER ASSY

COVER ASSEMBLY - top, center, parts list page 9A-80

1шт.

See Figure 9A-80 for serviceable components.

1шт.

4

1982764C2

COVER ASSY

COVER ASSEMBLY - top, rear, parts list page 9A-80

1шт.

See Figure 9A-80 for serviceable components.

1шт.

5

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch, if used

17шт.

5

231-34712

SCREW - hex head, self-tapping, 1/4 NC x 3/4 inch, if used

2шт.

6

673689R1

NUT

- speed, special, 1/4 inch NC, if used

4шт.

6a

104329C1

NUT

- speed, U-type, 1/4 - 20, if used

13шт.

7

1982665C2

COVER ASSY

COVER ASSEMBLY - access, large (replaces cover assembly 1982665C1)

1шт.

See Figure 9A-80 for serviceable components.

1шт.

8

1982669C1

COVER ASSY

COVER - access, small

2шт.

See Figure 9A-80 for serviceable components.

1шт.

9

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

1шт.

10

1982673C1

LATCH

- cover

1шт.

11

1982787C2

PLUG

COVER - rotor (replaces cover 1982787C1)

2шт.

12

1982894C2

LOCKING PLATE

PLATE - lock, doffer adjustment (replaces cover 1982894C1)

2шт.

13

126177

WING NUT

NUT - wing, 1/4 inch NC

2шт.

14

1982730C1

SUPPORT

CHANNEL - tether

1шт.

15

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

1шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

17

91795C1

SUPPORT

BRACKET - transducer mounting

1шт.

18

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex head, no. 10 NC x 1/2 inch

1шт.

19

1982858C1

COVER

- access, picker bar

2шт.

20

1988726C1

RING

- rotor guard, left-hand

1шт.

20

1988727C1

RING

- rotor guard, right-hand, shown

1шт.

21

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

14шт.

22

673689R1

NUT

- speed, special, 1/4 inch NC

14шт.

23

1349800C1

DOOR

- front, metal, if used, see page 9A-77A for plastic doors and related parts

1шт.

24

1988886C1

DOOR ASSY.

DOOR - rear, metal, if used, see page 9A-77A for plastic doors and related parts

1шт.

25

1982865C1

HINGE

- door, if used

1шт.

26

1278880C1

PIN

- hinge, if used

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, if used

1шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, if used

1шт.

29

1982867C1

BAR

- step lock, if used

1шт.

30

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

if used Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

31

231-5146

FLANGE NUT,3/8"-16

If used Flg, USR, 3/8"-16

1шт.

32

1983176C2

BRACKET

- rotor wrench, replaces 1983176C1

1шт.

33

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
