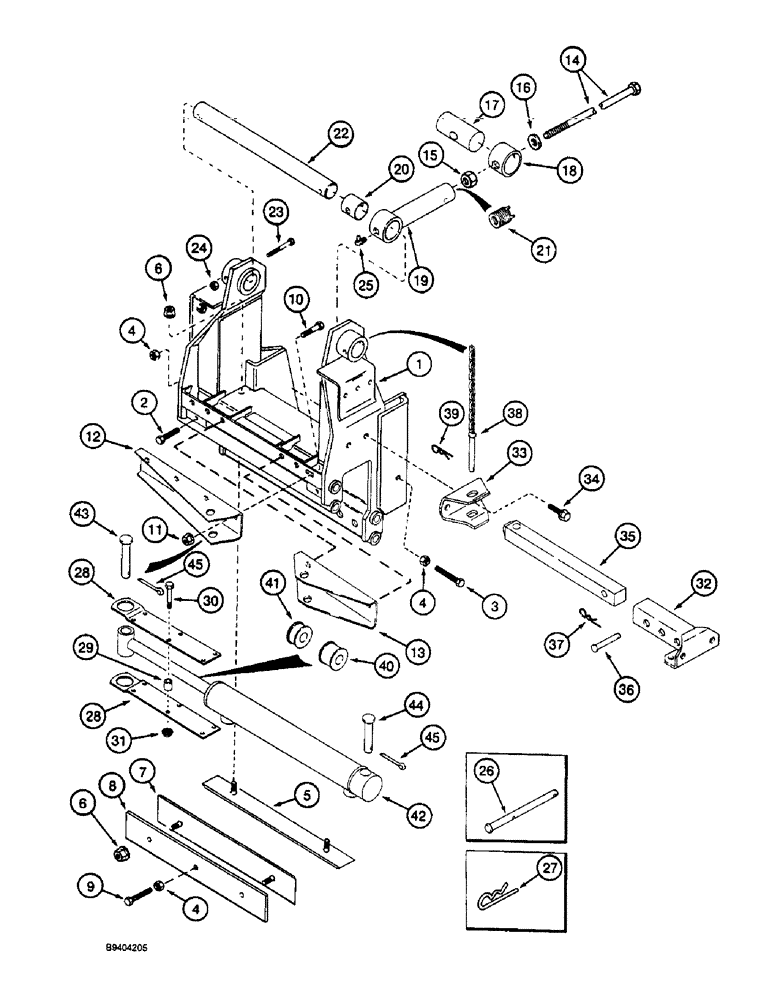

Запчасти Case IH 2055 (9A-75A) - DRUM HANGER ASSEMBLY, 4 ROW WIDE, P.I.N. JJC0155439 AND AFTER (13) - PICKING SYSTEM

1

1984367C4

SUPPORT ASSY.

HANGER - rear drum (replaces hangers 1984367C2 and 198467C3)

4шт.

2

114782A1

BOLT

BOLT - hex, full thread, 1/2 NC x 2-1/4 inch

24шт.

3

114781A1

BOLT

BOLT - hex, full thread, 1/2 NC x 3 inch

8шт.

4

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

40шт.

5

1984383C1

BAR

WEARSTRIP - guide bar top

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

24шт.

7

1984382C2

BAR

WEARSTRIP - front and rear (replaces wearstrip 1984382C1)

8шт.

8

1984381C3

BAR

- wearstrip support (replaces bar 1984381C2)

8шт.

9

113-531

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd

8шт.

10

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

5шт.

11

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5шт.

12

128282A2

CONDUIT

CHANNEL - cylinder, left-hand

1шт.

13

135698A2

CONDUIT

CHANNEL - cylinder, right-hand

1шт.

14

1349841C2

ROD

- front radius (replaces rod 1349841C1)

4шт.

15

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

4шт.

16

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

4шт.

17

1982868C1

PIN,50.8mm OD x 110mm L

- radius rod

4шт.

18

1982869C1

SPACER

- radius rod

4шт.

19

1349842C2

END

ASSEMBLY - radius rod, with insert

4шт.

20

617924R1

BUSHING,41.3mm ID x 44.45mm OD x 44.7mm L

- rod

1шт.

21

1994998C1

INSERT

- radius rod end

1шт.

22

1983059C2

PIN,41.27mm OD x 445mm L

- front radius rod

4шт.

23

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

8шт.

24

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

8шт.

25

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

26

118485A1

PIN,12.7mm OD x 150.75mm L

- hanger hold-down

1шт.

27

586591R1

COTTER PIN

PIN - hair, 1/8 inch

1шт.

28

128502A2

PLATE

- cylinder stop

4шт.

29

190123C1

SPACER,1/2" Tube x 1"

- 1/2 x 1 inch

12шт.

30

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

12шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

32

128503A1

SUPPORT

LOCK - cylinder bracket

1шт.

33

128507A1

BRACKET

- cylinder lock

1шт.

34

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

35

128506A1

BAR

- spacer, cylinder

1шт.

36

439-11040

HEADED PIN,5/8" x 2", G2

PIN - headed, 5/8 x 2-1/2 inch, grade 2

1шт.

37

136-166

COTTER PIN,Int, 9/32" x .120"

PIN - hair, 9/32 x 2 inch

1шт.

38

137882A1

PIN

- cylinder lock, includes chain

1шт.

39

136-166

COTTER PIN,Int, 9/32" x .120"

PIN - hair, 9/32 x 2 inch

1шт.

40

137910A1

STOP

SEGMENT - cylinder stroke control, 1-1/2 inch, used for 40 inch rows

4шт.

41

137906A1

STOP

SEGMENT - cylinder stroke control, 1 inch, used for 40 inch rows, if used

2шт.

42

1542544C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - drum spread, 2-1/4 (57) ID x 14-3/4 inch (375 mm) stroke, parts list page 8-74

2шт.

43

439-11664

HEADED PIN,1" x 4"

PIN - headed, 1 x 4 inch, grade 2

2шт.

44

439-11656

HEADED PIN,25.4mm OD x 88.9mm L

PIN - headed, 1 x 3-1/2 inch, grade 2

2шт.

45

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

2шт.
