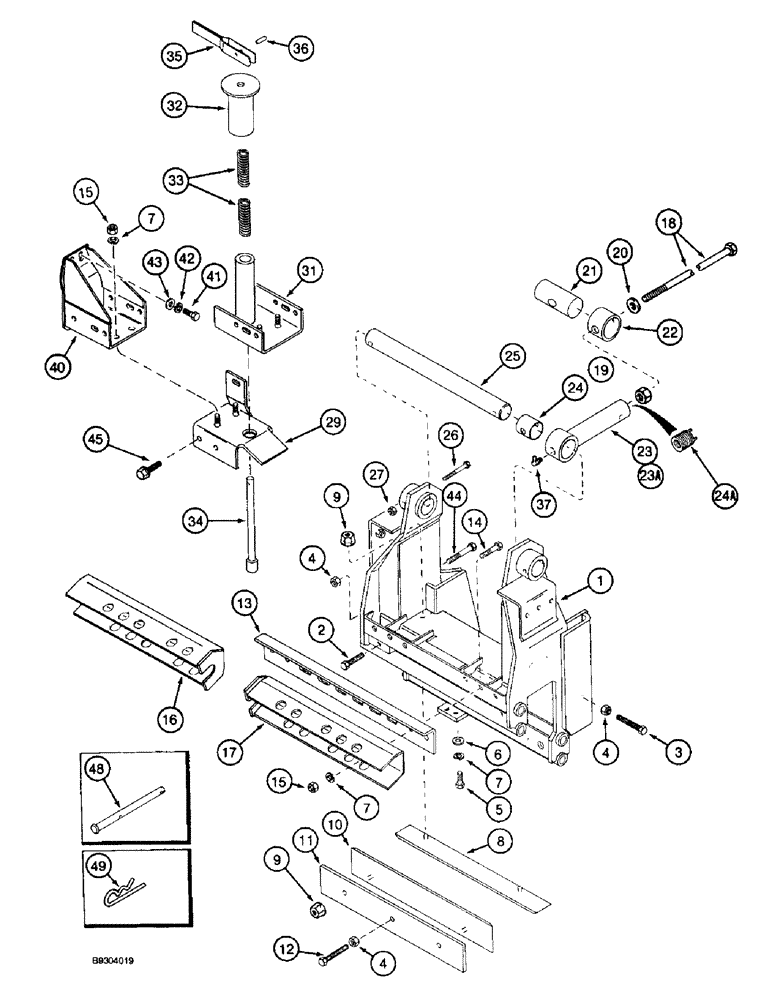

Запчасти Case IH 2055 (9A-74) - DRUM HANGER ASSEMBLY, 4 ROW WIDE, PRIOR TO P.I.N. JJC0155439 (13) - PICKING SYSTEM

1

1984367C4

SUPPORT ASSY.

HANGER - rear drum (replaces hangers 1984367C2 and 1984367C3)

4шт.

2

114782A1

BOLT

BOLT - hex, full thread, 1/2 NC x 2-1/4 inch

24шт.

3

114781A1

BOLT

BOLT - hex, full thread, 1/2 NC x 3 inch

8шт.

4

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

40шт.

5

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

11шт.

8

1984383C1

BAR

WEARSTRIP - guide bar top

4шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

24шт.

10

1984382C2

BAR

WEARSTRIP - front and rear (replaces wearstrip 1984382C1)

8шт.

11

1984381C3

BAR

- wearstrip support (replaces bar 1984381C2)

8шт.

12

113-531

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd

8шт.

13

1546171C1

ANGLE

- cylinder adjustment

2шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

12шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

11шт.

16

1546191C1

SUPPORT

CHANNEL - left-hand

1шт.

17

1546194C1

CHANNEL

- right-hand

1шт.

18

1349841C2

ROD

- front radius (replaces rod 1349841C1)

4шт.

19

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

4шт.

20

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

4шт.

21

1982868C1

PIN,50.8mm OD x 110mm L

- radius rod

4шт.

22

1982869C1

SPACER

- radius rod

4шт.

23

1349842C1

END

- radius rod, no longer available, for service order item 23A, 1349842C2 end assembly

4шт.

23a

1349842C2

END

ASSEMBLY - radius rod, with insert

4шт.

24

617924R1

BUSHING,41.3mm ID x 44.45mm OD x 44.7mm L

- rod

1шт.

24a

1994998C1

INSERT

- radius rod end, used with item 23A

1шт.

25

1983059C2

PIN,41.27mm OD x 445mm L

- front radius rod

4шт.

26

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

8шт.

27

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

8шт.

29

1546179C1

CHANNEL

- lower left-hand

1шт.

31

1546183C1

CHANNEL

- upper

1шт.

32

1984426C1

PLUNGER

- upper

1шт.

33

1990036C1

SPRING

- lock

2шт.

34

1990370C1

HEADED PIN

PIN - latch

1шт.

35

1990040C1

HANDLE

- lock

1шт.

36

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

37

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

40

1546185C1

SUPPORT

CHANNEL - 4 row adapter

2шт.

41

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

42

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

43

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

8шт.

44

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

45

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

- hex serrated flange, 1/2 NC x 1-1/2 inch

2шт.

46

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

9шт.

47

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

9шт.

48

118485A1

PIN,12.7mm OD x 150.75mm L

- hanger hold-down

1шт.

49

586591R1

COTTER PIN

PIN - hair, 1/8 inch

1шт.
