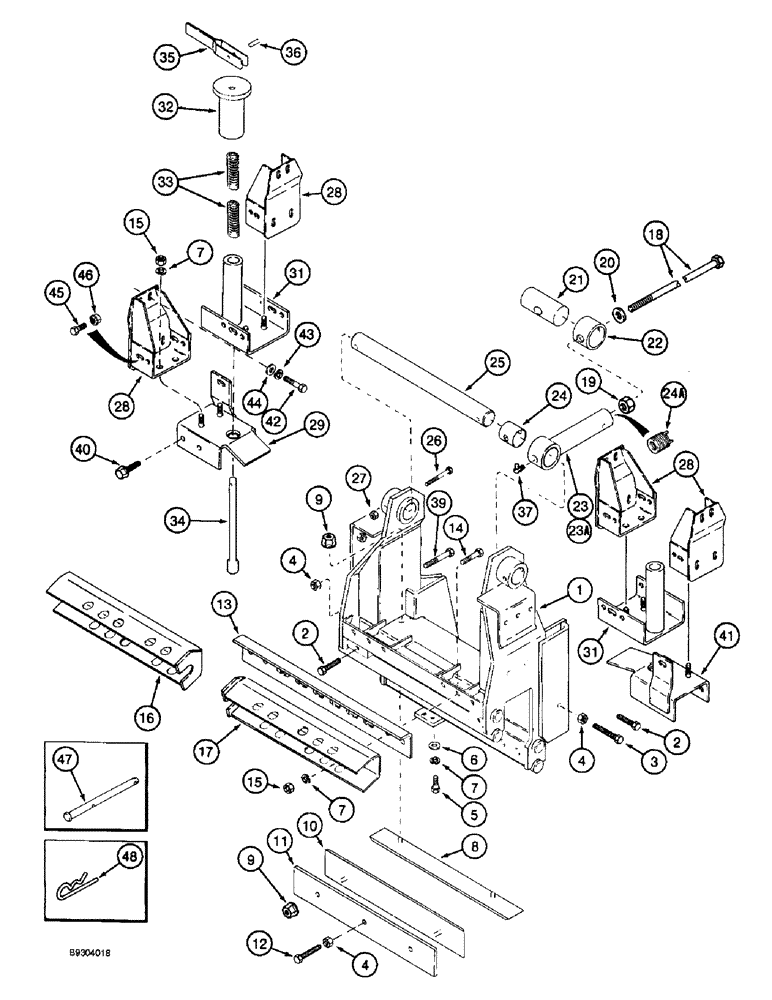

Запчасти Case IH 2055 (9A-72) - DRUM HANGER ASSEMBLY, 5 ROW NARROW, PRIOR TO P.I.N. JJC0155439 (13) - PICKING SYSTEM

1

1984367C4

SUPPORT ASSY.

HANGER - rear drum (replaces hangers 1984367C2 and 1984367C3)

5шт.

2

114782A1

BOLT

BOLT - hex, full thread, 1/2 NC x 2-1/4 inch

31шт.

3

114781A1

BOLT

BOLT - hex, full thread, 1/2 NC x 3 inch

9шт.

4

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

50шт.

5

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

9шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

8

1984383C1

BAR

WEARSTRIP - guide bar top

5шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

30шт.

10

1984382C2

BAR

WEARSTRIP - front and rear (replaces wearstrip 1984382C1)

10шт.

11

1984381C3

BAR

- wearstrip support (replaces bar 1984381C2)

10шт.

12

113-531

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd

10шт.

13

1546171C1

ANGLE

- cylinder adjustment

2шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

16

1546191C1

SUPPORT

CHANNEL - left-hand

1шт.

17

1546194C1

CHANNEL

- right-hand

1шт.

18

1349841C2

ROD

- front radius (replaces rod 1349841C1)

5шт.

19

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

5шт.

20

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

5шт.

21

1982868C1

PIN,50.8mm OD x 110mm L

- radius rod

5шт.

22

1982869C1

SPACER

- radius rod

5шт.

23

1349842C1

END

- radius rod, no longer available, for service order item 23A, 1349842C2 end assembly

5шт.

23a

1349842C2

END

ASSEMBLY - radius rod, with insert

5шт.

24

617924R1

BUSHING,41.3mm ID x 44.45mm OD x 44.7mm L

- rod

1шт.

24a

1994998C1

INSERT

- radius rod end, used with item 23A

1шт.

25

1983059C2

PIN,41.27mm OD x 445mm L

- front radius rod

5шт.

26

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

10шт.

27

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

10шт.

28

1546174C1

ANGLE

- lock

4шт.

29

1546179C1

CHANNEL

- lower, left-hand

1шт.

REF#29 HANGER FOR THIS BOLT IS ON P9B-7B PART 120903A1 BRACKET.

1шт.

31

1546183C1

CHANNEL

- upper

2шт.

32

1984426C1

PLUNGER

- upper

2шт.

33

1990036C1

SPRING

- lock

4шт.

34

1990370C1

HEADED PIN

PIN - latch

2шт.

35

1990040C1

HANDLE

- lock

2шт.

36

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

37

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

5шт.

39

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

40

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

- hex serrated flange, 1/2 NC x 1-1/2 inch

4шт.

41

1546182C1

CHANNEL

- lower, right-hand

1шт.

42

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

16шт.

43

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

44

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

16шт.

45

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

10шт.

46

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

47

118485A1

PIN,12.7mm OD x 150.75mm L

- hanger hold-down

1шт.

48

586591R1

COTTER PIN

PIN - hair, 1/8 inch

1шт.
