Запчасти Case IH 2055 (9A-70) - DRUM LIFT SUPPORT (13) - PICKING SYSTEM

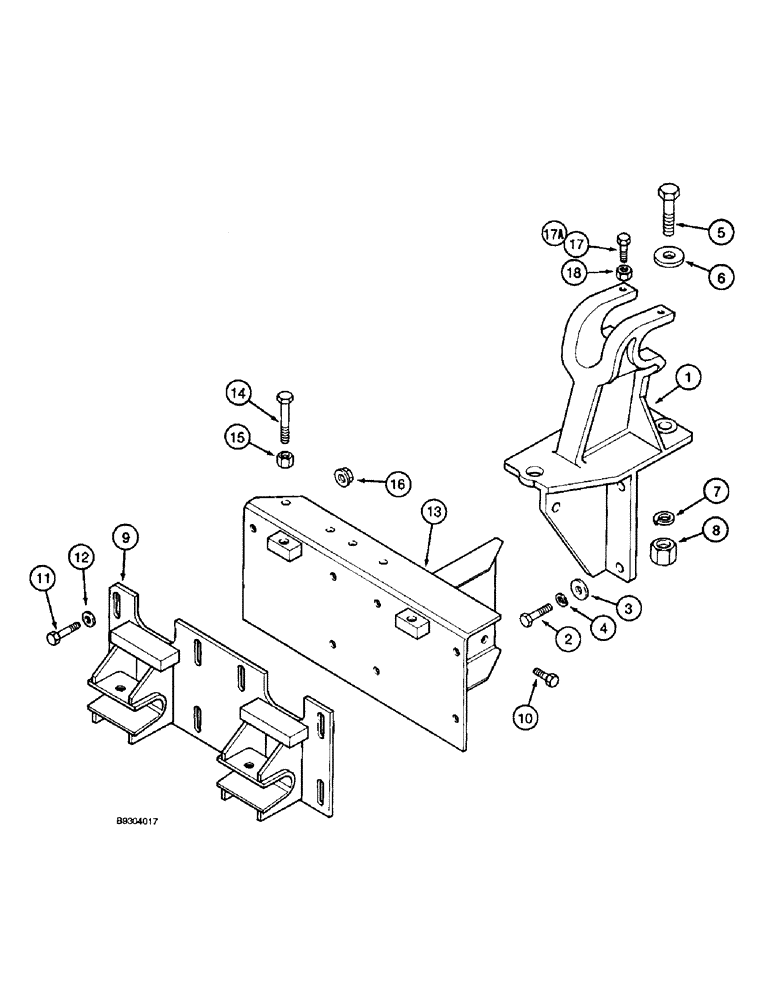

Схема запчастей Case IH 2055 - (9A-70) - DRUM LIFT SUPPORT (13) - PICKING SYSTEM
3
2
1
8
7
15
12
13
17a
6
10
4
9
17
16
5
14
18
11

Артикул

Название

Примечание

Количество

1

1982457C3

SUPPORT

- radius rod, right-hand

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

5

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

2шт.

6

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

425-1010

NUT,5/8"-11, G5

2шт.

9

1984413C3

SUPPORT

- pivot (replaces support 1984413C2)

1шт.

10

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

7шт.

12

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

7-9шт.

13

1984410C3

SUPPORT

PLATE - drum support

1шт.

14

113-476

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5, Full Thd

Hex, 1/2"-13 x 2 3/4", G5, Full Thd

2шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

16

231-5146

FLANGE NUT,3/8"-16

7шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, if used

2шт.

17a

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used (Replaces 413-620 and 425-146, items 17 and 18 on some models)

2шт.

18

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC, if used

2шт.

Выбрано товаров: 19
