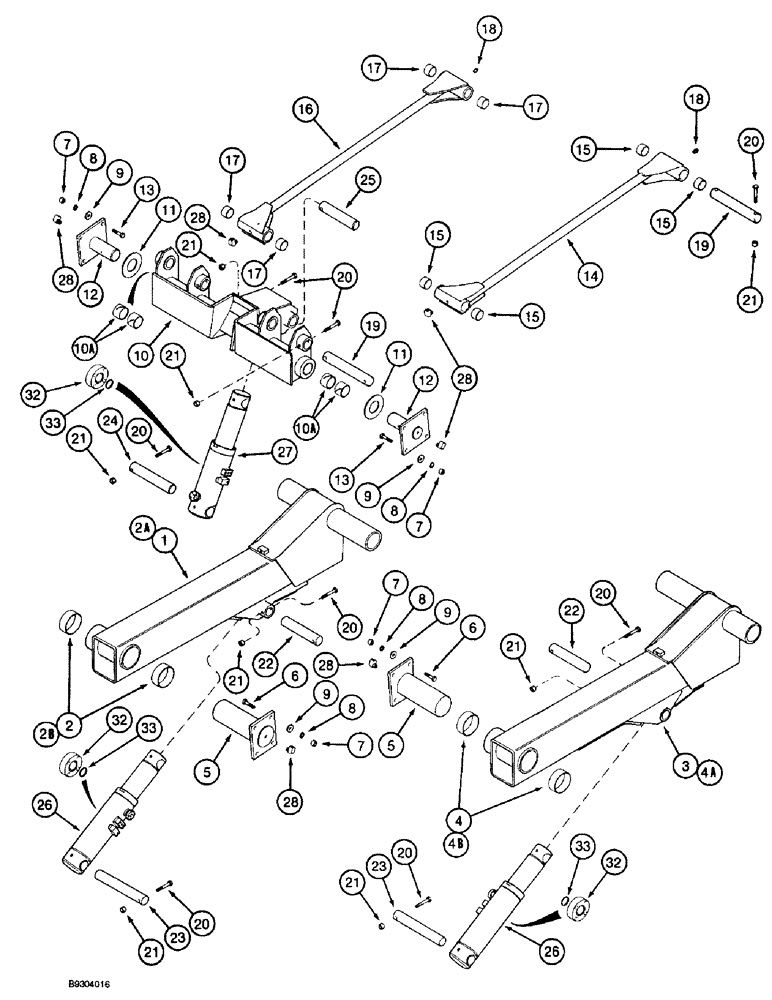

Запчасти Case IH 2055 (9A-68) - DRUM LIFT ARMS (13) - PICKING SYSTEM

1

1983036C1

ARM ASSY.

ARM ASSEMBLY - lift, left-hand, if used

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- pivot

2шт.

2a

1983036C5

ARM

ASSEMBLY - lift, left-hand, if used (replaces arm assemblies 1983036C2, 1983036C3, and 1983036C4)

1шт.

2b

115792A1

BUSHING

- pivot

2шт.

3

1983037C1

ARM ASSY.

ARM ASSEMBLY - lift, right-hand, if used

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- pivot

2шт.

4a

1983037C5

ARM

ASSEMBLY - lift, right-hand, if used (replaces arm assemblies 1983037C2, 1983037C3, and 1983037C4)

1шт.

4b

115792A1

BUSHING

- pivot

2шт.

5

1983050C2

PIN

- lift arm (replaces pin 1983050C1)

2шт.

6

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

8шт.

7

329-108

NUT,1/2"-13, G8

16шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

16шт.

10

1982981C2

PIVOT

ASSEMBLY - kickback

1шт.

10a

669644R1

BUSHING

- kickback pivot

4шт.

11

495-31238

WASHER,2.38" ID x 4.75" OD x 0.22" Thk

- flat, 2-3/8 x 4-3/4 x 7/32 inch

2шт.

12

1983044C1

PIN

- kickback pivot

2шт.

13

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

8шт.

14

1982964C1

ROD

ASSEMBLY - rear radius, right-hand

1шт.

15

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

- pivot

4шт.

16

1983171C1

ROD

ASSEMBLY - rear radius, left-hand

1шт.

17

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

- pivot

4шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

19

1982990C1

PIN

SHAFT - rear radius rod

4шт.

20

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

14шт.

21

231-4138

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

14шт.

22

1983053C1

PIN

- lift cylinder, upper

2шт.

23

1983054C1

PIN

- lift cylinder, lower

2шт.

24

1982991C1

PIN

- kickback cylinder, lower

1шт.

25

1983053C1

PIN

- kickback cylinder, upper (replaces pin 1984103C1)

1шт.

26

107784A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - drum lift, 4 (102) ID x 10-5/8 inch (269 mm) stroke, parts list page 8-42

2шт.

27

107785A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - drum tilt, 4 (102) ID x 7-1/4 inch (185 mm) stroke, parts list page 8-72

1шт.

28

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street (Replaces elbow 9409931) 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

6шт.

29

1983691C1

SWITCH

- kickback control, not shown (see note)

3шт.

Replace 1983691C1 with the following: 111669A1 kit, which includes 112291A1 switch port cover (3), 238-6018 O-ring (3), 1546498C1 switch (3), 1546432C1 bracket - lift switch (2), 1546433C1 bracket - tilt switch (1), 413-516 bolt (6), 492-11031 lock washer (6), 495-11034 flat washer (6), 425-105 nut (6), and 495-81202 flat washer (6). See page 4-18 or 4-20 for parts.

1шт.

30

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

Not shown -115, 90 Duro, .674" ID x .103" Thk

1шт.

31

461-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch, not shown

4шт.

32

112291A1

COVER

- switch port

3шт.

33

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.
