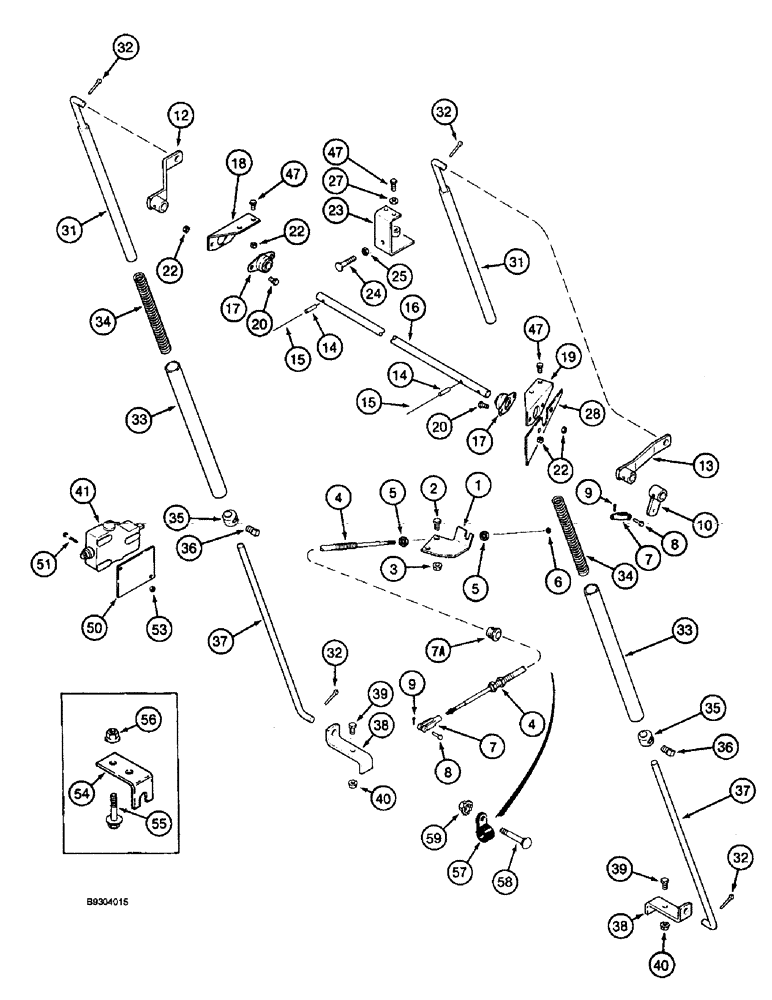

Запчасти Case IH 2055 (9A-66) - HEIGHT CONTROL LINKAGE (13) - PICKING SYSTEM

1

1984034C1

BRACKET

- cable adjustment

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

1349864C1

CABLE,4064mm L

ASSEMBLY - height control

2шт.

5

425-157

JAM NUT,Jam, 7/16"-20, G5

4шт.

6

NSS

NOT SOLD SEPARAT

NUT - hex jam, no. 10-32

2шт.

7

1338454C2

CLEVIS

YOKE - cable

4шт.

7a

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- cable

1шт.

8

427-3103

CLEVIS PIN,4.78mm OD x 26.19mm L

PIN - clevis, 3/16 x 1-1/32 inch, hardened

4шт.

9

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4шт.

10

1984026C1

ARM

- cable and stop

1шт.

12

1982690C1

ARM

- pivot, large offset

1шт.

13

1982715C1

ARM

- pivot, small offset

1шт.

14

21997R1

LOCK PIN,1/4" x 1", Slotted

Pin, 1/4" x 1", Slotted

3шт.

15

1329485C2

ELECTRICAL WIRE

WIRE - pin retaining

3шт.

16

1983199C1

SHAFT,15.88mm OD x 668.6mm L

- pivot

1шт.

17

164864C91

FLANGE,15.89mm ID

BEARING - flange, 5/8 inch bore

2шт.

18

1982685C1

ANGLE BAR

ANGLE - mounting, bearing, right-hand

1шт.

19

1982684C1

ANGLE BAR

ANGLE - mounting, bearing, left-hand

1шт.

20

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

23

1982722C1

SUPPORT

BRACKET - stop

1шт.

24

28766R1

BOLT

BOLT - weld, 3/8 NC x 1-3/4 inch

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

27

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

2шт.

28

1990264C1

PLATE

- filler

1шт.

31

670890R91

ROD

- push, upper

2шт.

32

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

33

669058R1

TUBE,30.2 mm OD, 406.5 mm Length

- spring

2шт.

34

523677R1

SPRING

- push rod

2шт.

35

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSEMBLY - locking

2шт.

36

485-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW - set, square head, 1/2 NC x 5/8 inch, cup point

2шт.

37

1982717C1

ROD

- push, lower

2шт.

38

1982738C1

ANGLE

- control

2шт.

39

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

40

231-5146

FLANGE NUT,3/8"-16

2шт.

41

REF

INSTRUCTION

VALVE ASSEMBLY - height control, see pages 8-38 and 8-40 for correct assembly and parts list

2шт.

47

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

50

1988976C1

PLATE

- rubber, valve isolation

2шт.

51

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

53

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

54

1988977C2

SUPPORT

BRACKET - cable anchor, if used

2шт.

55

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, if used

4шт.

56

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, if used

4шт.

57

515-25254

CLAMP,1", Insul, 1/2" Bolt

Cable retaining 1", Insul, 1/2" Bolt

2шт.

58

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

59

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
