Запчасти Case IH 2055 (9A-62) - PLANT LIFTER EXTENSION - METAL (13) - PICKING SYSTEM

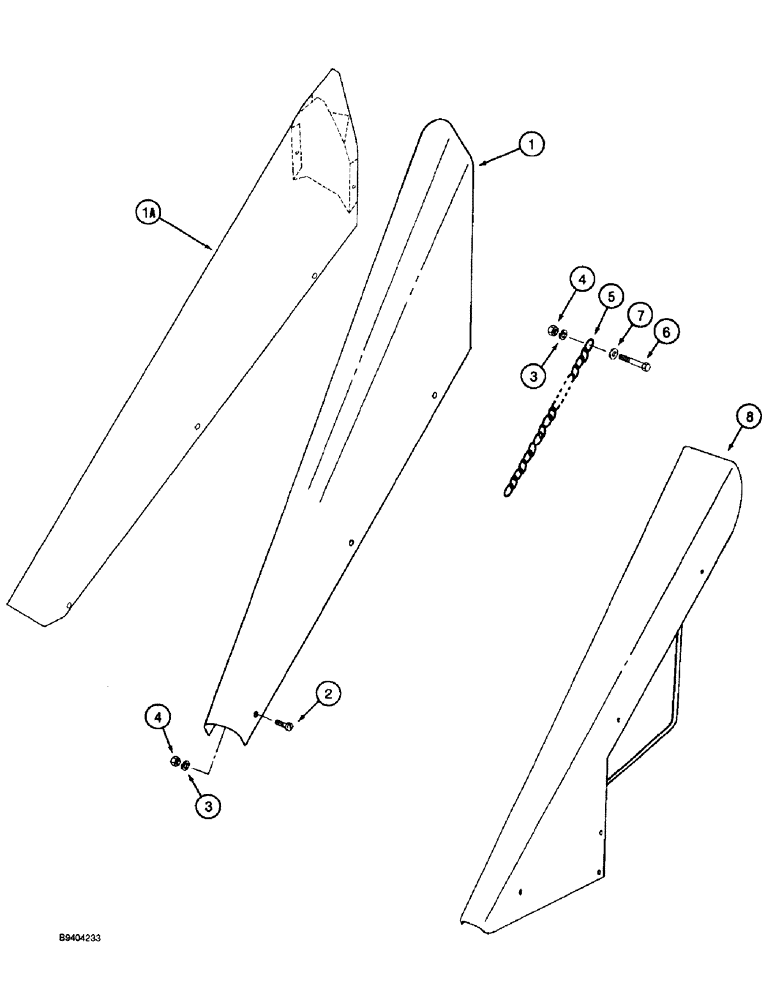

Схема запчастей Case IH 2055 - (9A-62) - PLANT LIFTER EXTENSION - METAL (13) - PICKING SYSTEM
3
2
3
1
4
1a
8
7
4
5
6

Артикул

Название

Примечание

Количество

1

87758C1

GUARD

SHIELD - body, without baffle, if used (8-10)

1шт.

1a

120500A1

EXTENSION

SHIELD - body, with internal baffle, if used (8-10)

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

1шт.

2

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

- cross recess, truss head, 5/16 NC x 3/4 inch, if used

1шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

5

199217C3

CHAIN (AG)

CHAIN - lifter (replaces lifter chain 199217C2)

1шт.

6

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

7

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

8

674807R2

DIVIDER

BODY - metal, lifter see page 9A-58, item 9

1шт.

Выбрано товаров: 10
