Запчасти Case IH 2055 (9A-60) - PLANT LIFTER - METAL, RIGHT-HAND, PRIOR TO P.I.N. JJC0155439 (13) - PICKING SYSTEM

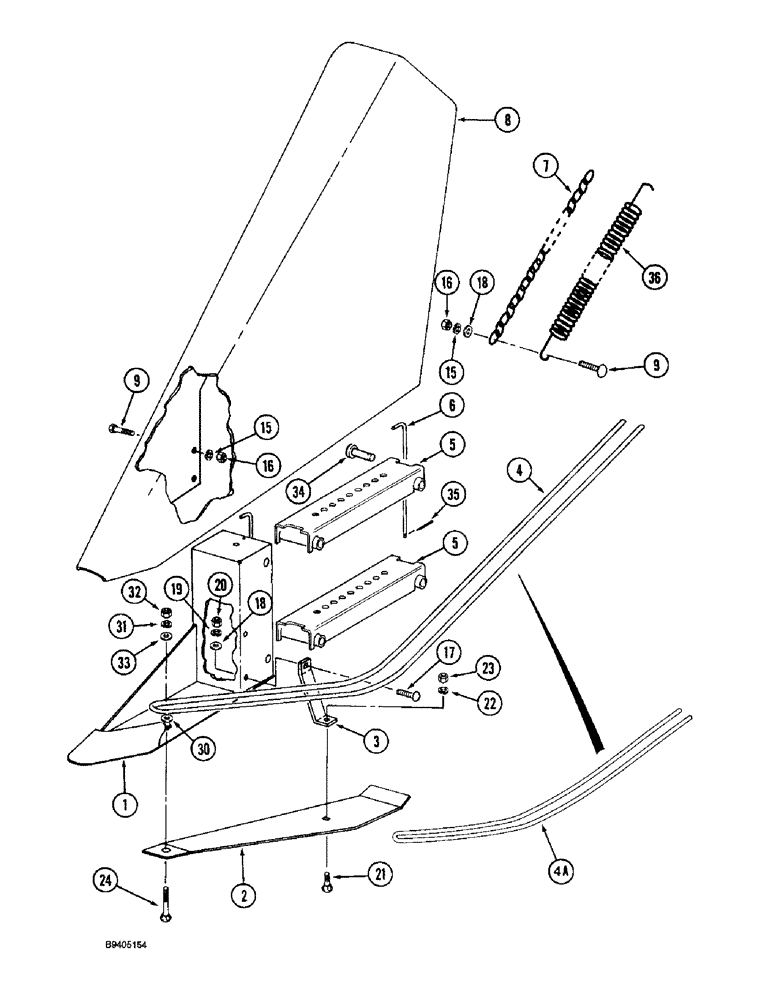

Схема запчастей Case IH 2055 - (9A-60) - PLANT LIFTER - METAL, RIGHT-HAND, PRIOR TO P.I.N. JJC0155439 (13) - PICKING SYSTEM
9
3
5
21
36
15
7
30
32
31
24
19
16
16
34
20
9
22
1
17
2
18
6
5
4a
33
8
15
23
18
35
4

Артикул

Название

Примечание

Количество

87327C91

DIVIDER ASSY.

LIFTER ASSEMBLY - plant, right-hand

1шт.

1

216960C2

SHOE

- lifter

1шт.

2

216970C3

LARGE PLATE

PLATE - skid

1шт.

3

216972C1

SUPPORT

- skid plate

1шт.

4

674822R1

TUBE

ROD - lifter, standard, prior to P.I.N. JJC0155439

1шт.

4a

1345016C1

ROD

- lifter, hardened, optional, prior to P.I.N. JJC0155439, not shown

1шт.

5

220229C6

SUPPORT

BRACKET - lifter (replaces lifter bracket 220229C4)

2шт.

6

674820R1

PIN,4.76mm OD

- shoe

2шт.

7

87421C1

CHAIN,496mm L

- lift

1шт.

8

674808R2

DIVIDER

BODY - metal, lifter

1шт.

ref # 8 674808r2, all lifter bodies are now plastic, hch

1шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

18

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

21

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

425-106

NUT,3/8"-16, Cl 5

1шт.

24

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

1шт.

30

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

3шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

32

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

33

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

- flat, 17/32 x 1-3/4 x 11/64 inch

1шт.

34

439-1868

HEADED PIN,12.7mm OD x 107.25mm L

PIN - headed, 1/2 x 4-1/4 inch, grade 2

4шт.

35

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

36

655919R1

SPRING

- lifter

1шт.

Выбрано товаров: 29
