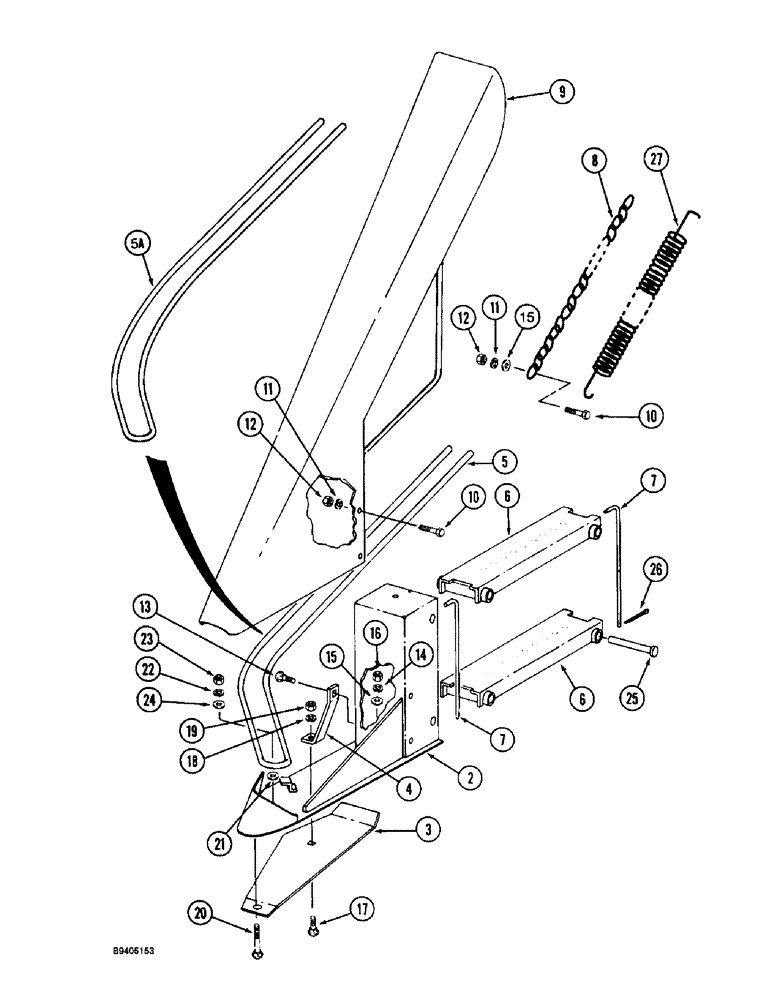

Запчасти Case IH 2055 (9A-58) - PLANT LIFTER - METAL, LEFT-HAND, PRIOR TO P.I.N. JJC0155439 (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
87326C91
DIVIDER ASSY.
LIFTER ASSEMBLY - plant, left-hand
1шт.
2
216959C2
SHOE
- lifter
1шт.
NOTE:REF#2 POLY WEAR SKID PLATES FOR THIS SHOE ARE TO BE ORDERED FROM DIRECT SHIP.
1шт.
3
216969C3
LARGE PLATE
PLATE - skid
1шт.
4
216972C1
SUPPORT
- skid plate
1шт.
5
674821R1
ROD
- lifter, standard, prior to P.I.N. JJC0155439
1шт.
5a
1345015C1
ROD
- lifter, hardened, optional, prior to P.I.N. JJC0155439
1шт.
6
220229C6
SUPPORT
BRACKET - lifter (replaces lifter bracket 220229C4)
2шт.
7
674820R1
PIN,4.76mm OD
- shoe
2шт.
8
87421C1
CHAIN,496mm L
- lift
1шт.
9
674807R2
DIVIDER
BODY - metal, lifter
1шт.
10
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
BODY - hex, 5/16 NC x 1 inch
3шт.
12
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
3шт.
13
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
BOLT - carriage, 5/16 NC x 3/4 inch
1шт.
15
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 3/32") 5/16"
2шт.
16
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
1шт.
17
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - carriage, 3/8 NC x 1 inch
1шт.
18
492-11038
LOCK WASHER,3/8"
1шт.
19
425-106
NUT,3/8"-16, Cl 5
1шт.
20
433-828
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5
BOLT - carriage, 1/2 NC x 1-3/4 inch
1шт.
21
495-81021
WASHER,17/32" x 1" x .120"
- flat, 17/32 x 1 x 7/64 inch
3шт.
22
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
23
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
1шт.
24
495-81164
WASHER,0.53" ID x 1.75" OD x 0.18" Thk
- flat, 17/32 x 1-3/4 x 11/64 inch
1шт.
25
439-1868
HEADED PIN,12.7mm OD x 107.25mm L
PIN - headed, 1/2 x 4-1/4 inch, grade 2
4шт.
27
655919R1
SPRING
- lifter
1шт.
Выбрано товаров: 29
