Запчасти Case IH 2055 (2-10) - AIR INDUCTION SYSTEM (01) - ENGINE

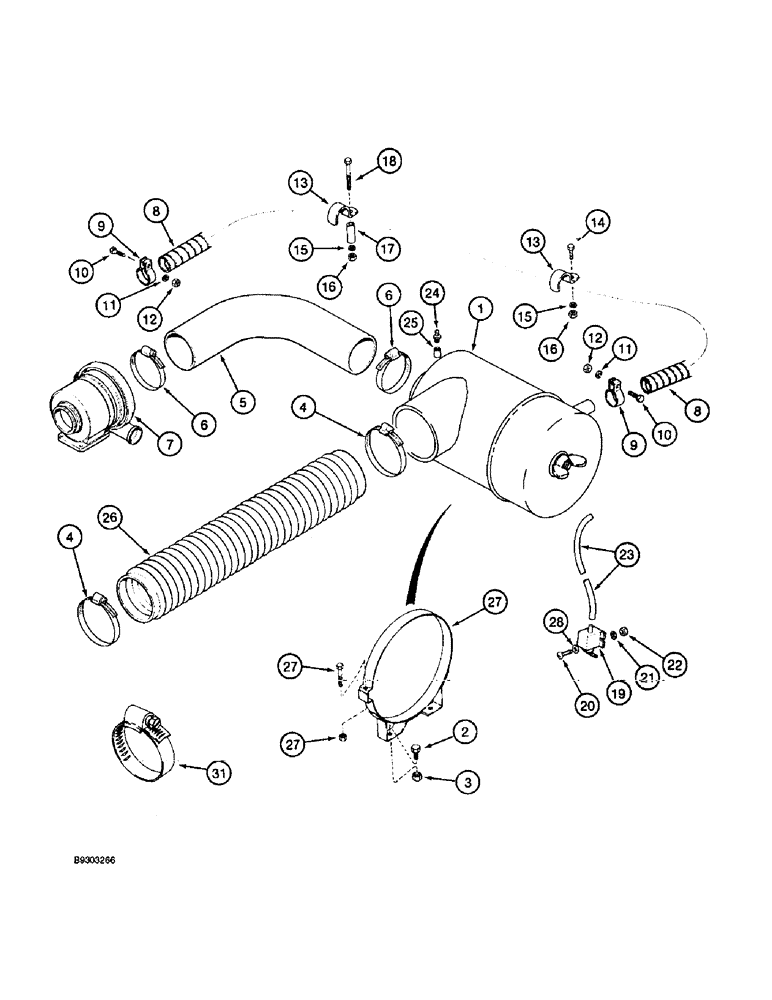

Схема запчастей Case IH 2055 - (2-10) - AIR INDUCTION SYSTEM (01) - ENGINE
15
16
14
12
8
13
5
20
4
6
19
10
10
27
31
7
24
17
28
8
11
13
27
22
9
15
3
26
6
25
27
11
16
12
23
2
21
9
18
4
1

Артикул

Название

Примечание

Количество

1

1547900C2

AIR CLEANER

CLEANER ASSEMBLY - air, engine, parts list page 2-12

1шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

278053R91

HOSE CLAMP,#96, 5.56/6.50 Type F Worm, W/liner

CLAMP - hose, adj, No. 80, type F

2шт.

5

1988891C1

LARGE HOSE

HOSE - air cleaner outlet

1шт.

6

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 4.25/5.125 HD Worm, W/liner

1шт.

7

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, parts list page 2-22

1шт.

8

1546057C1

TUBE,38.1 mm ID, 1730 mm Length

- aspirator, flex metal

1шт.

9

1275854C1

CLAMP

- aspirator tube

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type (Replaces clamp 26613R1) 1 7/8", Insul, 1/2" Bolt

2шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.

17

580883R1

SPACER,3/8" Pipe x 3 1/4"

- 1/2 x 3-1/4 inch

1шт.

18

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

1шт.

19

533917C1

GAUGE

- restriction, air

1шт.

20

440-10820

SCREW,Cross Pan Hd, #8-32 x 1 1/4"

- machine, pan Phillips, No. 8 NC x 1-1/4 inch

2шт.

21

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

22

225-14108

NUT,#8-32

- hex, No. 8 NC

2шт.

23

84410C1

LARGE HOSE

HOSE - restriction, 25-13/64 inch (640 mm) long, cut from 990015C1 bulk hose, see below

1шт.

24

533916C1

FITTING

CONNECTOR - restriction gauge hose

1шт.

25

217-1100

UNION,1/8" - 27 NPT x 1/8" - 27 NPT

COUPLING - pipe, 1/8 inch

1шт.

26

1990303C1

INTAKE AIR HOSE,152.00 mm ID x 820.00 mm

HOSE - inlet, air cleaner, 32-1/4 inch (820 mm) long

1шт.

27

1998899C1

SUPPORT

BRACKET - air cleaner mounting, includes hardware

2шт.

28

495-21019

WASHER,#8

2шт.

31

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 5.25/6.125 HD Worm, W/liner

1шт.

990015C1

LARGE HOSE

HOSE - bulk, 3/32 (2.5) ID x 300 inch (7620 mm) long

1шт.

Выбрано товаров: 30
