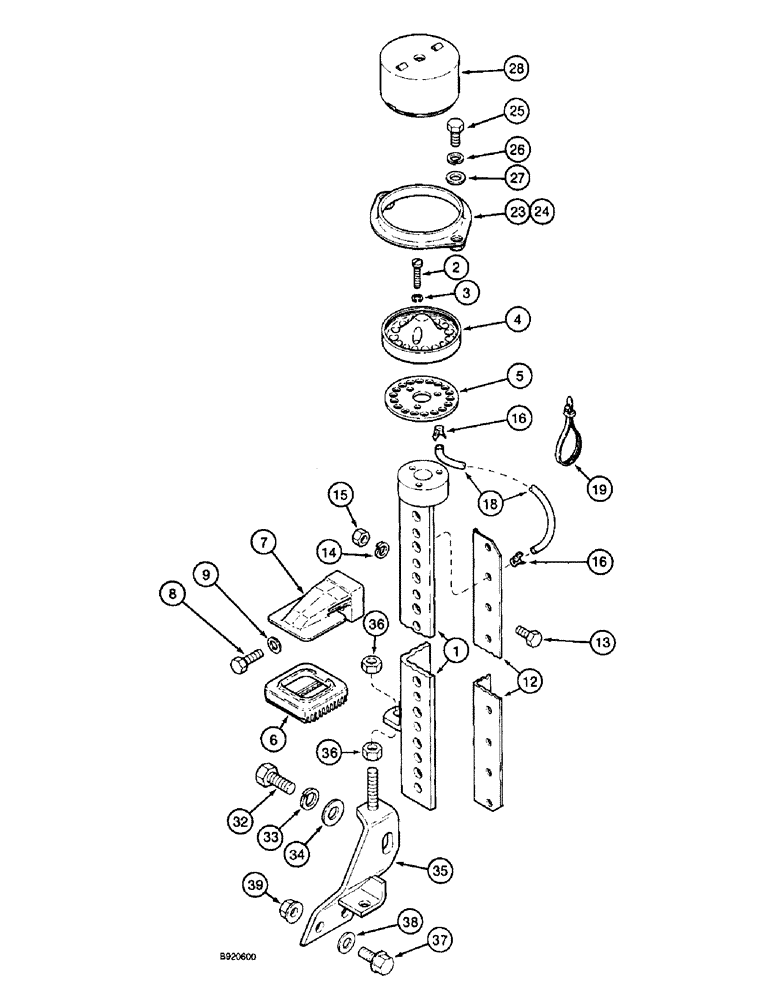

Запчасти Case IH 2055 (9A-54) - MOISTENER STAND ASSEMBLY AND SUPPORT (13) - PICKING SYSTEM

1990262C1

PACKAGE,SERVICE

STAND ASSEMBLY - moistener, left-hand

1шт.

1990263C1

PACKAGE,SERVICE

STAND ASSEMBLY - moistener, right-hand

1шт.

1

1982682C1

SUPPORT

- moistener stand, left-hand

1шт.

1

1982683C1

SUPPORT

- moistener stand, right-hand

1шт.

2

261-84516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - self-tapping, pan Phillips, no. 10 NF x 1 inch

3шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

4

1349998C1

CUP

- water distributor

1шт.

5

1982416C1

PLATE

- moistener tube retainer

1шт.

6

1338720C2

PAD

- spindle moistener (replaces pad 1338720C1)

18шт.

7

214500C1

HOLDER

SUPPORT - moistener pad

18шт.

8

27971R1

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 8

- hex, 5/16 NC x 1-1/8 inch, grade 8

18шт.

9

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

18шт.

12

1329244C1

SHIELD

- moistener tube

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

16

669838R1

SPRING CLIP

- tubular clip, 1/4 inch

36шт.

18

109261A1

TUBE,4.06 mm ID, 6.35 mm OD, 102 mm Length

- distributor to pad, no. 1 (4 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 2 (6 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 3 (7 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 4 (9 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 5 (11 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 6 (13 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 7 (14 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 8 (16 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 9 (17 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 10 (19 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 11 (21 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 12 (23 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 13 (24 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 14 (26 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 15 (28 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 16 (30 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 17 (32 inch long)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, no. 18 (33 inch long)

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, nylon (replaces strap 533959R1)

3шт.

670199R2

PIPE,0.25" OD

TUBE - bulk, 1/4 (6) OD x 600 inch (15240 mm) long, use to make item 18 tube

1шт.

23

1982745C2

ADJUSTING PLATE

PLATE - adjusting, front

1шт.

24

1982747C2

ADJUSTING PLATE

PLATE - adjusting, rear

1шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

28

1338549C1

COVER

- water distribution

1шт.

32

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

34

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

35

1982695C4

SUPPORT

- moistener stand, left-hand (replaces supports 1982695C2 and 1982695C3)

1шт.

35

1982696C4

SUPPORT

- moistener stand, right-hand (replaces supports 1982696C2 and 1982696C3)

1шт.

36

425-106

NUT,3/8"-16, Cl 5

4шт.

37

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

38

95-81085

WASHER,13/32" x 1" x .179"

- flat, 13/32 x 1 x 11/64 inch

6шт.

39

231-5146

FLANGE NUT,3/8"-16

6шт.
