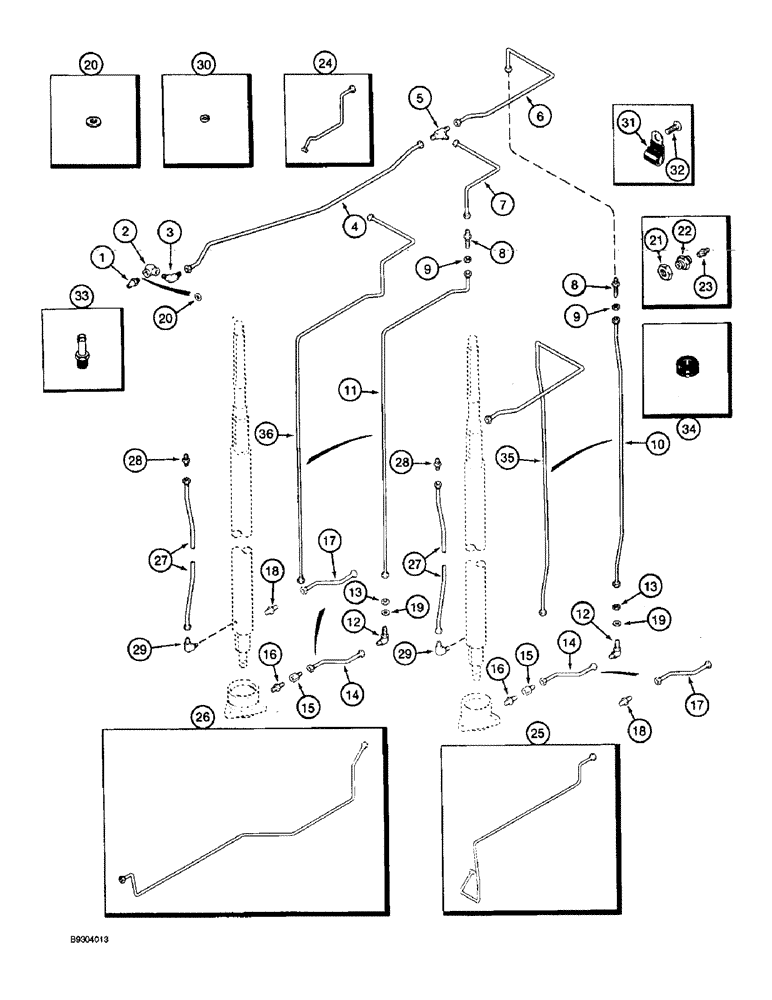

Запчасти Case IH 2055 (9A-46) - DRUM GREASE SYSTEM, 4 ROW WIDE, 5 ROW NARROW (13) - PICKING SYSTEM

1

217-117

FITTING,1/4" Hose x 1/4" NPTF, Fem, Barbed

CONNECTOR - straight barb hose, 1/4 x 1/4 inch (replaces connector 1339376C1)

1шт.

2

217-27

ELBOW,90 Degree, 1/4"-18 NPTF, Fem, Brass

- 90 degree, 1/4 inch female PT x female PT

1шт.

3

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

4

1984333C1

HYD TUBE

TUBE - rotor grease supply, right-hand

1шт.

5

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

1шт.

6

1984335C1

HYD TUBE

TUBE - rotor, upper front, right-hand, used with items 8-10, if used

1шт.

Quantity listed is per drum. Two-piece tube design may be replaced by one-piece tube on some models, see Refs. 35 and 36.

1шт.

7

1984337C1

HYD TUBE

TUBE - rotor, upper rear, right-hand, used with items 8, 9 and 11, if used

1шт.

Quantity listed is per drum. Two-piece tube design may be replaced by one-piece tube on some models, see Refs. 35 and 36.

1шт.

8

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

2шт.

Quantity listed is per drum. Two-piece tube design may be replaced by one-piece tube on some models, see Refs. 35 and 36.

1шт.

9

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF, if used

2шт.

Quantity listed is per drum. Two-piece tube design may be replaced by one-piece tube on some models, see Refs. 35 and 36.

1шт.

10

194338C1

GEAR

TUBE - lubrication supply, front, vertical, used with items 6, 8 and 9, if used

1шт.

Quantity listed is per drum. Two-piece tube design may be replaced by one-piece tube on some models, see Refs. 35 and 36.

1шт.

11

1984341C1

HYD TUBE

TUBE - lubrication supply, rear, vertical, used with items 7-9, if used

1шт.

Quantity listed is per drum. Two-piece tube design may be replaced by one-piece tube on some models, see Refs. 35 and 36.

1шт.

12

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 90 degree, 9/16-18 inch flare x bulkhead flare

2шт.

13

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

14

1982874C1

TUBE,0.375" OD

- grease, lower rear, if used

2шт.

15

218-463

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Female NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch female PT, if used

2шт.

16

1982834C1

FITTING

ADAPTER - straight, special, 3.78 mm orifice, brass, used with 1982874C1 tube only, if used

2шт.

17

1546332C2

TUBE,0.375" OD, 176.08 mm Length

- grease, lower rear, if used (replaces tube 1546332C1)

2шт.

18

1994951C1

FITTING

ADAPTER - straight, special, 2.06 mm orifice, used with 1546332C2 tube only, if used

2шт.

18

122595A1

ADAPTER

- straight, special, 3.81 mm orifice, with V-cuts on hex points, used with 1546332C2 tube, if used

2шт.

19

495-81170

WASHER,0.59" ID x 0.94" OD x 0.02" Thk

- flat, 19/32 x 15/16 x 1/64 inch

2шт.

20

495-11059

WASHER,9/16"

- flat, 19/32 x 1-5/32 x 3/32 inch

1шт.

21

F53473

LOCK NUT,1/8-27 NPSM

- special, lubrication hose

3шт.

22

1990056C1

FITTING

ADAPTER - straight, 7/16-20 x 1/8 inch PT

3шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

24

1988702C1

HYD TUBE

TUBE - gear, upper front, right-hand

1шт.

25

1988704C1

HYD TUBE

TUBE - gear, lower front, right-hand

1шт.

26

1988706C2

HYD TUBE

TUBE - gear, upper rear

1шт.

27

1984408C1

HYD TUBE,0.375" OD

TUBE - rotor grease

2шт.

28

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

2шт.

29

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

2шт.

30

1988718C1

SPACER

- grease inlet

1шт.

31

A38799

CLAMP

- P-type, tube

2шт.

32

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

2шт.

33

217-180

FITTING,3/8" Hose Barb x 1/4" Female NPTF

ADAPTER - straight, 3/8 barb end x 1/4 inch female PT, if used

1шт.

34

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, supply tube, 3/4 inch ID (replaces grommet A145925)

2шт.

35

113687A1

HYD TUBE

TUBE - rotor, front lubrication supply, may replace two-piece tube design, items 6 and 8-10, on some models, if used

1шт.

36

113682A1

HYD TUBE,0.375" OD, 927, 352 mm Length

TUBE - rotor, rear lubrication supply, may replace two-piece tube design, items 7-9 and 11, on some models, if used

1шт.
