Запчасти Case IH 2055 (9A-44) - CAM LUBRICATION (13) - PICKING SYSTEM

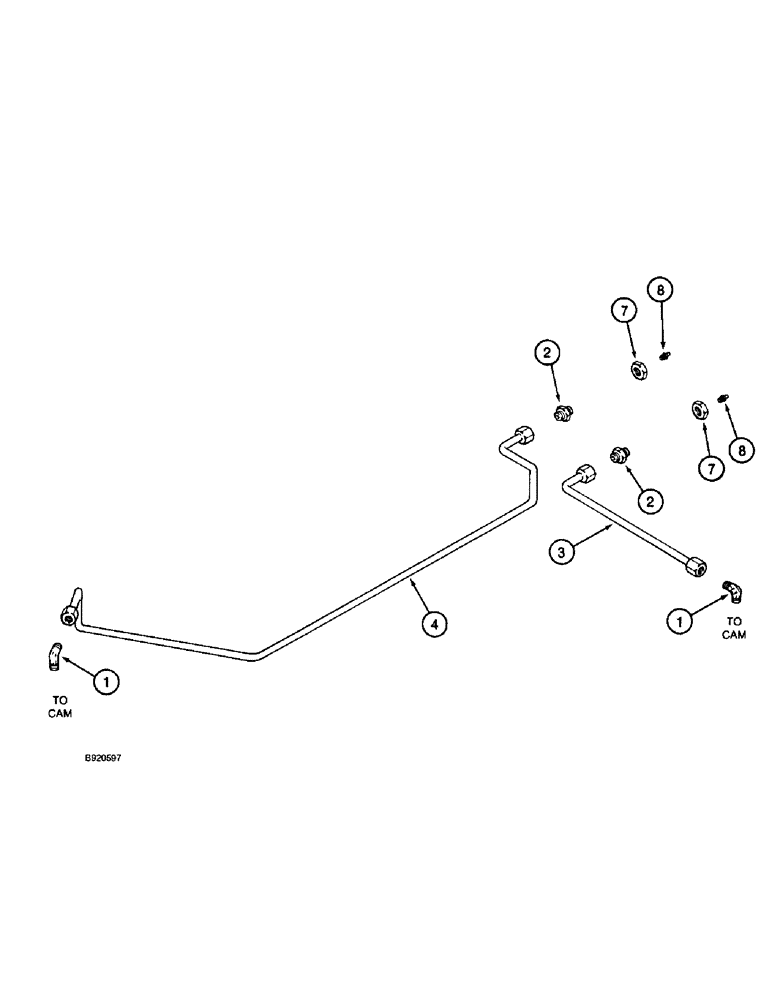

Схема запчастей Case IH 2055 - (9A-44) - CAM LUBRICATION (13) - PICKING SYSTEM
4
3
8
1
7
1
2
7
8
2

Артикул

Название

Примечание

Количество

1

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

2шт.

2

1990056C1

FITTING

ADAPTER - straight, 7/16-20 x 1/8 inch PT

2шт.

3

1982875C1

HYD TUBE,0.25" OD

TUBE - cam lubrication, front

1шт.

4

1982878C1

HYD TUBE

TUBE - cam lubrication, rear

1шт.

7

F53473

LOCK NUT,1/8-27 NPSM

- special, lubrication hose

2шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

Выбрано товаров: 6
