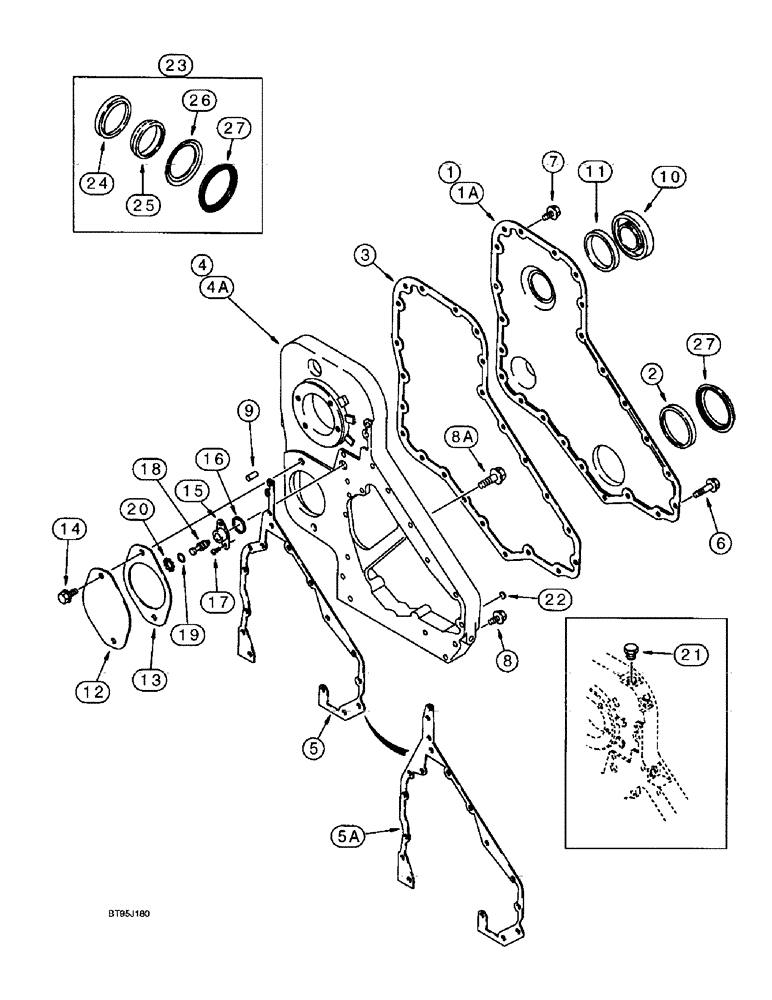

Запчасти Case IH 2055 (2-08) - FRONT GEAR COVER, 6TA-830 ENGINE (01) - ENGINE

1

J924422

COVER ASSY

COVER - gear, front, replaces J916192 cover, prior to engine serial number 45075642

1шт.

1a

J926838

COVER

- gear, front, high PTO, engine serial number 45075642 and after

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order item 23, A77790 kit below

1шт.

3

J917779

GASKET,0.98mm Thk

- front gear cover

1шт.

3a

J823494

SEALANT

GASKET - silicone liquid sealant, 3 ounce tube, apply between front gear cover and timing gear housing, not shown, engine serial number 45075642 and after

1шт.

4

J917316

MOTOR HOUSING

HOUSING - gear, prior to engine serial number 45075642

1шт.

4a

J926719

MOTOR HOUSING

HOUSING - gear, high PTO, engine serial number 45075642 and after

1шт.

5

J281721

GASKET

- housing, gear, replaces J914303 gasket, prior to engine serial number 45075642

1шт.

5a

J926757

GASKET

- housing, gear, engine serial number 45075642 and after

1шт.

6

J926863

FLANGE BOLT

BOLT - hex flange, 8 - 1.25 x 50 mm, class 10.9, replaces 845-8050 bolt

6шт.

7

J924962

FLANGE BOLT

BOLT - hex flange, special, 8 - 1.25 x 16 mm, replaces 845-8016 bolt

17шт.

8

J926846

FLANGE BOLT

BOLT - hex flange, 8 - 1.25 x 20 mm, class 10.9, replaces 845-8020 bolt

5шт.

8a

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

Timing gear housing to block Hex Flg, M12 x 50, 10.9

4шт.

9

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

10

J903463

PLUG,M63 x 5

- front access

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

12

J914868

COVER

PLATE - access cover, flat

1шт.

13

J919601

GASKET

- access cover plate

1шт.

14

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

15

J919683

HOUSING

- timing pin

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

19

J913994

O-RING

- sealing

1шт.

20

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

21

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

3шт.

22

A77552

PLUG

- expansion, 29/64 inch diameter

1шт.

23

A77790

SEAL KIT

KIT - oil seal, crankshaft front

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

25

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

26

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

27

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust

1шт.
