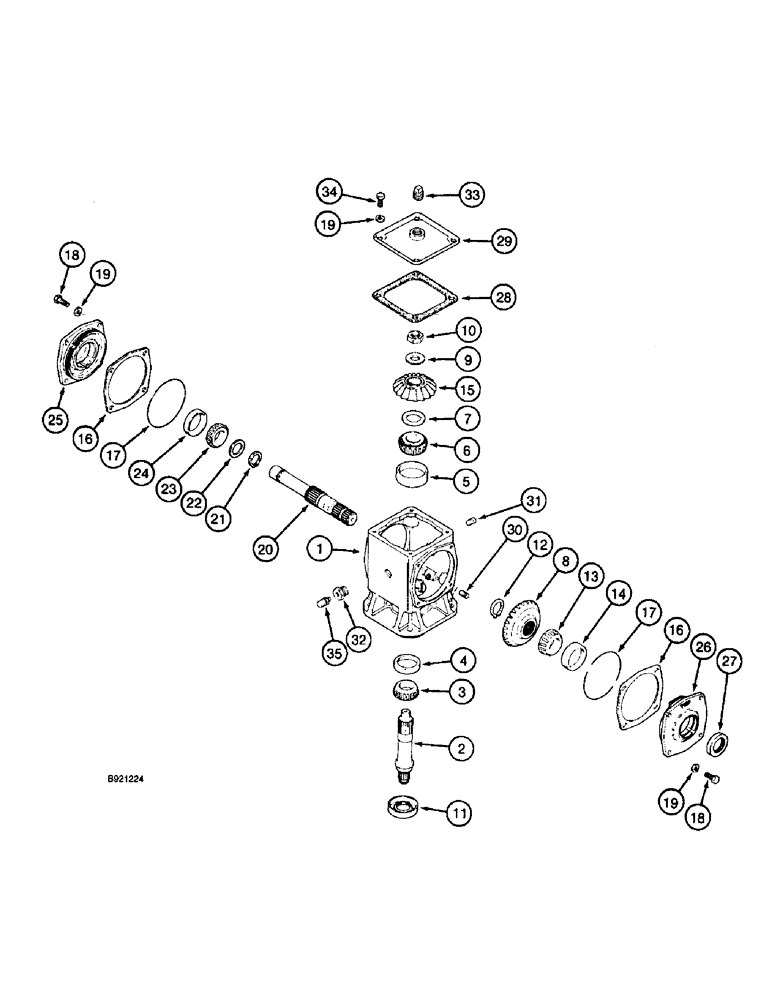

Запчасти Case IH 2055 (9A-32) - GEARBOX, DRUM DRIVE, LEFT-HAND (13) - PICKING SYSTEM

1988646C2

GEARBOX ASSY

GEARBOX ASSEMBLY - drum drive, left-hand

1шт.

338161A2R

REMAN-GEARBOX

2055 (4/93-), Reman for New PN 1988646C2

1шт.

338161A2C

CORE-GEARBOX

Return Number

1шт.

1

1982406C2

HOUSING

- drum drive gearbox

1шт.

2

1982402C1

SHAFT

- output, vertical, gearbox

1шт.

3

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING - tapered roller

1шт.

4

536054R1

BEARING CUP,60mm OD x 11.94mm W

CUP - tapered roller bearing

1шт.

5

165964R1

BEARING CUP

CUP - tapered roller bearing

1шт.

6

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING - tapered roller

1шт.

86814C1

SHIM KIT

KIT - shim, bevel gear

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 0.150 inch, 1 in kit

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 0.138 inch, 1 in kit

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 0.125 inch, 1 in kit

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch, 4 in kit

1шт.

8

223843C1

PINION

GEAR - bevel, drum drive output, 24 teeth

1шт.

9

1982956C1

WASHER

- flat, special

1шт.

10

185216C1

LOCK NUT

- hex, self-locking, 7/8 inch NF

1шт.

11

1990323C1

SEAL,38.05mm ID x 68.33mm OD x 12.7mm Thk

- oil, vertical shaft

1шт.

12

103-16137

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

1шт.

13

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - tapered roller, 1-3/8 inch ID (replaces bearing G57452)

1шт.

14

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller (Replaces cup G57451)

1шт.

15

223844C1

PINION

GEAR - bevel, drum drive input, 19 teeth

1шт.

86815C1

SHIM KIT

KIT - shim, gear box

2шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch, 2 in kit

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, 2 in kit

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, 2 in kit

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.011 inch, 2 in kit

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch, 1 in kit

1шт.

17

238-5157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

2шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

19

492-11038

LOCK WASHER,3/8"

12шт.

20

1286312C2

SHAFT

- 261 mm long, cross, drum drive (replaces shaft 1286312C1)

1шт.

21

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

22

223866C1

WASHER

WASHER - flat, 32 x 45 x 2.5 mm

1шт.

23

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

BEARING - tapered roller, 1-1/4 inch ID

1шт.

24

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP - tapered roller bearing, 2-7/16 inch OD

1шт.

25

1286294C1

BEARING CAP,55 mm ID x 125.374 mm OD x 21, 15 mm

- bearing

1шт.

26

1286295C1

BEARING CAP

- bearing, shaft end

1шт.

27

1990325C1

SEAL,34.85mm ID x 57.25mm OD x 8mm Thk

- oil, cross shaft

1шт.

28

86822C2

GASKET,1.58mm Thk

- cover, housing

1шт.

29

223857C1

COVER

- drum drive housing

1шт.

30

86819C1

PLUG

- square head, magentic, 1/4 inch PT

1шт.

31

221-841

PLUG

- hex socket, 1/4 inch PT, automotive pipe

1шт.

32

28796R1

ORIFICE

REDUCER - straight, 1/2 x 1/8 inch PT

1шт.

33

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket, 1/2 inch PT

1шт.

34

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

35

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch (replaces fitting 61991R91)

1шт.
