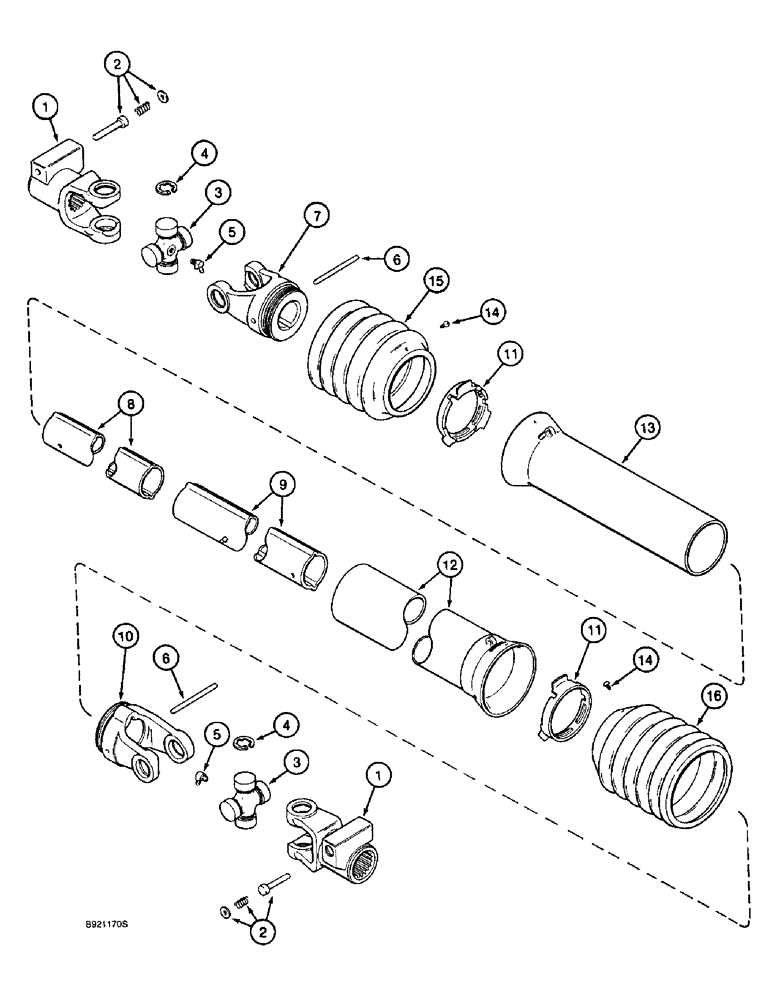

Запчасти Case IH 2055 (9A-15A) - CROSS DRUM DRIVE SHAFT, 5 ROW WIDE (13) - PICKING SYSTEM

1984234C2

SHAFT

ASSEMBLY - cross drum drive

3шт.

1

1984240C1

COUPLING

YOKE - cross shaft splined

2шт.

2

1281458C1

KIT

- pin

2шт.

1984235C1

SPIDER ASSY.

KIT - universal joint

2шт.

3

NSS

NOT SOLD SEPARAT

CROSS - universal joint, with bearing, order 1984235C1 kit

1шт.

4

NSS

NOT SOLD SEPARAT

RING - snap, bearing lock, order 1984235C1 kit

4шт.

5

NSS

NOT SOLD SEPARAT

FITTING - grease, 67-1/2 degree, order 1984235C1 kit

1шт.

6

30868R1

LOCK PIN,M8 x 65 Slotted

PIN - roll, 8 x 65 mm

2шт.

7

1984241C1

COUPLING

YOKE - inner shaft

1шт.

8

1984243C1

TUBE,34.5 mm OD

- inner profile

1шт.

9

1988779C1

TUBE,41 mm OD, 375 mm Length

- outer profile

1шт.

10

1984242C1

COUPLING

YOKE - outer shaft

1шт.

1984219C1

PACKAGE

KIT - grease fittings, package of 10, not shown

1шт.

1984257C1

PACKAGE

KIT - cross shaft shield, not shown

1шт.

11

1281450C1

RING

- bearing

2шт.

12

NSS

NOT SOLD SEPARAT

SHIELD - outer, order 1984257C1 kit

1шт.

13

NSS

NOT SOLD SEPARAT

SHIELD - inner, order 1984257C1 kit

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - cone shield, order 1984257C1 kit

2шт.

14a

NSS

NOT SOLD SEPARAT

DECAL - warning, not shown, order 1984257C1 kit

1шт.

15

NSS

NOT SOLD SEPARAT

SHIELD - cone, 5 rib, order 1984257C1 kit

1шт.

16

NSS

NOT SOLD SEPARAT

SHIELD - cone, 8 rib, order 1984257C1 kit

1шт.
