Запчасти Case IH 2055 (9A-08) - MAIN DRUM DIVE SHAFT 5 ROW WIDE OR NARROW-LEFT-HAND (13) - PICKING SYSTEM

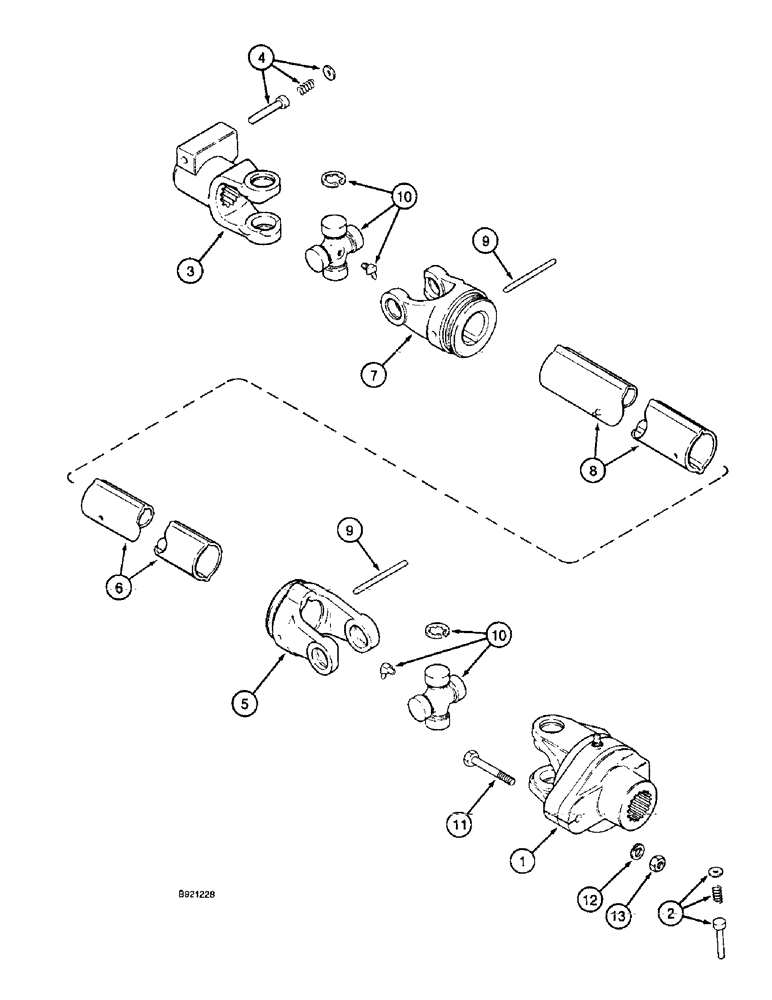

Схема запчастей Case IH 2055 - (9A-08) - MAIN DRUM DIVE SHAFT 5 ROW WIDE OR NARROW-LEFT-HAND (13) - PICKING SYSTEM
12
2
1
9
9
10
8
11
6
5
10
3
13
7
4

Артикул

Название

Примечание

Количество

1984214C1

SHAFT

ASSEMBLY - drum drive, left-hand, see page 9A-10 for right-hand shaft assembly

1шт.

1

1984215C1

COUPLING

YOKE ASSEMBLY - shearbolt clutch

1шт.

2

1281458C1

KIT

- pin

2шт.

3

1984216C1

COUPLING

YOKE ASSEMBLY - drive shaft, splined

1шт.

4

1281458C1

KIT

- pin

2шт.

5

1984217C1

COUPLING

YOKE - inner shaft

1шт.

6

1984236C1

TUBE,39.5 mm OD

- shaft, inner profile

1шт.

7

1984218C1

COUPLING

YOKE - outer shaft

1шт.

8

1984237C1

TUBE,48 mm OD

- shaft, outer profile

1шт.

9

838-31090

PIN,10mm OD x 90mm L, Coiled

- roll, 10 x 90 mm

2шт.

10

700706779

SPIDER ASSY.

KIT - universal joint

2шт.

11

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

1546317C1

SHAFT

ASSEMBLY - reverse/non-reverse drum drive, left-hand, not shown, see page 9A-10 for right-hand shaft assembly

1шт.

1a

1546318C1

YOKE

ASSEMBLY - shearbolt clutch, not shown

1шт.

2a

87547C1

KIT

- pin

2шт.

3

1984216C1

COUPLING

YOKE ASSEMBLY - drive shaft, splined

1шт.

4

1281458C1

KIT

- pin

2шт.

5

1984217C1

COUPLING

YOKE - inner shaft

1шт.

6a

1546319C1

TUBE,620 mm Length

- shaft, inner profile, not shown

1шт.

7

1984218C1

COUPLING

YOKE - outer shaft

1шт.

8a

1546320C1

TUBE,595 mm Length

- shaft, outer profile, not shown

1шт.

9

838-31090

PIN,10mm OD x 90mm L, Coiled

- roll, 10 x 90 mm

2шт.

10

700706779

SPIDER ASSY.

KIT - universal joint

2шт.

1984219C1

PACKAGE

KIT - grease fittings, package of 10, included with 1984214C1 and 1546317C1 shaft assemblies

1шт.
