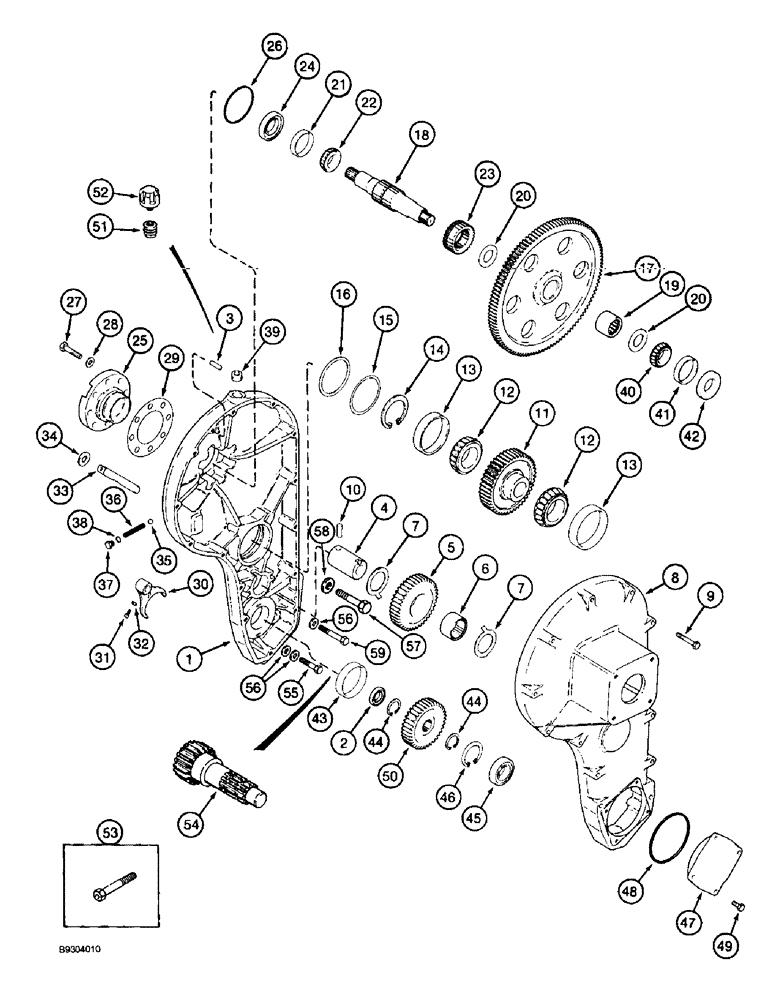

Запчасти Case IH 2055 (9A-04) - DRUM DRIVE ASSEMBLY (13) - PICKING SYSTEM

1997703C1

DRIVE

1шт.

DRIVE ASSEMBLY - drum, used with 199770C1 transmission on page 6-42, prior to P.I.N. JJC0139015, no longer available, order 1349204C6 complete drum drive assembly with transmission, which consists of 120110A1 transmission assembly on page 6-42 and 119860A1 drum drive assembly (below)

1шт.

1997903C2

X

1шт.

DRIVE ASSEMBLY - drum, P.I.N. JJC0139015 - JJC0155050, used with 1997704C1 transmission on page 6-42 in 1349204C6 complete drum drive assembly with transmission, which consists of 120110A1 transmission assembly on page 6-42 and 119860A1 drum drive assembly (below)

1шт.

119860A3R

REMAN-GEARBOX

Reman for New PN 1997903C2

1шт.

119860A3C

CORE-GEARBOX

Return Number

1шт.

119860A1

TRANSMISSION

DRIVE ASSEMBLY - drum, used with 120110A1 transmission on page 6-42 in 1349204C6 complete drum drive assembly with transmission, no longer available, order drive assembly 119860A2 below

1шт.

119860A3R

REMAN-GEARBOX

Reman for New PN 119860A1

1шт.

119860A3C

CORE-GEARBOX

Return Number

1шт.

119860A2

TRANSMISSION

DRIVE ASSEMBLY - drum (replaces drive assembly 119860A1)

1шт.

119860A3R

REMAN-GEARBOX

2055 CASE IH COTTON EXPRESS COTTON PICKER, DRIVE ASSEMBLY - drum (4/93-), Reman for New PN 119860A2

1шт.

119860A3C

CORE-GEARBOX

Return Number

1шт.

1

1997563C1

HOUSING

ASSEMBLY - drum drive, no longer available, for service order 1349204C6 complete drum drive assembly with transmission, which consists of 120110A1 transmission and 119860A1 drum drive

1шт.

1

1997871C3

HOUSING

ASSEMBLY - used with 119860A1 drum drive

1шт.

1

1997871C4

HOUSING

ASSEMBLY - used with 119860A2 drum drive

1шт.

2

1997606C2

SEAL,36mm ID x 68.15mm OD x 8mm Thk

- oil

1шт.

3

37-1612

DOWEL,3/8" x 3/4"

PIN - dowel, 3/8 x 3/4 inch, hardened

2шт.

4

1997567C1

SHAFT

- idler

1шт.

5

1997568C1

PINION

GEAR - idler, 43 teeth

1шт.

6

1342679C1

NEEDLE BEARING

- idler, needle

1шт.

7

1342878C2

THRUST WASHER

WASHER - thrust

2шт.

8

1997564C2

COVER

- drum drive (replaces cover 1997564C1)

1шт.

9

326-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

14шт.

10

838-11236

LOCK PIN,12mm OD x 36mm L, Slotted

PIN - roll, 12 x 36 mm

1шт.

11

1342896C1

GEAR

- hydraulic motor input

1шт.

12

ST2194

BEARING, CONE

BEARING - tapered roller

2шт.

13

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP - tapered roller bearing, 4-5/16 inch OD

2шт.

14

100-21433

SNAP RING,4.331", Int, #433

Ring, Snap, 4.331", Int, #433

1шт.

15

1342900C1

SHIM,96mm ID x 109.5mm OD x 0.08mm Thk

(0.003"), Bearing 0.076mm Thk

1шт.

15

1342901C1

SHIM,96mm ID x 109.5mm OD x 0.13mm Thk

(0.005"), Bearing 0.127mm Thk

1шт.

15

1342902C1

SHIM,0.178mm Thk

(0.007"), Bearing 0.178mm Thk

1шт.

15

1997901C1

SHIM,0.762mm Thk

(0.030"), Bearing 0.762mm Thk

1шт.

16

1349011C1

BACKING PLATE

PLATE - shim backing

1шт.

17

87153C2

GEAR

- output, 121 teeth (replaces gear 87153C1)

1шт.

18

1342677C1

SHAFT

- output, drum drive

1шт.

19

A50606

NEEDLE BEARING,Needle, 44.45mm ID x 53.98mm OD x 38.1mm W

BEARING - needle, output gear

1шт.

20

390362R1

THRUST WASHER,44.63mm ID x 63mm OD x 3.16mm Thk

WASHER - thrust (replaces washer 1277389C1)

2шт.

21

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD

1шт.

22

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, 1-5/8 inch ID

1шт.

23

87151C1

COUPLING

- gear

1шт.

24

1990323C1

SEAL,38.05mm ID x 68.33mm OD x 12.7mm Thk

- oil

1шт.

25

1342671C2

CAGE

SUPPORT - bearing, upper

1шт.

26

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

27

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

28

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened, If used 17/32" x 1 1/16" x .134"

4шт.

29

1342903C1

SHIM,0.076mm Thk

(0.003"), Bearing 0.076mm Thk

1шт.

29

1342904C1

SHIM,0.127mm Thk

(0.005"), Bearing 0.127mm Thk

1шт.

29

1342905C1

SHIM,0.178mm Thk

(0.007"), Bearing 0.178mm Thk

1шт.

29

1997902C1

SHIM,0.762mm Thk

(0.030"), Bearing 0.762mm Thk

1шт.

30

115000A1

SHIFTER FORK

FORK - shift (replaces fork 395656R1)

1шт.

31

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW - set, 3/8 NF x 1 inch, shifter fork

1шт.

32

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

33

1342662C1

RAIL

- shifter

1шт.

34

1997906C1

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- shifter rail oil

1шт.

35

211-1012

BALL,3/8" Dia

- chrome alloy steel, 3/8 inch, grade 24

1шт.

36

121545C1

SPRING

- detent

1шт.

37

76349

PLUG,9/16" - 18 ORB

1шт.

39

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC, , If used Sq. Soc, 3/4"-14 NPTF

1шт.

40

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING - tapered roller

1шт.

41

165964R1

BEARING CUP

CUP - tapered roller bearing

1шт.

42

1997606C2

SEAL,36mm ID x 68.15mm OD x 8mm Thk

- oil, used with 1997903C2 drum drive assembly

1шт.

42

1997905C1

SEAL,34.92mm ID x 65.15mm OD x 9.5mm Thk

SEAL - oil, used with 199860A1 and 199860A2 drive assemblies

1шт.

43

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD

1шт.

44

A21619

CIRCLIP

RING - snap

2шт.

45

1342509C1

ROLLER BEARING,30 mm ID x 72 mm OD x 19 mm

- roller, 1342441C1 input shaft support, 1997903C2 drum drive assembly, see page 6-46 for shaft

1шт.

45

119777A1

ROLLER BEARING,30mm ID x 72mm OD x 19mm W

BEARING - roller, 119835A1 input shaft support, 119860A1 and 119860A2 drum drive assemblies

1шт.

46

800-2172

SNAP RING

Internal

1шт.

47

1342440C1

CAP

- input shaft bearing

1шт.

48

238-5254

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

1шт.

49

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

50

1342898C1

GEAR

- input, 39 teeth

1шт.

51

217-48

REDUCER,3/4" - 14 NPTF x 1/4" - 18 Fem NPTF

- 3/4 PT x 1/4 inch PT, if used

1шт.

52

1971726C1

BREATHER,1/4" - 18

- transmission oil level, if used

1шт.

53

114999A1

HOLLOW SCREW

BOLT - hex, hollow, 5/8 NC x 1-3/4 inch, lube passage, drum drive gear box, if used

1шт.

54

119835A1

PINION

SHAFT - gear, input pinion, 26 teeth, 119860A1 and 119860A2 drum drive assemblies, also shown on page 6-46, item 5

1шт.

55

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

Used with 119860A1 drum drive assembly Hex, 5/8"-11 x 1 3/4", G8, Full Thd

3-4шт.

55

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

Used with 119860A2 drum drive assembly Hex, M16 x 40, 10.9, Full Thd

4шт.

56

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

- flat, 21/32 x 1-5/16 x 3/32 inch, hardened, used with 119860A1 drum drive assembly

9шт.

56

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened, Used with 119860A2 drum drive assembly

9шт.

57

326-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

Used with 119860A1 drum drive assembly Hex, 3/4"-10 x 2 1/2", G8

2шт.

57

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 20 - 2.5 x 60 mm, class 10.9, Used with 119860A2 drum drive assembly

2шт.

58

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat, Used with 119860A1 drum drive assembly 13/16" x 1 1/2" x .134", HDN

2шт.

58

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, used with 119860A2 drum drive assembly

2шт.

59

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Used with 119860A1 drum drive assembly Hex, 5/8"-11 x 2", G8

1шт.

59

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Used with 119860A2 drum drive assembly Hex, M16 x 50, 10.9, Full Thd

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
