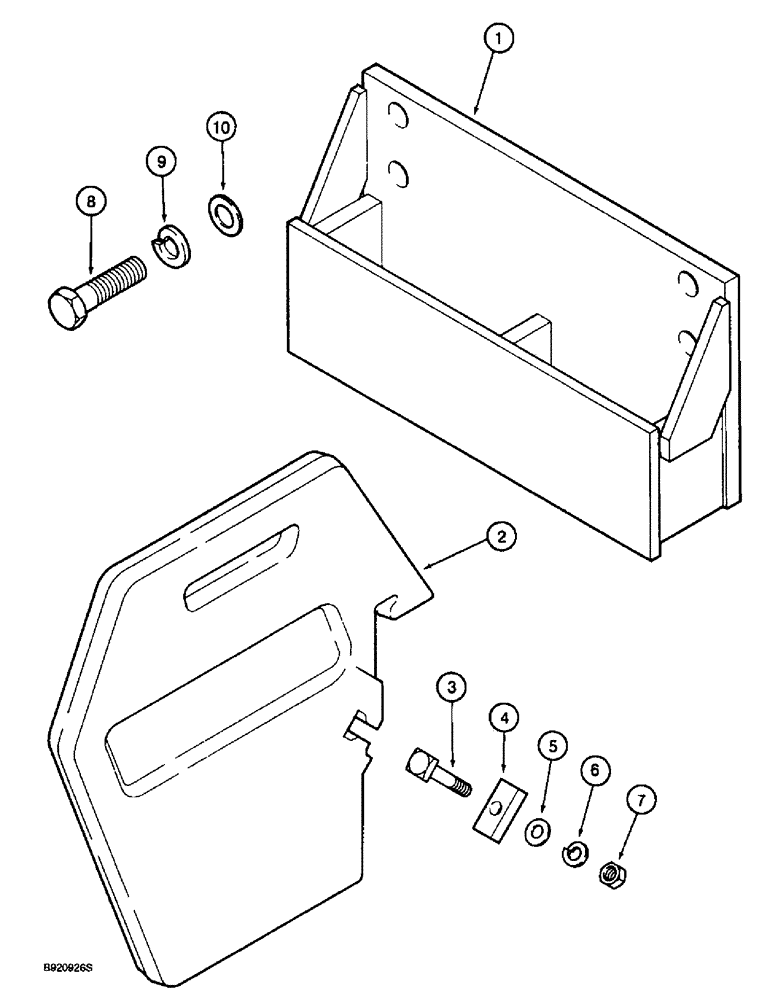

Запчасти Case IH 2055 (9F-26) - WEIGHTS AND BRACKETS (12) - CHASSIS

1

1979747C2

SUPPORT

BRACKET - weight

1шт.

2

1347524C1

WEIGHT

- front, order 1348233C1 or A67894 weight from Machinery Price List, 100 pound (45.36 kg) (Qty. 6-12)

1шт.

3

A169139

SQUARE BOLT

- square head, special, 1/2 NC x 3-1/4 inch

2шт.

4

A145919

CLAMP

- weight

2шт.

5

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

8

30115R1

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

- hex, special, class 10.9

4шт.

9

892-12024

LOCK WASHER,M24

WASHER - lock, 24 mm

4шт.

10

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

- flat, 26 ID x 44 x 5 mm, hardened

4шт.
