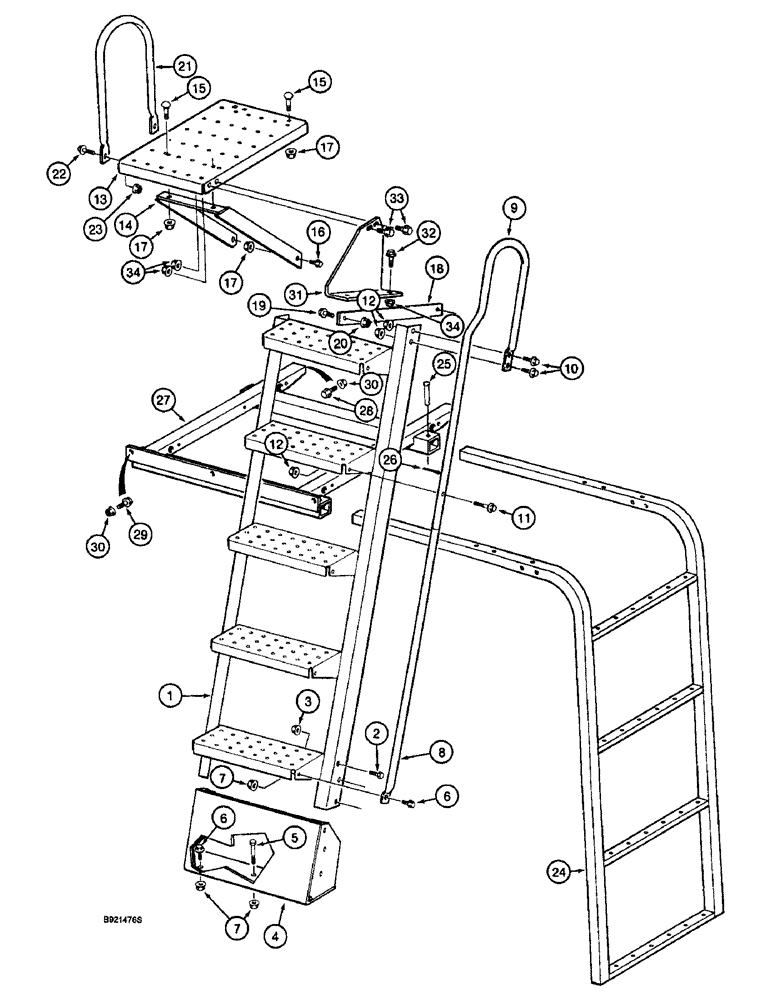

Запчасти Case IH 2055 (9F-24) - STEPS AND LADDERS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
1546378C1
LADDER
- basket access
1шт.
2
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
8шт.
3
231-5146
FLANGE NUT,3/8"-16
8шт.
4
1988812C1
SUPPORT
- lower, ladder
1шт.
5
413-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
4шт.
6
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
1шт.
7
231-5146
FLANGE NUT,3/8"-16
5шт.
8
1988817C1
GRAB RAIL
HANDRAIL - lower
1шт.
9
1988818C1
GRAB RAIL
HANDRAIL - upper
1шт.
10
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
3шт.
11
409-7632
BOLT,Hex Flg, 3/8" - 16 x 2", Spcl
- hex serrated flange, 3/8 NC x 2 inch
1шт.
12
231-5146
FLANGE NUT,3/8"-16
4шт.
13
1278720C4
PLATFORM
- operators
1шт.
14
1988842C1
BRACE
- platform
1шт.
15
434-620
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd
4шт.
16
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
2шт.
17
231-5146
FLANGE NUT,3/8"-16
6шт.
18
1285388C1
SUPPORT
- ladder handrail
1шт.
19
409-7612
BOLT,3/8"-16 x 1.09" OAL
- hex serrated flange, 3/8 NC x 3/4 inch
2шт.
20
231-5146
FLANGE NUT,3/8"-16
2шт.
21
87138C1
RAIL ASSY.
HANDRAIL - platform
1шт.
22
409-7612
BOLT,3/8"-16 x 1.09" OAL
- hex serrated flange, 3/8 NC x 3/4 inch
2шт.
23
231-5146
FLANGE NUT,3/8"-16
2шт.
24
1988663C3
LADDER
- access (Replaces ladder 1988663C2)
1шт.
25
21814R1
HEADED PIN,1/2" x 3"
PIN - clevis, 1/2 x 3 inch
2шт.
27
1545968C2
SUPPORT
- ladder (Replaces support 1545968C1)
1шт.
28
409-7816
BOLT,Hex Flg, 1/2" - 13 x 1", Spcl
- hex serrated flange, 1/2 NC x 1 inch
2шт.
29
409-7820
BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl
3шт.
30
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
5шт.
31
1988820C1
ANGLE
- upper ladder, if used
1шт.
32
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
If used Hex Flg, 3/8"-16 x 1", Serr
2шт.
33
409-7612
BOLT,3/8"-16 x 1.09" OAL
- hex serrated flange, 3/8 NC x 3/4 inch, If used
2шт.
34
231-5146
FLANGE NUT,3/8"-16
If used Flg, USR, 3/8"-16
4шт.
