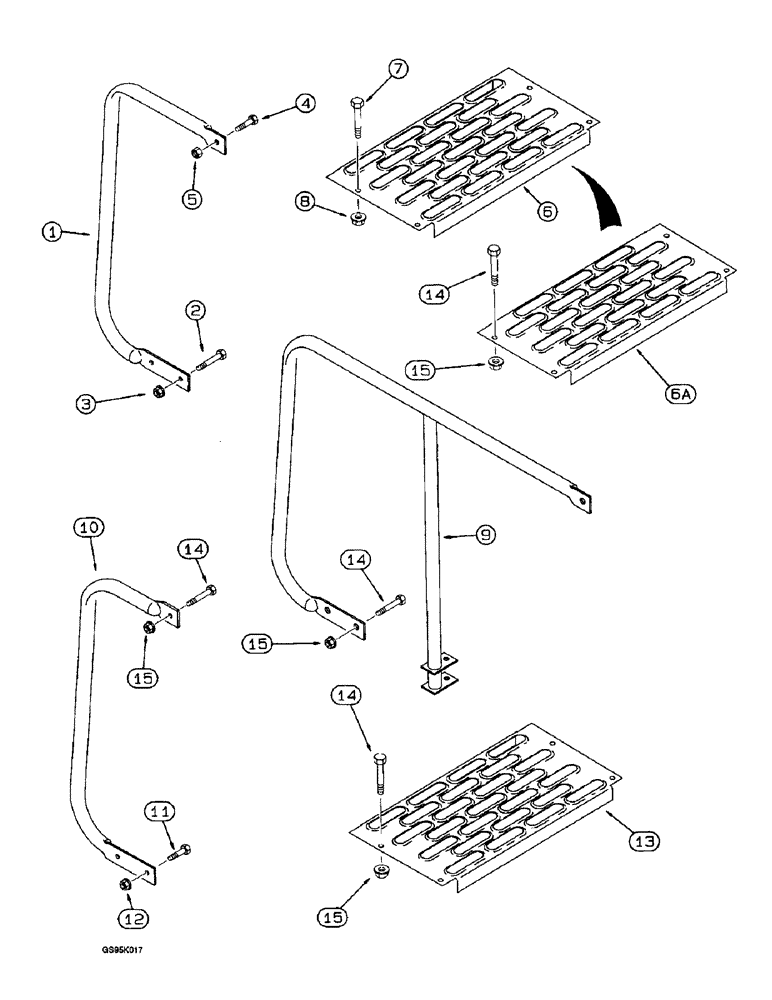

Запчасти Case IH 2055 (9F-23C) - ACCESS STEP HANDRAILS & TREADS (12) - CHASSIS

1

1546435C1

RAMP

HANDRAIL - access step

1шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

5

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

6

1546431C1

STEP

TREAD - step, access, if used

1шт.

6a

180803A1

STEP

TREAD - step, access, if used

1шт.

7

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

4шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

9

113042A1

HANDRAIL

- step, access

1шт.

10

140669A1

RAMP

HANDRAIL - step, access, front

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

12

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

13

1546431C1

STEP

TREAD - step, access

3шт.

14

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

12шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

12шт.
