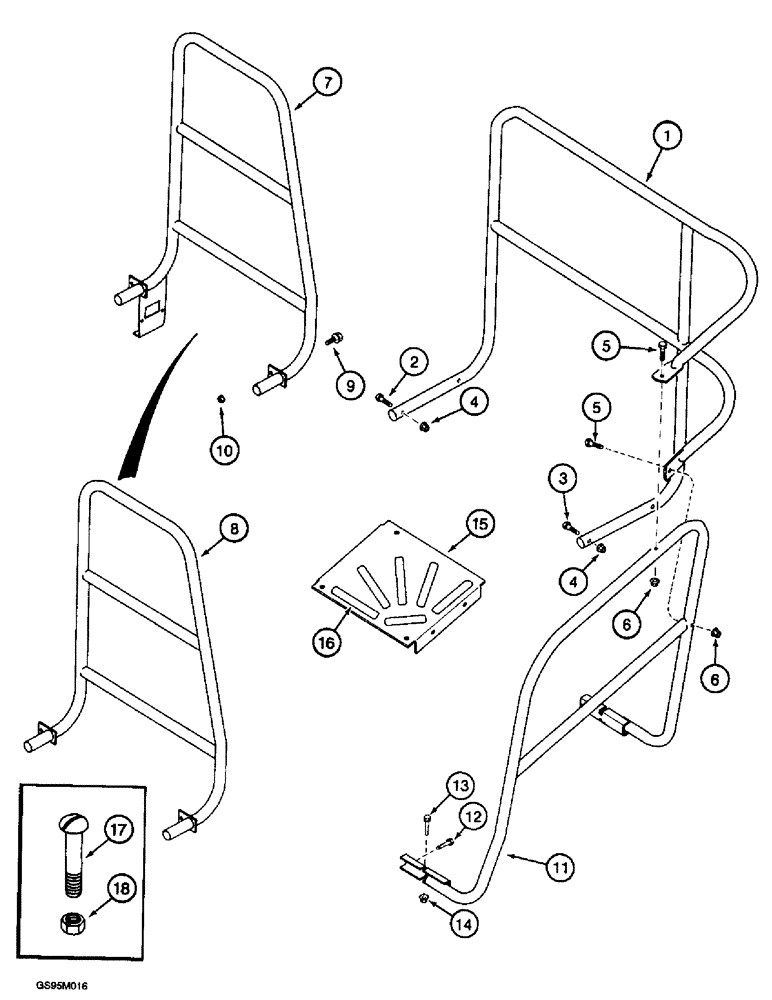

Запчасти Case IH 2055 (9F-23A) - HANDRAILS (12) - CHASSIS

1

1988863C1

GRAB RAIL

HANDRAIL - extension, 4 Row Wide, 5 Row Narrow

1шт.

1

140119A1

RAIL

HANDRAIL - extension, 5 Row Wide

1шт.

2

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - carriage, 3/8 NC x 2-1/4 inch

2шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

6

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

7

1545972C2

TUBE

HANDRAIL - platform, if used

1шт.

8

1545972C3

GRAB RAIL

HANDRAIL - platform, if used

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

1988677C2

GRAB RAIL

HANDRAIL - platform (Replaces handrail 1988677C1)

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

13

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

2шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

124405A1

LARGE PLATE

PLATE ASSEMBLY - platform filler

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - platform filler

1шт.

16

D55216

PAD,2" x 9"

PAD - non-slip

6шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

SCREW - hex head flange, 3/8 x 3/4 inch

1шт.

18

231-5146

FLANGE NUT,3/8"-16

1шт.
