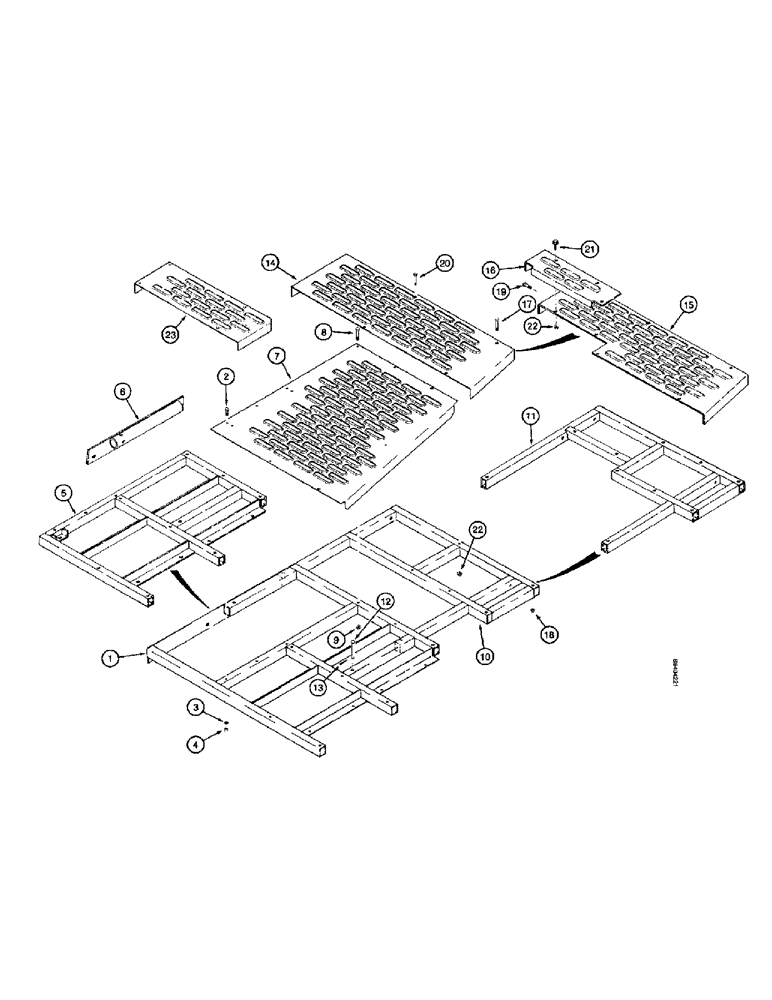

Запчасти Case IH 2055 (9F-22) - PLATFORM EXTENSION (12) - CHASSIS

1

1988667C1

SUPPORT ASSY.

SUPPORT - operators platform, no longer available, for service order item 5, 117039A1 support and item 6, 1546417C1 plate

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

3

492-11038

LOCK WASHER,3/8"

8шт.

4

425-106

NUT,3/8"-16, Cl 5

8шт.

5

117039A1

SUPPORT ASSY.

SUPPORT - operators platform

1шт.

6

1546417C1

PLATE

- operators platform, rear mount

1шт.

7

1988676C1

GRATING

TREAD - platform extension, fixed inner

1шт.

8

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

5шт.

9

231-5146

FLANGE NUT,3/8"-16

5шт.

10

1988858C1

PLATE

PLATFORM - extension, no longer available, for service order item 11, 117042A1 platform

1шт.

11

117042A1

SUPPORT ASSY.

PLATFORM - extension

1шт.

12

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

PIN - headed, 1/2 x 2-1/4 inch (Replaces pin 21150R1)

2шт.

13

586591R1

COTTER PIN

PIN - hair, 1/8 inch

2шт.

14

1988862C1

GRATING

TREAD - platform extension, outer, if used

1шт.

15

108457A1

GRATING

TREAD - platform extension, outer, if used

1шт.

16

1546421C1

GRATING

TREAD - platform extension, with five slotted openings, if used

1шт.

17

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

2шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

19

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - carriage, 3/8 NC x 2-1/4 inch

2шт.

20

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

21

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

22

231-5146

FLANGE NUT,3/8"-16

6шт.

23

127215A1

TREAD

- extension, tread, 40 inch row, 5 Row Wide

1шт.
