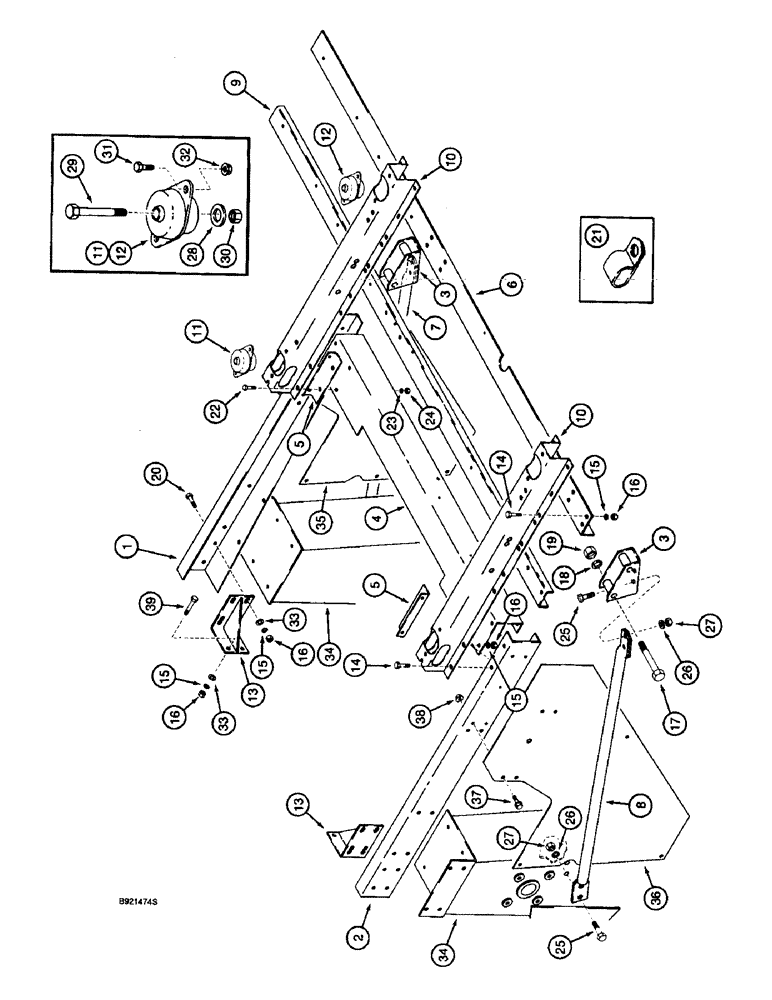

Запчасти Case IH 2055 (9F-20) - CAB AND PLATFORM SUPPORT (12) - CHASSIS

1

1983125C2

CHANNEL

- main cab support, left-hand (Replaces channel 1983125C1)

1шт.

2

1983126C2

SUPPORT ASSY.

CHANNEL - main cab support, right-hand (Replaces channel 1983126C1)

1шт.

3

1990470C1

SUPPORT

CHANNEL - main, side

2шт.

4

1984293C2

SUPPORT ASSY.

CHANNEL - horizontal cab support (Replaces channel 1984293C1)

1шт.

5

1270233C2

ANGLE BAR

BRACKET - channel support (Replaces bracket 1270233C1)

2шт.

6

1988846C1

SUPPORT ASSY.

SUPPORT - front bracket

1шт.

7

1984012C1

GRAB RAIL

PIPE - cab support, left-hand

1шт.

8

1984013C1

GRAB RAIL

PIPE - cab support, right-hand

1шт.

9

1988847C1

SUPPORT ASSY.

SUPPORT - rear channel

1шт.

10

195507C6

SUPPORT

- operators platform, side

2шт.

11

196950C2

MOUNTING PARTS

INSULATOR - vibration, rear

2шт.

12

117722C4

INSULATOR

- vibration, front

2шт.

13

86867C2

BRACKET

- front mast

2шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

32шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

46шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

46шт.

17

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

4шт.

18

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

19

25-1012

NUT,3/4"-10, G5

4шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

10шт.

21

1301387C2

CLIP

CLAMP - square, 2 inch ID, hose

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

425-106

NUT,3/8"-16, Cl 5

4шт.

25

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

26

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

27

425-1010

NUT,5/8"-11, G5

8шт.

28

196591C1

WASHER

- flat, special

4шт.

29

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex, 3/4 NC x 4-3/4 inch

4шт.

30

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

4шт.

31

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

32

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

33

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

12шт.

34

1984041C8

FRAME

- main, includes decals (Replaces frame 1984041C7)

1шт.

35

1990444C1

SHIELD

- tower, left-hand, 4 Row Wide and 5 Row Narrow

1шт.

36

1990445C2

SHIELD

- tower, right-hand, 4 Row Wide and 5 Row Narrow

1шт.

37

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch, Used with items 35 and 36 shields

14шт.

38

231-5146

FLANGE NUT,3/8"-16

Used with items 35 and 36 shields Flg, USR, 3/8"-16

14шт.

39

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.
