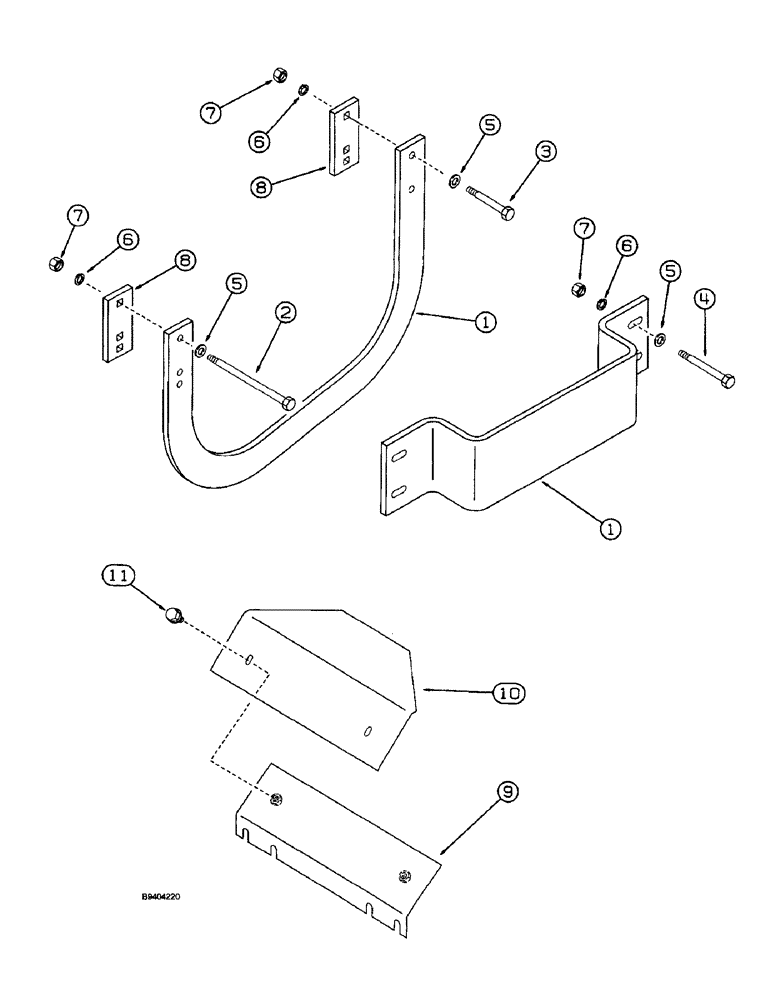

Запчасти Case IH 2055 (9F-17A) - MUD SCRAPERS (12) - CHASSIS

1

1546386C2

SUPPORT

SECTION - mud scraper, 4 Row Wide

2шт.

1

144557A1

SUPPORT

SECTION - mud scraper, 5 Row Narrow

2шт.

2

413-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

- hex, 1/2 NC x 7-1/2 inch

4шт.

3

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch, 4 Row Wide and 5 Row Narrow

4шт.

4

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch, 5 Row Narrow, 90 inch wheel spacing

4шт.

5

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch, 8 used on 4 Row Wide

24шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 8 used on 4 Row Wide 1/2"

24шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

24шт.

8

215520C3

LARGE PLATE

BAR - mud blade, 6 used on 90 inch wheel spacing, 5 Row Narrow

2-6шт.

9

123970A1

SUPPORT

- shield, upper, 80 inch wheel spacing, 4 Row Wide

2шт.

10

123972A1

SHIELD

- mud, upper, 80 inch wheel spacing, 4 Row Wide

2шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, 80 inch wheel spacing, 4 Row Wide

4шт.
