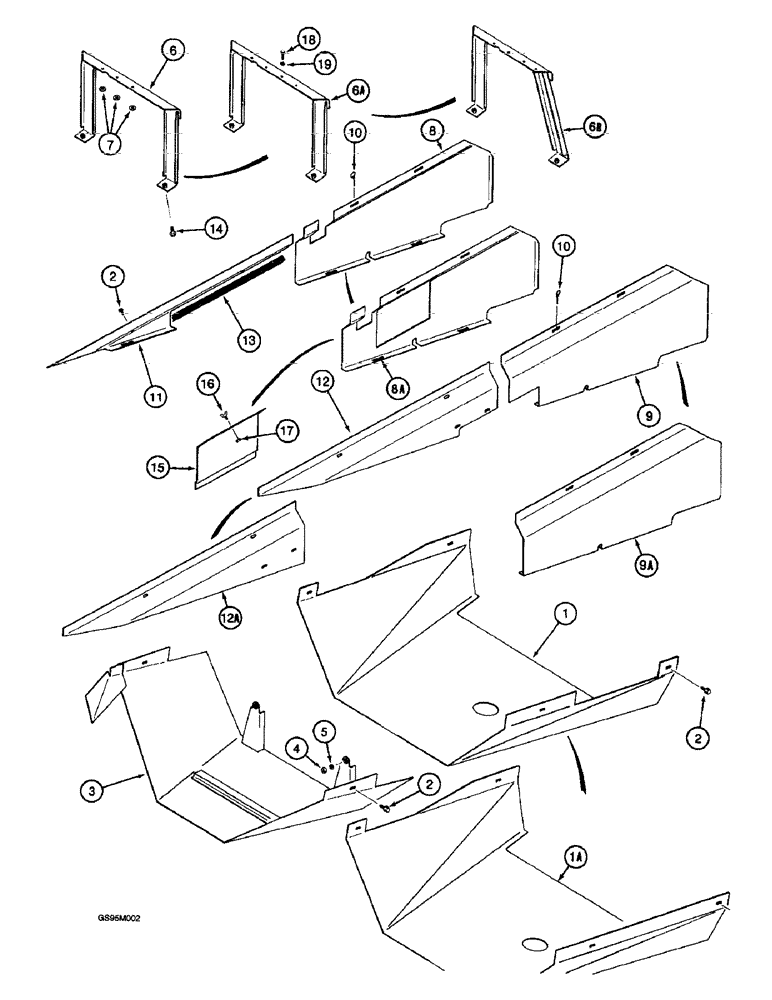

Запчасти Case IH 2055 (9F-16) - PLANT GUARD, PAN, COVERS, AND MUD SHIELDS (12) - CHASSIS

1

1988694C3

HOUSING

PAN - engine plant guard, right-hand, if used

1шт.

1a

116525A1

HOUSING

PAN - engine plant guard, right-hand, if used

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

10шт.

3

1988770C3

HOUSING

PAN - radiator plant guard

1шт.

4

425-1010

NUT,5/8"-11, G5

2шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

1546138C1

SUPPORT ASSY.

SUPPORT - plant guard, no longer available, order 1546138C4 support

1шт.

6a

1546138C2

SUPPORT ASSY.

SUPPORT - plant guard, no longer available, order 1546138C4 support

1шт.

6b

1546138C4

SUPPORT

- plant guard, angled support (Replaces support 1546138C3)

1шт.

7

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

8

1990100C2

SHIELD

- mud, lower front, left-hand, if used

1шт.

8a

1990100C4

SHIELD

- mud, lower front, left-hand, if used

1шт.

9

1990101C3

SHIELD

- mud, lower, right-hand, replaces 1990101C2 shield, prior to P.I.N. JJC155051

1шт.

9a

119136A1

HOUSING

SHIELD - mud, lower, right-hand, P.I.N. JJC155051 and after

1шт.

10

A33497

LINCH PIN,4.76mm OD Pin

PIN - snap lock

4шт.

11

1546399C2

COVER

- rear, left-hand

1шт.

12

1546400C2

COVER

- rear, right-hand, if used

1шт.

12a

116526A1

COVER

- rear, right-hand, if used

1шт.

13

98130C2

SEAL

TRIM - valve box support, edge, 27 inch (686 mm) long, cut from 1330108CX bulk trim, see below

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

15

119613A1

TRAP DOOR

DOOR - access, mud shield

1шт.

16

488837C1

SPRING NUT

- speed, 5/16 inch NC, access door

1шт.

17

183-123

THUMB SCREW

- thumb with shoulder, 5/16 NC x 3/4 inch (Replaces screw 176978C1)

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

19

492-11038

LOCK WASHER,3/8"

1шт.

1330108CX

SEAL,304.8mm L

TRIM - bulk, edge, 600 inch (15240 mm) long

1шт.
