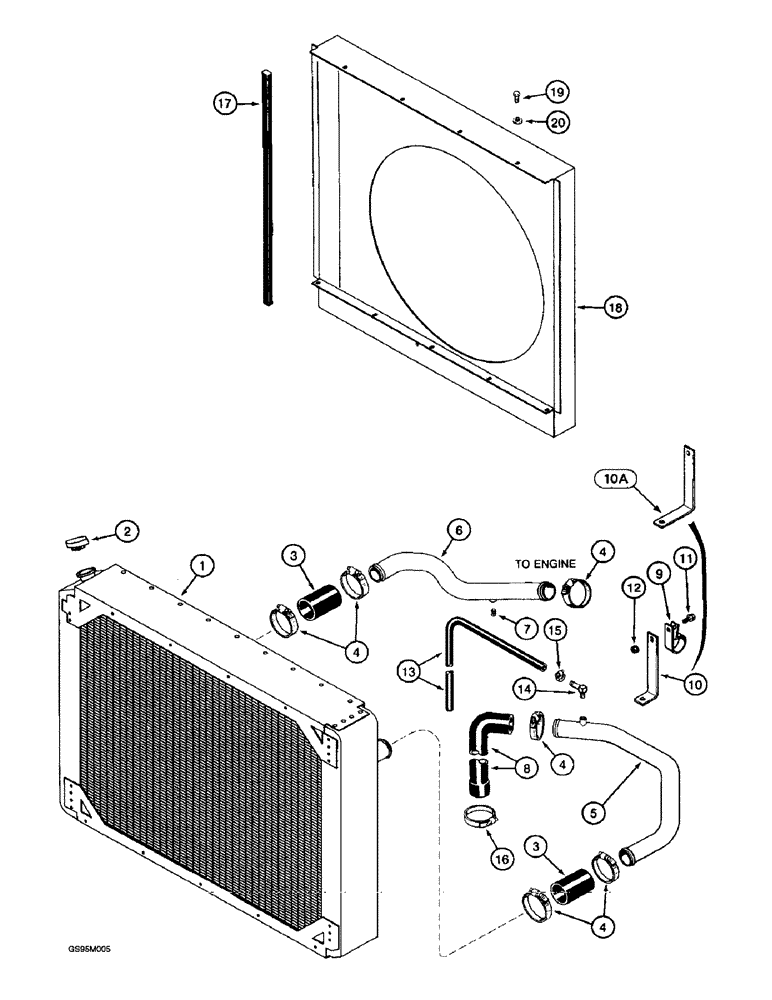

Запчасти Case IH 2055 (2-02) - RADIATOR AND FAN SHROUD (01) - ENGINE

1

84578C3

RADIATOR

- engine cooling

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

1329393C1

RADIATOR HOSE,50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

Straight 50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

2шт.

4

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP - adj, hose, No. 32, type F

6шт.

5

1338670C2

TUBE,605, 50 mm Length

- coolant, engine out, upper

1шт.

6

1983183C1

TUBE

- inlet, water

1шт.

7

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.

8

1983182C1

RADIATOR HOSE,50.80 mm ID, 56.00 mm ID x 199.00 mm, SAE 20R4 Class D-1

Elbow, Out, Upper 50.80 mm ID, 56.00 mm ID x 199.00 mm, SAE 20R4 Class D-1

1шт.

9

26082R1

CLAMP,2", 1/4" Bolt

- P-type, 2 inch ID, closed

1шт.

10

1338671C4

SUPPORT

- tube, out, if used

1шт.

10a

189892A1

SUPPORT TUBE

SUPPORT - tube, out, if used

1шт.

11

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

1шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

13

1983181C1

HOSE,9.5mm ID x 360mm L, SAE 20R3

Vent 9.50 mm ID x 360.00 mm, SAE J20, SAE J30, SAE 20R3 Class D1, SAE 30R7

1шт.

14

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 90 degree, 3/8 stem end x 1/4 inch PT

1шт.

15

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

CLAMP, HOSE, , Adjustable (Replaces clamp 27861R1) #6, 0.44/0.78 Type M Worm

2шт.

16

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

CLAMP - adj, 2-1/16 - 3 inch dia

1шт.

17

1984054C2

GASKET

- foam, adhesive-backed, 32 inch (813 mm) long, cut from 87084C1 bulk seal, replaces 1984054C1 seal (30.6 inch)

2шт.

18

1546262C2

SHROUD

- fan

1шт.

19

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

20

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

5шт.

87084C1

SEAL

- foam, adhesive-backed, 600 inch (15240 mm) long

1шт.
