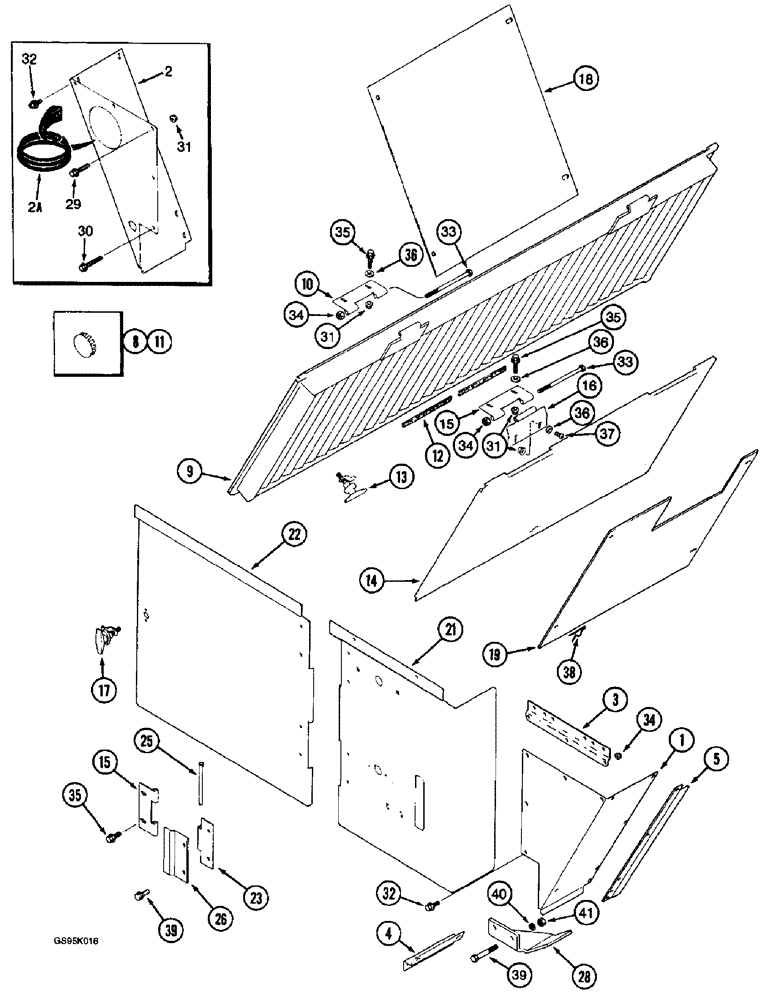

Запчасти Case IH 2055 (9F-10) - SIDE SCREENS AND DOORS (12) - CHASSIS

1

1278928C1

COVER

- rear inner, right-hand

1шт.

2

1278927C1

COVER

- rear inner, left-hand

1шт.

2a

87063C2

STRIP

TRIM - cover, edge, 16-5/16 inch (414 mm) long, cut from 1330108CX bulk trim, see below

1шт.

3

1278812C1

SUPPORT

- upper cover

2шт.

4

1278813C3

SUPPORT

- cover, lower (Replaces support 1278813C2)

2шт.

5

1983135C1

SUPPORT

BAR - screen frame, right-hand

1шт.

5

1983134C1

SUPPORT

BAR - screen frame, left-hand, not shown

1шт.

8

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16 inch

1шт.

9

1990167C3

FILTER

CLEANER - rear (Replaces cleaner 1990167C2)

2шт.

10

1338422C1

HINGE

- screen, upper half

4шт.

11

353-404

PLUG,Dome, .500" hole, Nylon

8шт.

12

87059C2

SEAL

TRIM - rear cleaner, edge, 168 inch (4268 mm) long, cut from 1263038C1 bulk trim, see below

2шт.

13

1990265C1

HANDLE

LATCH - cleaner

4шт.

14

1990274C1

DOOR

- engine compartment

2шт.

15

1990187C2

HINGE

- upper half (Replaces hinge 1990187C1)

6шт.

16

1990197C1

HINGE

- door, front

4шт.

17

1990266C1

HANDLE

LATCH - door

4шт.

18

1990121C2

COVER

- fan shield, right-hand

1шт.

19

1990120C3

LARGE PLATE

COVER - fan shield, left-hand (Replaces cover 1990120C2)

1шт.

21

1990182C2

GUARD

SHIELD - carriage roller, right-hand

1шт.

21

1990170C2

GUARD

SHIELD - carriage roller, left-hand, not shown

1шт.

22

1990158C1

SHEET

PANEL - door, fuel tank access

1шт.

23

1990317C2

HINGE

- rear door (Replaces hinge 1990317C1)

2шт.

25

1349860C1

PIN,7.94mm OD x 129mm L

- hinge

2шт.

26

1990318C1

LARGE PLATE

PLATE - door stop

1шт.

28

1288805C1

DEFLECTOR

- rear corner, right-hand

1шт.

28

1288804C1

DEFLECTOR

- rear corner, left-hand, not shown

1шт.

29

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

8шт.

30

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

- hex serrated flange, 5/16 NC x 1-1/2 inch

2шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

61шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

33

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

- hex, 5/16 NC x 6 inch

8шт.

34

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

35

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

31шт.

36

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

16шт.

37

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

8шт.

38

586591R1

COTTER PIN

PIN - hair, 1/8 inch

8шт.

39

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

40

492-11038

LOCK WASHER,3/8"

4шт.

41

425-106

NUT,3/8"-16, Cl 5

4шт.

1330108CX

SEAL,304.8mm L

TRIM - bulk, edge, 600 inch (15240 mm) long

1шт.

1263038C1

SEAL,7620mm L

- bulk, 300 inch (7620 mm) long

1шт.
