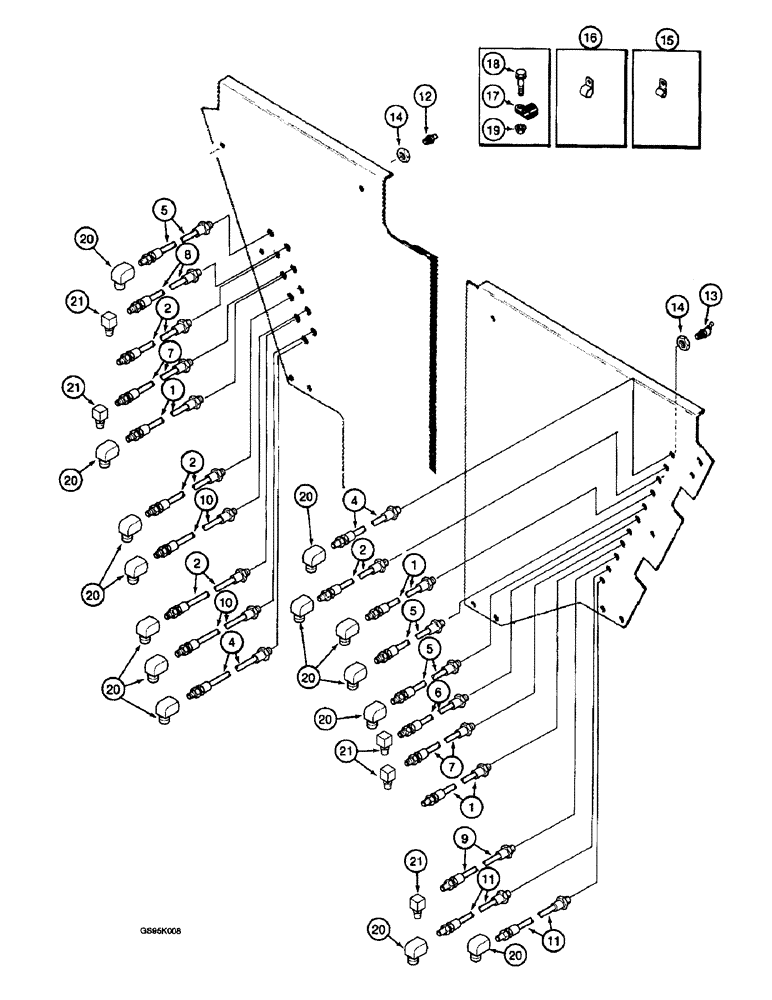

Запчасти Case IH 2055 (9F-03A) - CHASSIS SYSTEM, WITHOUT SUPPORT, ITEM 1, PAGE 9F-2 (12) - CHASSIS

1

1339003C1

TUBE,2032 mm L

HOSE - grease, 80 inch (2032 mm) long

3шт.

2

1339002C1

TUBE,2388 mm L

HOSE - grease, 94 inch (2388 mm) long

4шт.

3

1345098C1

HOSE

- grease, 60 inch (1524 mm) long, no longer used, not shown

1шт.

4

1339091C1

HYDRAULIC HOSE,3.17mm ID x 2718mm L

- grease, 107 inch (2718 mm) long

2шт.

5

1339004C1

HOSE,3.17mm ID x 1778mm L

- grease, 70 inch (1778 mm) long

3шт.

6

937782R92

HOSE,3.02mm ID x 787mm L

Grease 3.56 mm ID x 787.00 mm

1шт.

7

1339231C1

TUBE,737 mm Length

HOSE - grease, 29 inch (737 mm) long

2шт.

8

1339006C1

TUBE,914 mm L

HOSE - grease, 36 inch (914 mm) long

1шт.

9

1339005C1

TUBE,1321 mm L

HOSE - grease, 52 inch (1321 mm) long

1шт.

10

121051A1

HOSE,3.17mm ID x 3302mm L

- Grease 3.02 mm ID, 3.56 mm ID x 3302.00 mm

2шт.

11

121052A1

HOSE,3.02 mm ID, 3.56 mm ID x 3048.00 mm

3.02 mm ID, 3.56 mm ID x 3048.00 mm

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

11шт.

13

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch

11шт.

14

F53473

LOCK NUT,1/8-27 NPSM

- special, lubrication hoses

22шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, lubrication hoses

3шт.

16

362666R1

CLIP

CLAMP - retaining, lubrication hoses

4шт.

17

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type 1 1/2", Insul, 1/2" Bolt

2шт.

18

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

19

231-5146

FLANGE NUT,3/8"-16

2шт.

20

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street (Replaces elbow 9409931) 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

15шт.

21

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 90 degree, special

5шт.
